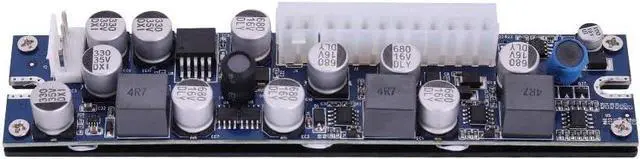

Aatraay Power SFX Power Supply 16×9×4 Ld - 200W 19V Dc Input Pin Power Module Dc - ATX Power Supply Dc 24Pin ATX to 12V Aux for Computer

Fanless design, solid Polymer Caps on the PCBA, long life. Perfect DC PSU for Motherboards, high performance with high heat-mode feature, more reliable. Adopt industrial solid capacitor, ideal for being used in rough environment.
Features:
1. Fanless design, 100% silent.
2. High Quality Polymer Caps on the PCBA, Long life.
3. Perfect DC PSU for mini ITX Motherboards.
4. Overvoltage Protection: when the output voltage reaches 1.5 times the rated voltage, the output is closed.
5. Short Circuit Protection: when a short circuit occurs in the output, the output is closed.
Specifications:
Condition: 100% Brand New
Module Size: Approx. 155 * 35 * 20 mm / 6.1 * 1.3 * 0.7 in
Input Characteristics:
Input Voltage Range: 16VDC - 24VDC
Input Current Range: 12.0A Max @19VDC
Input Surge Current: 12.0AMax @19VDC
Work Efficiency: 85% or more
Output Requirement: Output (Vin=19VDC)
ItemOutput VoltageOutput Current
Minimum(V)Typical Value(V)Maximum(V)Ripple wave(mV)Standby currentTypical valuePeak value
+3.30V+3.14 +3.30 +3.47 50 08.010.0
+5.00VSB+4.75 +5.00 +5.25 50 0.122.5
+5.00V+4.75 +5.00 +5.25 50 06.010.0
+12.00V+11.40 12.00 +12.6 120 06.08.0
-12.00V-11.40 -12.00 -12.6 120 00.10.15Protection Function:
(For +3.3v, +19V, +5.00v and +5.00VSB Power Output)
Overvoltage Protection: when the output voltage reaches 1.5 times the rated voltage, the output is closed.
Short Circuit Protection: when a short circuit occurs in the output, the output is closed.
Environment Description:
Working Temperature/Humidity: 0°C to 40°C / 45% - 75%
Storage Temperature/Humidity: - 40°C to +70°C / 10% - 90%
Atmospheric Pressure: 86Kpa -- 106Kpa
Package Included:
1 x Power Module
1 x 24pin ATX to 12V AUX
1 x 4 pin Molex Power Supply
1 x SATA Power
1 x 4 pin Floppy Drive Power Connection
1 x 4 pin Wire
1 x DC Input Wire
