Programmable Power Supply Module, Reduced Voltage Power Supply, for Independent Use Industrial(DPS5005)

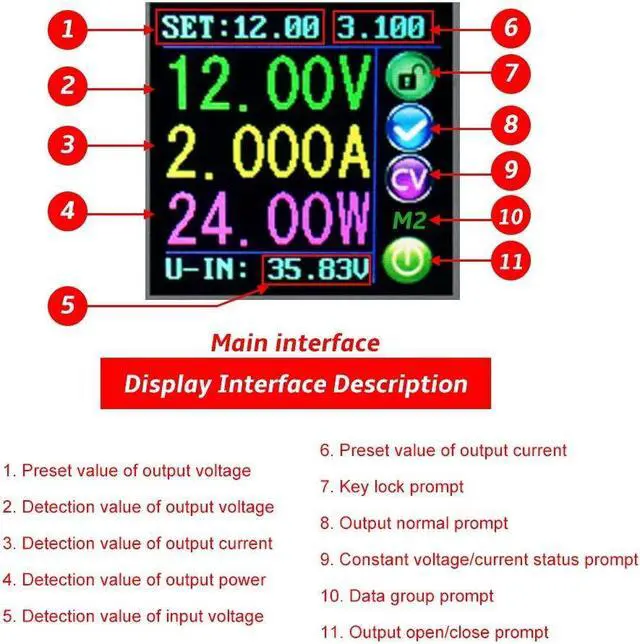

This constant voltage and constant currentprogrammable control power supply module makes analog integration and digitalcontrol functions combined in one. It has power-down storage function, which canstore 10 groups of preset value and quickly extract two groups of stored value.Compared with traditional power supply module, it is more convenient to quicklyextract the voltage or current required. Integrated with the function voltmeterand ammeter, it shows real time voltage and current clearly on the LCD screen. This module features small size, advanced function, goodvisual effect, strong operability, high accuracy, independent use, embeddeduse and more.

Features:
1. The product is small in volume, advanced infunction, good in effect, strong in maneuverability and high in accuracy.
2. Open or close the output: You can press theON/OFF button to open or close the output on any interface.
3. Lock the button to avoid wrong operation: On anyinterface, you can keep pressing coding potentiometer for 2 seconds, allbuttons are locked. Keep pressing coding potentiometer for 2 seconds to unlockall buttons. You can see the key lock/unlock icon on the right of the screen.
4. M0-M9 ten data groups: M0 group is the bootdefault data group. When you extract the data group you need, this data groupwill cover M0 data group and be automatically stored on M0 data group.
5. You can quickly extract shortcut storage data groupM1 or M2 and extract the specified data group.

Specification:

Model (Optional) DPS3005
DPS5005
Input Voltage Range DC 6-40V DC 6-55V Output Voltage Range 0-32.00V 0-50.00V Output Current Range 0-5.000A Ou
