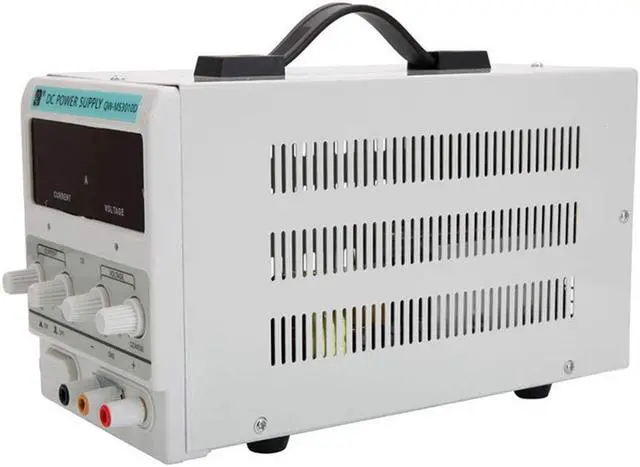

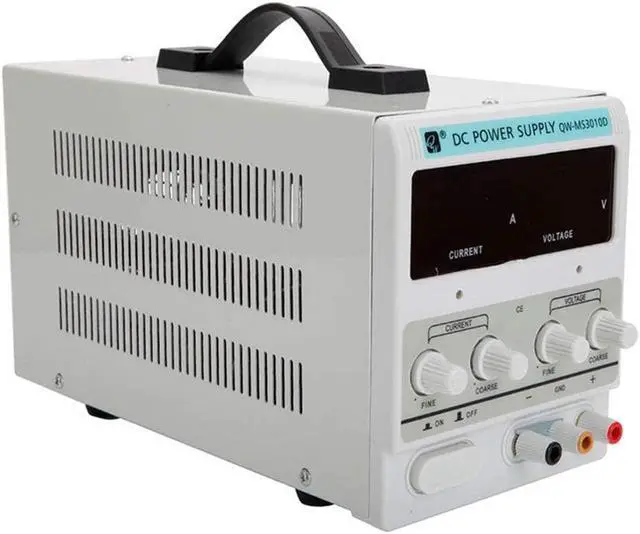

110V Adjustable DC Power Supply QW-MS3010D 30V 5A 150W

110V Adjustable DC Power Supply QW-MS3010D 30V 5A 150W

Features:
Thicker steel chassis, nice, durable, handle design, easy handling
Voltage and current are used coarse and fine design, precise adjustment of the output voltage
Constant pressure, constant current automatic conversion, when the constant voltage source can also be used as a constant current source
Protection function perfect: OVP, OCP, OTP
Line design is reasonable, the key components imported, can be used 24 hours full load
PWM switch pre-regulator, MOS linear adjustment mode, high efficiency, energy saving, close to linear power performance, efficiency is much higher than the linear power supply, linear power supply replacement products
Intelligent temperature control fan, adjust the speed according to the load, effectively reduce noise and extend the life of the fan

Parameters:
Input voltage: 110V 60Hz
Output voltage: DC 0-30V continuously adjustable
Output current: DC 0-5A continuously adjustable
Display resolution: voltage 0.1V, current 0.1A
Display accuracy: ± 1%
Voltage stability: 0.05% + 1mV
Current stability: 0.1% + 10mA
Load stability: CV 0.1% + 1mV CC 0.1% + 10mA
Ripple and noise: CV 10mV (RMS) CC 20mA (RMS)
Cooling: intelligent temperature control fan forced air cooling, fans above 40 start, fans below 35 stop
Working environment -10~40 Relative humidity <80%
Storage environment -20~ 80 Relative humidity <80%
Appearance size: 260*125*155mm
Weight: 3kg

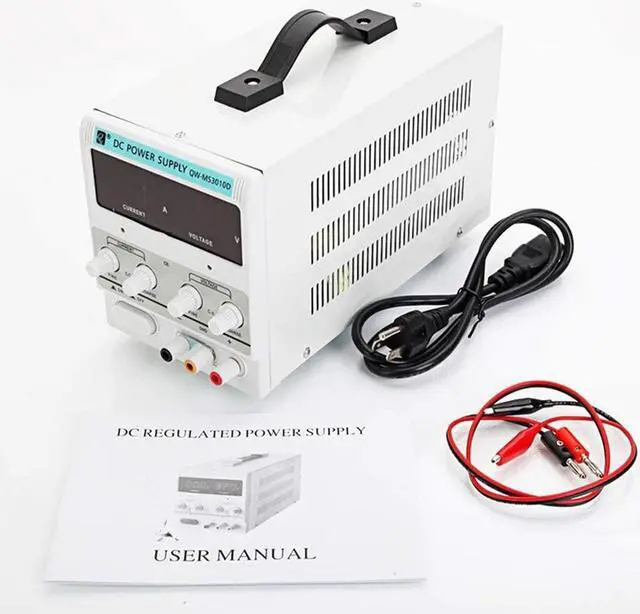

Package includes:
1 x 110V Adjustable DC Power Supply
