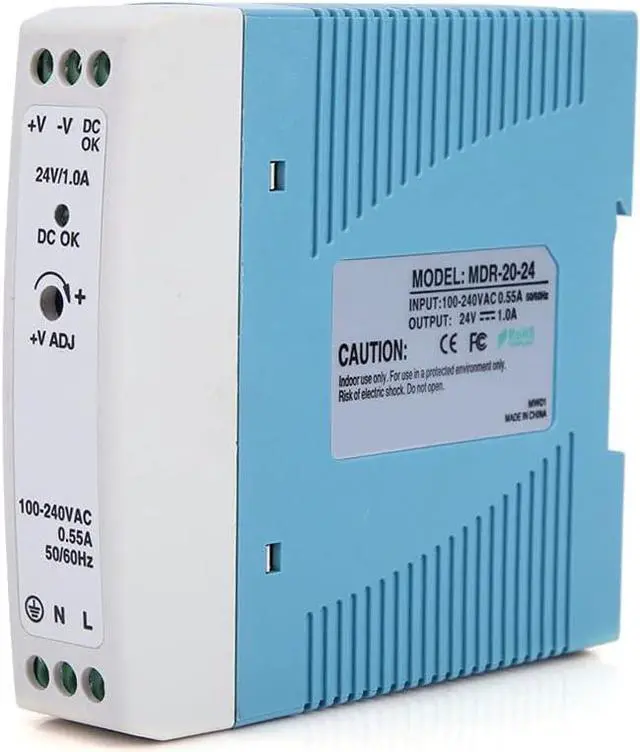

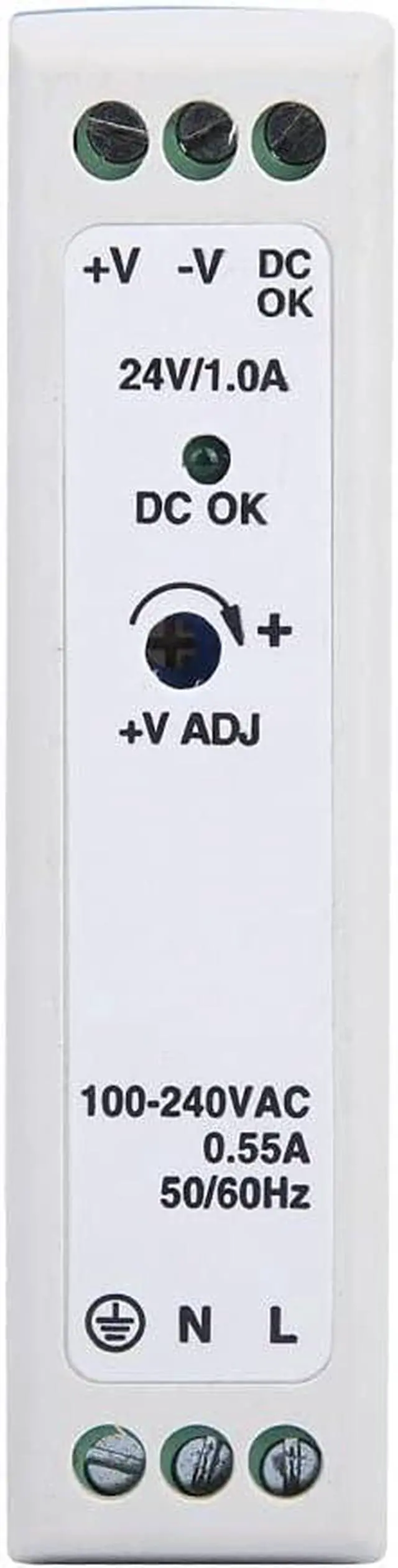

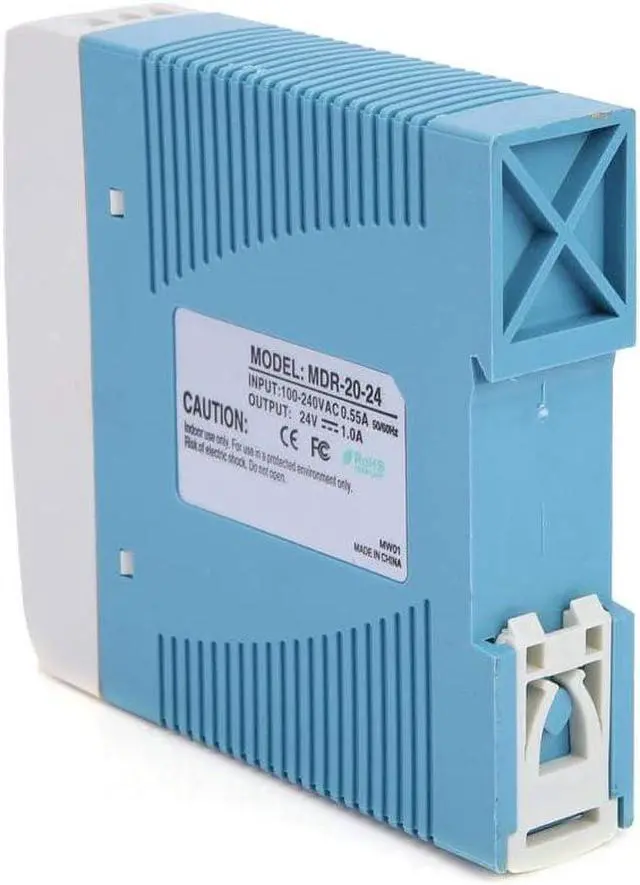

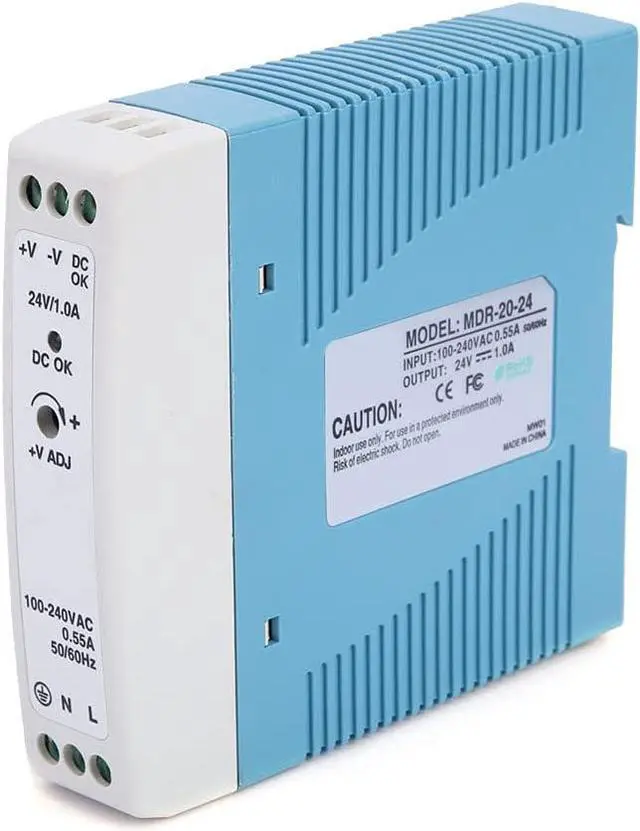

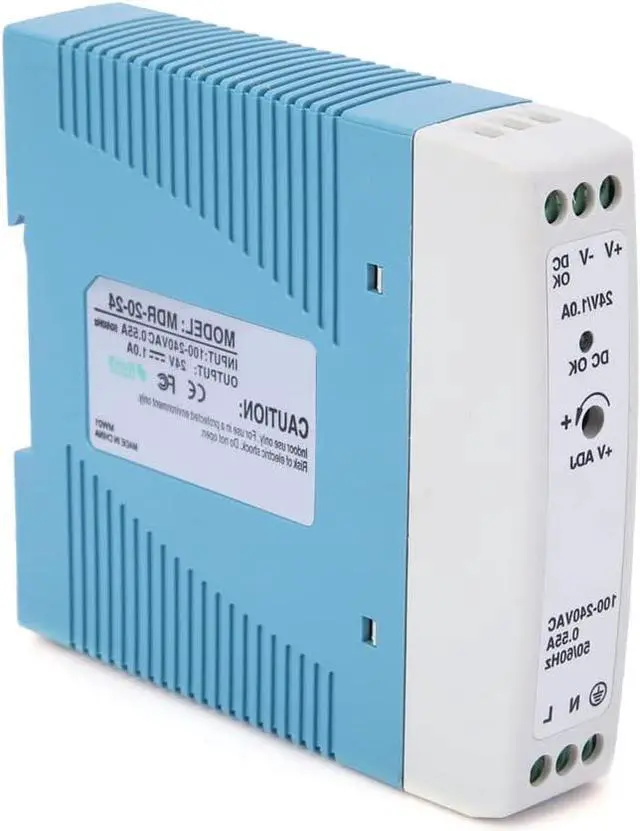

Mdr-20-24 Din Rail Power 24V Dc Power Supply Din Rail, 24V Din Rail Power Supply Supply Single Output Switch Power Supply
- Made with a plastic shell, which has high working efficiency.
- The rail power supply series, adapt to be installed on TS-35/7.5 mounting rails.
- The entire series adopts the full range AC input from 85VAC to 264VAC.
- The complete protection functions for industrial control , make MDR-20 a very competitive power supply.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
The Din rail power supply series, adapt to be installed on TS-35/7.5 mounting rails.
It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications.
The entire series adopts the full range AC input from 85VAC to 264VAC.
Made with a plastic shell, which has high working efficiency.
The complete protection functions for industrial control , make MDR-20 a very competitive power supply.
Specification:
Item Type: Din Rail Power Supply
Output voltage: DC 24V
Rated current: 1A
Current range: 0~1A
Rated power: 24W
Ripple and noise: 150mVp-p
Voltage accuracy: ±1.0%
Linear adjustment rate: ±1.0%
Load regulation rate: ±1.0%
Startup, rise time:
500ms, 30ms/230VAC
1000ms, 30ms/115VAC (at full load)
Hold time: 50ms/230VAC 20ms/115VAC (at full load)
Input voltage range: 85-264VAC/120-370VDC
Frequency range: 47-63Hz
Package list:
1 x Din Rail Power Supply
The Din rail power supply series, adapt to be installed on TS-35/7.5 mounting rails.
It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications.
The entire series adopts the full range AC input from 85VAC to 264VAC.
Made with a plastic shell, which has high working efficiency.
The complete protection functions for industrial control , make MDR-20 a very competitive power supply.
Specification:
Item Type: Din Rail Power Supply
Output voltage: DC 24V
Rated current: 1A
Current range: 0~1A
Rated power: 24W
Ripple and noise: 150mVp-p
Voltage accuracy: ±1.0%
Linear adjustment rate: ±1.0%
Load regulation rate: ±1.0%
Startup, rise time:
500ms, 30ms/230VAC
1000ms, 30ms/115VAC (at full load)
Hold time: 50ms/230VAC 20ms/115VAC (at full load)
Input voltage range: 85-264VAC/120-370VDC
Frequency range: 47-63Hz
Package list:
1 x Din Rail Power Supply
