Kulon Mean Well Original LRS-35-15 15V 2.4A meanwell LRS-35 15V 36W Single Output Switching Power Supply
- The height is only 30mm, the performance of the high-end model, the price of the economy, high efficiencylong life and reliability ,the quality assurance for three years.
- Protection Short cirsuit/ Overload/ Over voltage ;cooling by free air convection;High operating temperature up to 70.
- 100% original,We can check the serial number on the meanwell website.
- Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1.-2-16 for household applicaces
- The application fields include industrial automation equipment, industrial control system, mechanical and electrical equipment, electronic instrument and equipment, appliance application and so on.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

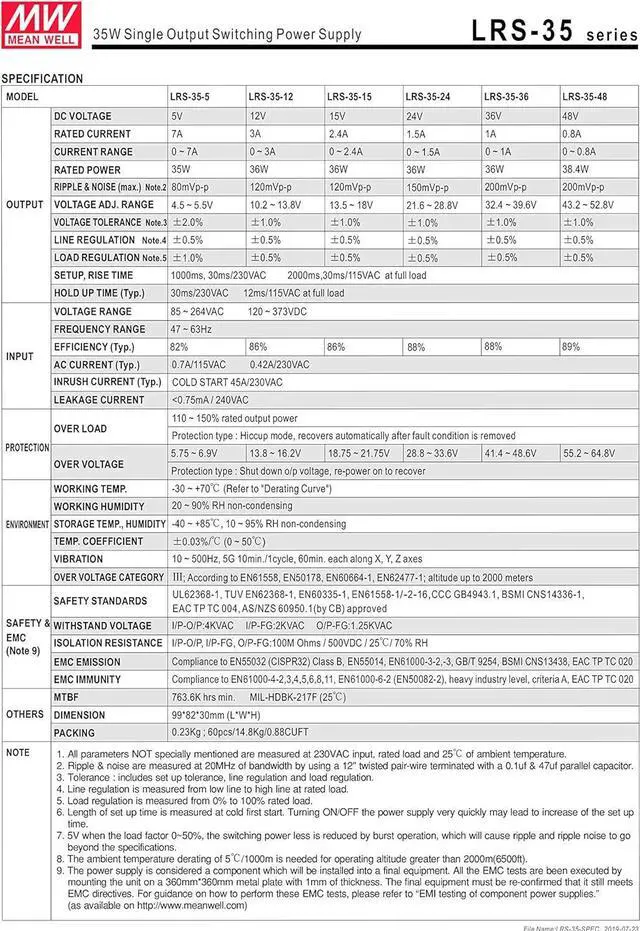

Product Details: Brand Name:Meanwell
Model Number:LRS-35-15
Output Power:35W
Output Type:Single
Input Voltage:85 ~ 264VAC/ 120 ~ 373VDC
Output Voltage:15V
Output Frequency:47 ~ 63Hz
Output Current:0~2.4A
Product Name:Switch Power Supply 15V
Dimension:99*82*30mm (L*W*H)
Protection:Overload/Over voltage
Warranty:3 years
Model:Switching power supply 15v
Efficiency:82%
Working Temperature:-30~+70
Main Features: Universal AC input / Full range
Withstand 300VAC surge input for 5 second
No load power consumption<0.2W
Miniature size and 1U low profile
High operating temperature up to 70°C
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/EN 60335-1 (PD3) and IEC/EN61558-1, -2-16 for household appliances
Operating altitude up to 5000 meters (Note.8)
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
Over voltage category III
100% full load burn-in test
3 years warranty
Applications: Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
Model Number:LRS-35-15
Output Power:35W
Output Type:Single
Input Voltage:85 ~ 264VAC/ 120 ~ 373VDC
Output Voltage:15V
Output Frequency:47 ~ 63Hz
Output Current:0~2.4A
Product Name:Switch Power Supply 15V
Dimension:99*82*30mm (L*W*H)
Protection:Overload/Over voltage
Warranty:3 years
Model:Switching power supply 15v
Efficiency:82%
Working Temperature:-30~+70
Main Features: Universal AC input / Full range
Withstand 300VAC surge input for 5 second
No load power consumption<0.2W
Miniature size and 1U low profile
High operating temperature up to 70°C
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/EN 60335-1 (PD3) and IEC/EN61558-1, -2-16 for household appliances
Operating altitude up to 5000 meters (Note.8)
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
Over voltage category III
100% full load burn-in test
3 years warranty
Applications: Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
