DC Power Supply Adjustable P4603 OWON 60V 3A Output Single Channel Linear Programmable DC Power Supply AC100-240V for SCPI and Labview RS232
- OWON P4603 Single Channel 180W Maximum Output 0-60V / 0-3A Output rangeLinear DC Power Supply
- P4603180W0 - 60V / 0 - 3A11mV / 1mA
- Load RegulationVoltage0.01%+3mV Current0.01% + 3mA Power RegulationVoltage0.01% + 3mV Current0.01% + 3mA Setting ResolutionVoltage1mV Current1mA
- Readback ResolutionVoltage1mV Current1mA Setpoint accuracy (within 12 months) (25±5)Voltage0.03% + 10mV Current0.1% + 5mA Readback Resolution (25±5)Voltage0.03% + 10mV Current0.1% + 5mA
- Ripple/Noise (20Hz-20MHz)Voltage (Vp-p)4mVp-p Voltage (rms)1mVrms Current (rms)4mArms Output temperature coefficient (0-40)Voltage0.03% + 10mV Current0.1% + 5mA Readback temperature coefficientVoltage0.03% + 10mV Current0.1% + 5mA
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

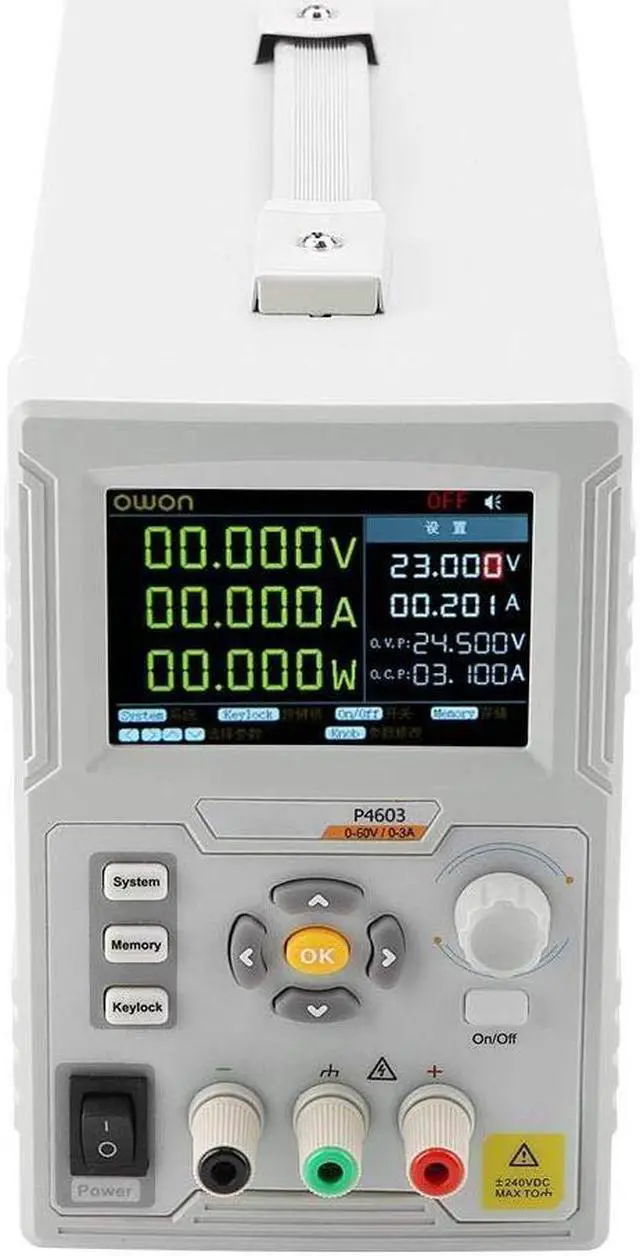

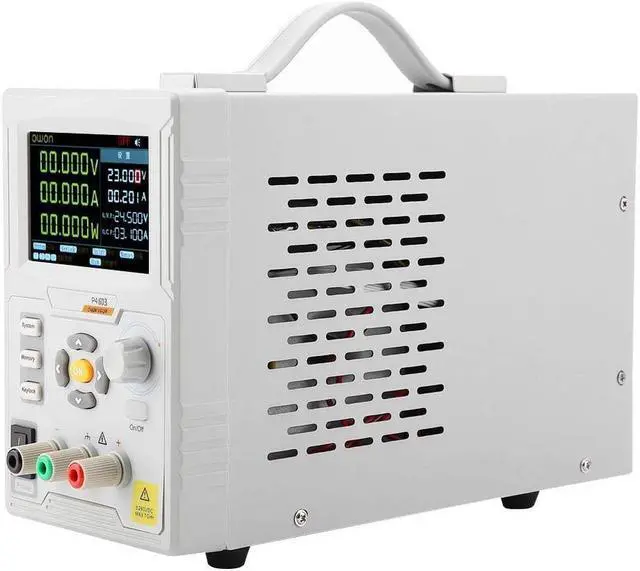

OWON 1CH P4603 Liner DC Power Supply
Welcome to buy the famous brands' OWON programmable dc power supply, 180w, 30v power supply, 6a power supply with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.
+ Small body for easy carry
+ 180W maximum output power
+ High resolution 1mV / 1mA
+ Low ripple/noise

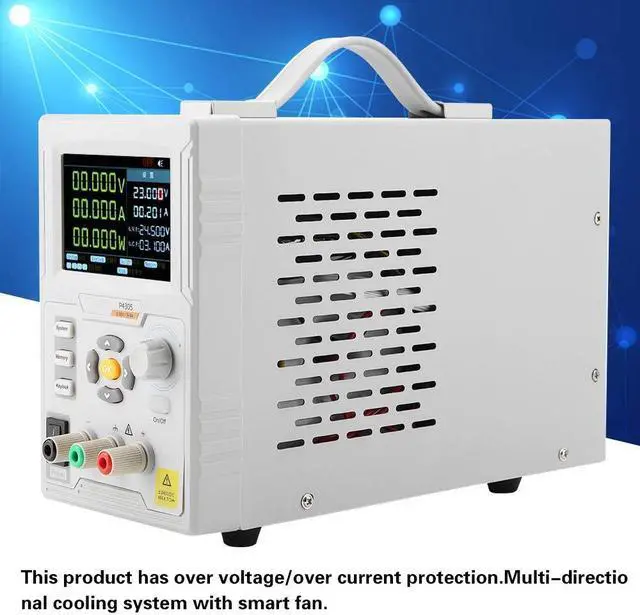

+ Over voltage/over current protection
+ Multi-directional cooling system with smart fan
+ 3.7 inch TFT LCD display
+ Support RS232 digital communication
+ Support SCPI

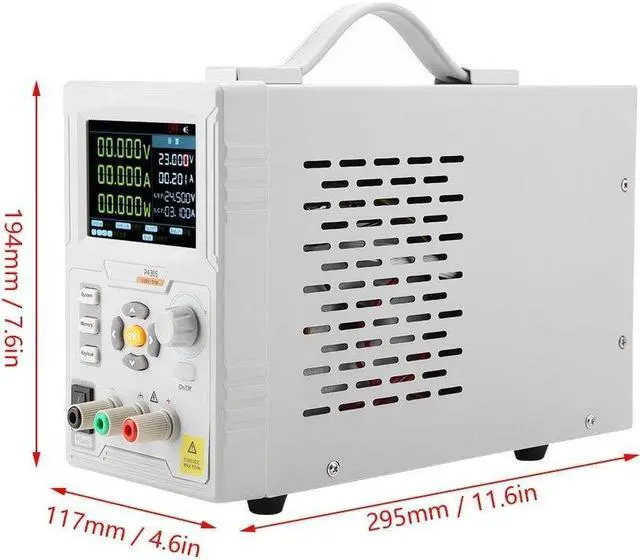

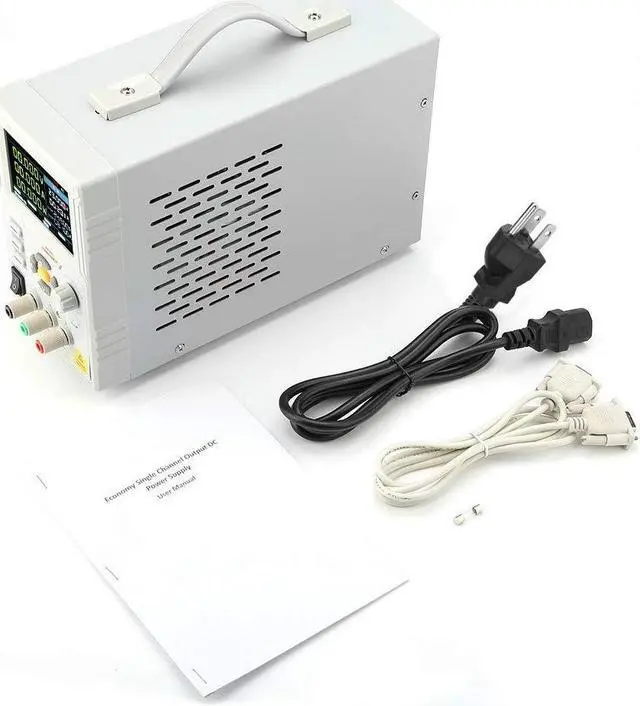

Product Features + Small body for easy carry + 180W maximum output power + High resolution 1mV / 1mA + Low ripple/noise + Over voltage/over current protection + Multi-directional cooling system with smart fan + 3.7 inch TFT LCD display + Support RS232 digital communication + Support SCPIOWON P4603 Linear DC power supply newly launched with a small body, lighter weight, easier to carry. Single channel, competitive unit price. With high-resolution 1mV/1mA, 3.7 inches large TFT LCD, 180W maximum output power. Low ripple and noise can meet the requirement for high accuracy testing. It can save up to 5 sets of parameters for easy recall. It can be used in mobile / laptop repair, PCB / Motor testing and battery charging. With Over voltage protection, Over current protection, over temperature protection and short circuit protection. Package: Power cord (1pc) Quick Guide (1pc) Fuse (1pc) Test Leads (optional) Dimension: 117 x 194 x 295 (mm) Weight: 5.8 kg What's in the package:
Power Cord
Quick Guide
Fuse
Welcome to buy the famous brands' OWON programmable dc power supply, 180w, 30v power supply, 6a power supply with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.
+ Small body for easy carry
+ 180W maximum output power
+ High resolution 1mV / 1mA
+ Low ripple/noise
+ Over voltage/over current protection
+ Multi-directional cooling system with smart fan
+ 3.7 inch TFT LCD display
+ Support RS232 digital communication
+ Support SCPI
Product Features + Small body for easy carry + 180W maximum output power + High resolution 1mV / 1mA + Low ripple/noise + Over voltage/over current protection + Multi-directional cooling system with smart fan + 3.7 inch TFT LCD display + Support RS232 digital communication + Support SCPIOWON P4603 Linear DC power supply newly launched with a small body, lighter weight, easier to carry. Single channel, competitive unit price. With high-resolution 1mV/1mA, 3.7 inches large TFT LCD, 180W maximum output power. Low ripple and noise can meet the requirement for high accuracy testing. It can save up to 5 sets of parameters for easy recall. It can be used in mobile / laptop repair, PCB / Motor testing and battery charging. With Over voltage protection, Over current protection, over temperature protection and short circuit protection. Package: Power cord (1pc) Quick Guide (1pc) Fuse (1pc) Test Leads (optional) Dimension: 117 x 194 x 295 (mm) Weight: 5.8 kg What's in the package:
Power Cord
Quick Guide
Fuse
