LM2596 Multi Channel Switching Power Supply 3.3V/5V/12V/ADJ Adjustable Voltage Output Power Supply Module
The LM2596 is a switching voltage regulator of a step-down power management monolithic integrated circuit, capable of outputting a drive current of 3A, with good linearity and load regulation characteristics.

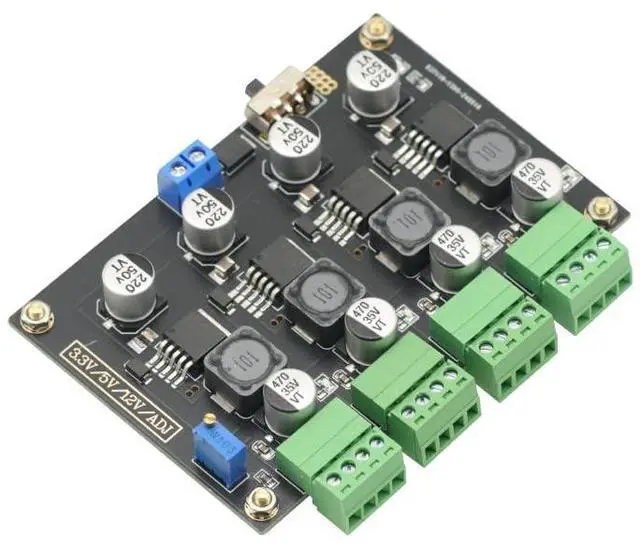

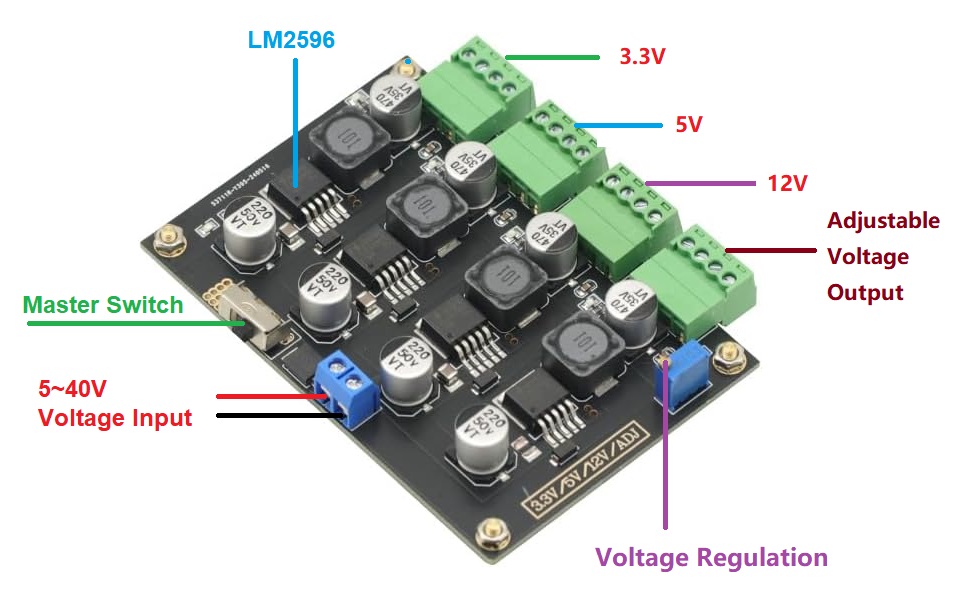

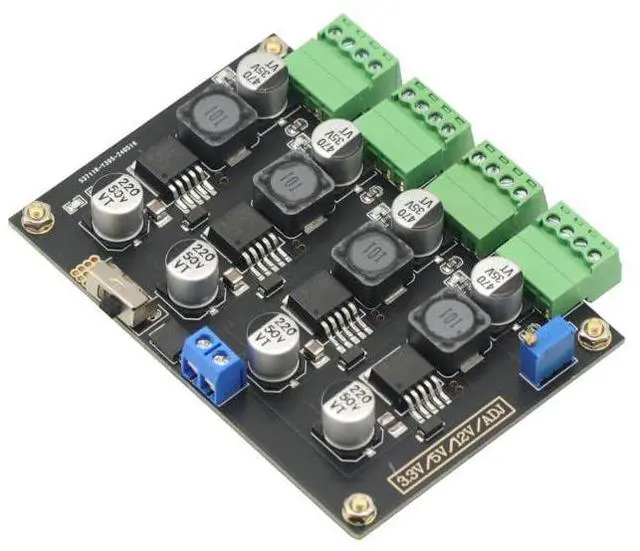

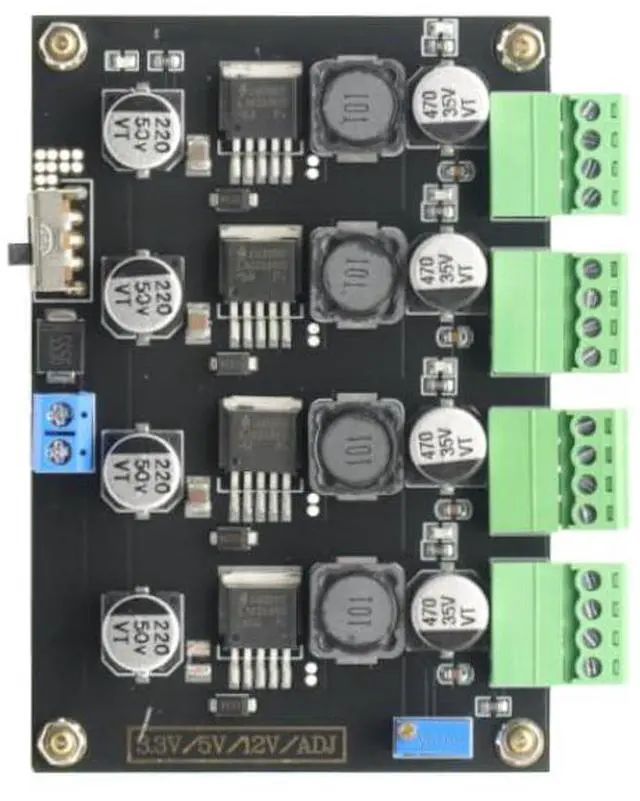

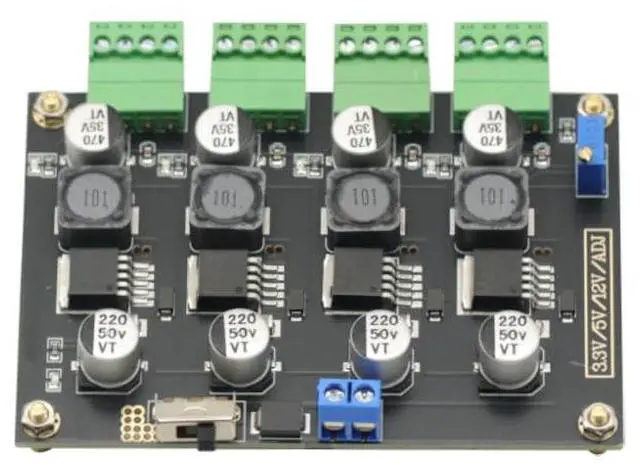

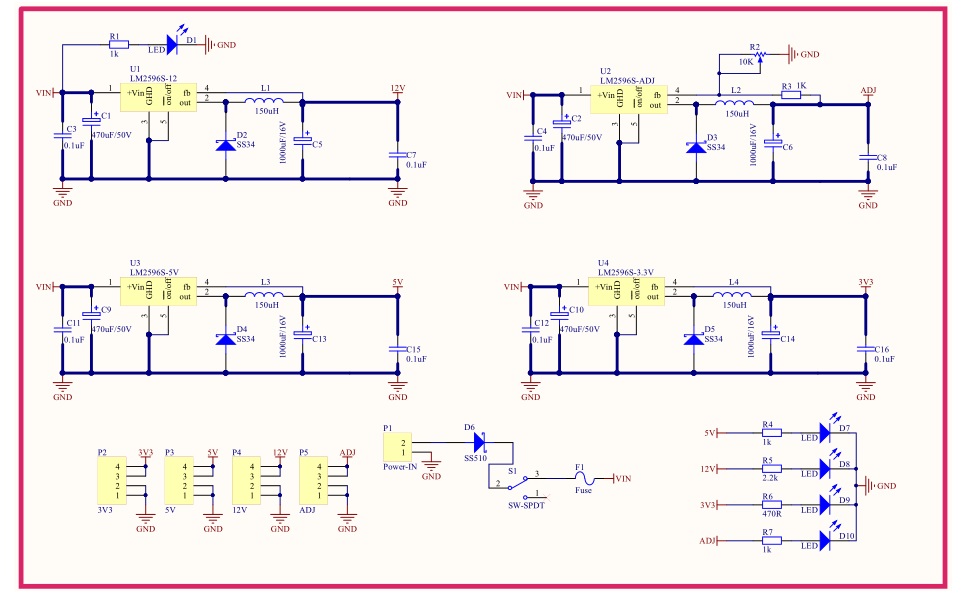

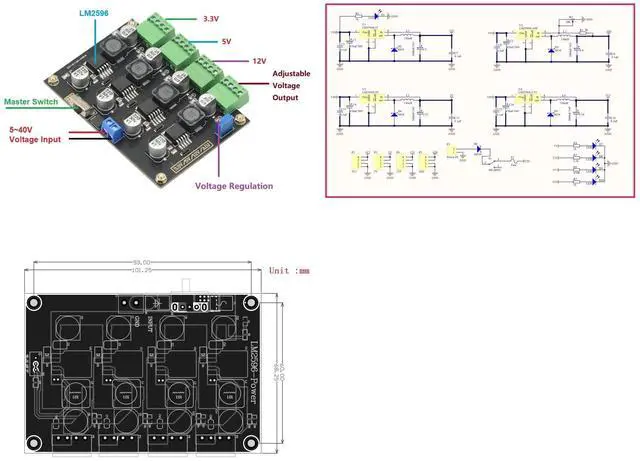

This module integrates 4 pieces of LM2596, which can output 3.3V, 5V, 12V, ADJ four sets of power at the same time
The module is laid out and wired in strict accordance with the design specifications of the power circuit
The material is generous, using SMD aluminum electrolytic capacitors, high-Q high-power inductors to ensure stable output voltage

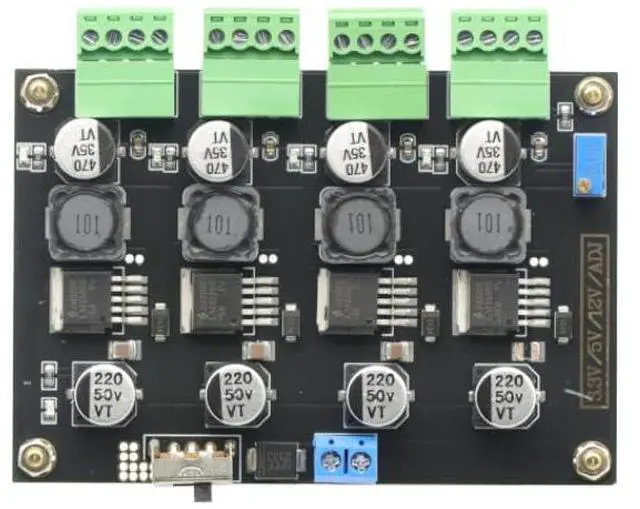

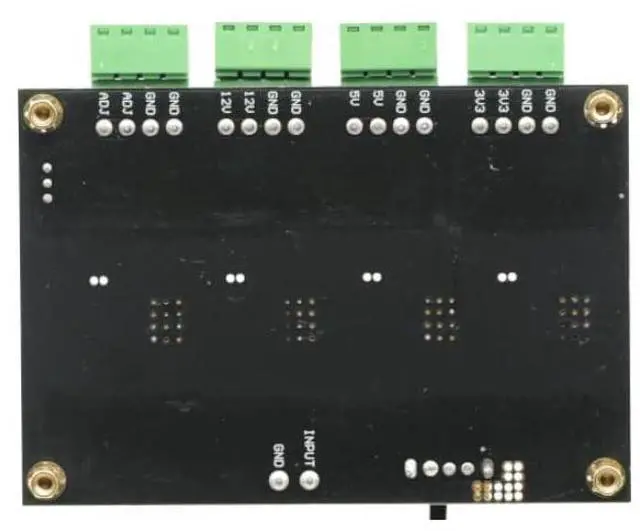

The window processing on the back of the PCB board is more conducive to the heat dissipation of the LM2596 chip
Suitable for student learning competitions and power needs in corporate or personal project development.
LM2596 Multi Channel Switching Power Supply 3.3V/5V/12V/ADJ Adjustable Voltage Output Power Supply Module
The LM2596 is a switching voltage regulator of a step-down power management monolithic integrated circuit, capable of outputting a drive current of 3A, with good linearity and load regulation characteristics.
This module integrates 4 pieces of LM2596, which can output 3.3V, 5V, 12V, ADJ four sets of power at the same time
The module is laid out and wired in strict accordance with the design specifications of the power circuit
The material is generous, using SMD aluminum electrolytic capacitors, high-Q high-power inductors to ensure stable output voltage
The window processing on the back of the PCB board is more conducive to the heat dissipation of the LM2596 chip
Suitable for student learning competitions and power needs in corporate or personal project development.

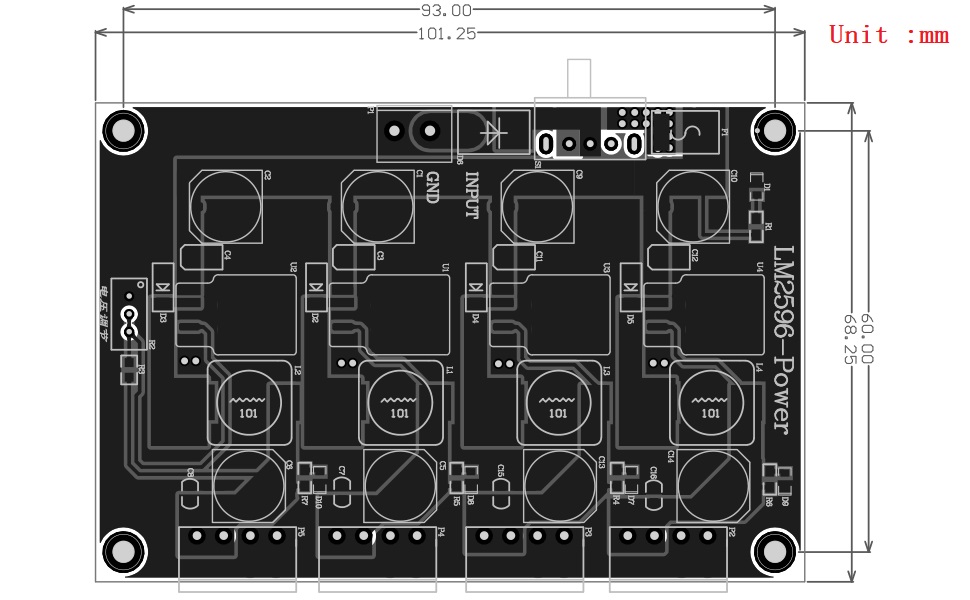

| Size | 100*68mm |
| Module model | LM2596 multi-channel power supply |
| Module type | switching power supply |
| Input voltage | 5V-40V |
| Input voltage | multiple 3.3V, 5V, 12V, ADJ |
| Output current | 3A (MAX), the maximum single-channel current of the module is 3A, and the total current does not exceed 5A |
| Conversion efficiency | 85% |
| Output power | 9.9W 3.3V |
| Static power consumption | 26mA |
| Switching frequency | 150KHz |
| Module Enable | None |
| Module protection | reverse polarity protection |
| Module features | low noise, low ripple; with input and output power supply; indicator light; with positioning hole |
