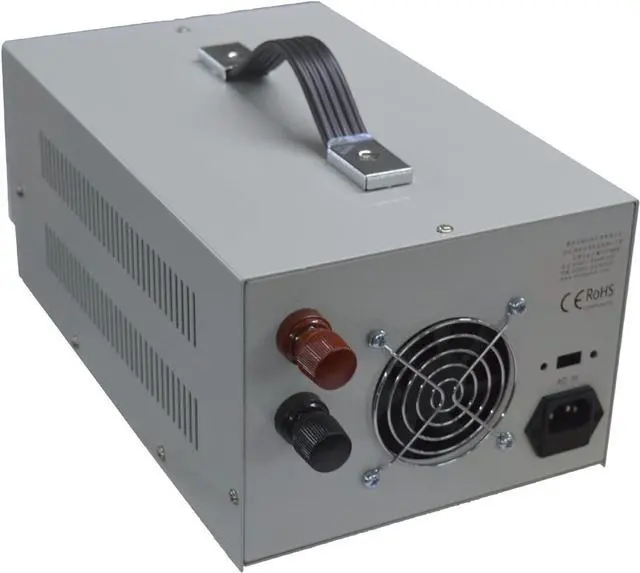

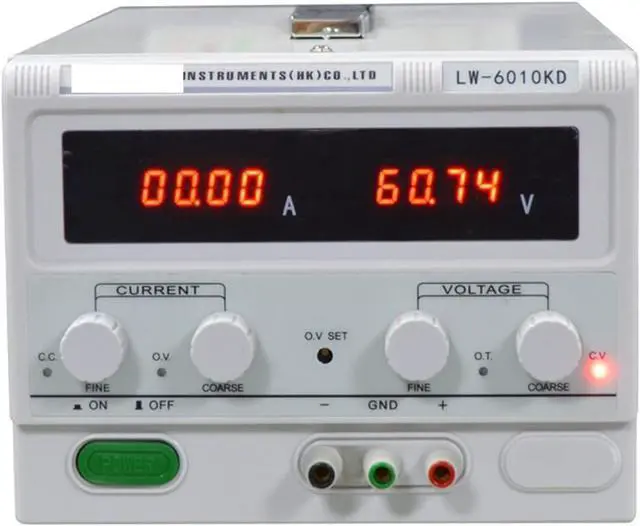

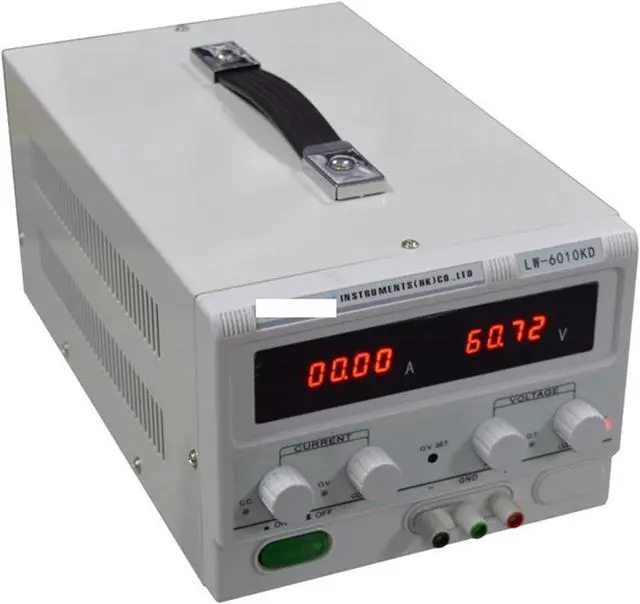

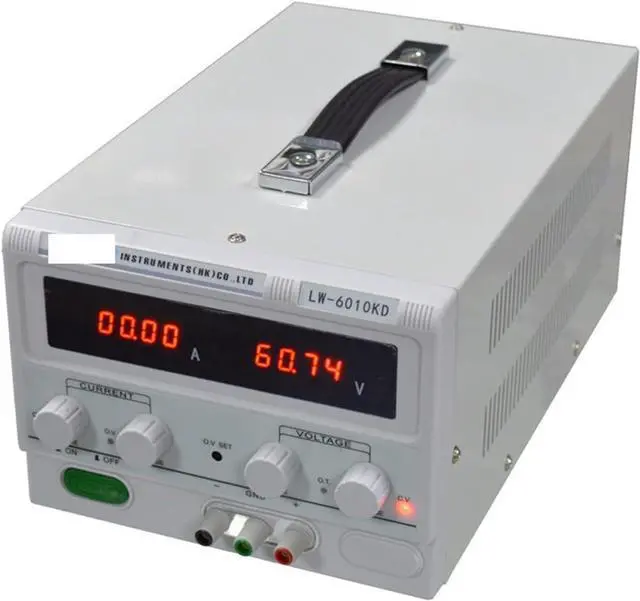

Dc Regulated Power Supply Adjustable Switching Power Supply Constant Voltage Large Current
- High precision four-digit LED digital display, intuitive and clear.
- 12 cm intelligent temperature control fan, excellent heat dissipation effect, effectively prolong the life of the fan, reduce noise.
- The use of advanced technology, effectively reduce the weight of the power supply, convenient power movement.
- A variety of protection functions, adjustable overvoltage protection (OVP), current limiting protection (OCP), over temperature protection (OTP), over power protection (OPP).
- Plastic panel, more beautiful, handle design, more convenient to carry.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Input voltage: 220V±10% @50Hz±5Hz
Output voltage: 0-60
Output current: 0-10
Display accuracy: ±1%±1 word, voltage resolution 0.1V, current resolution 0.1A
Startup delay: 3-5S Shutdown delay: 1-10S (depending on the load)
Voltage stability: 0.2%
Current stability: 0.5%
Load stability: 0.5%
Ripple and sweep noise: 1% (effective value)
Efficiency of the whole machine: 86% (test under full load)
Working environment: -10 -+ 40 relative humidity 20%-90% (non-condensable)
Storage environment: -20 -+ 80 relative humidity 20%-80% (non-condensable)
Withstand voltage test: Input-output: 1.5KVAC/1 min
Input - Housing: 1.5KVAC/1 min
Output - Case: 500VAC/ 1min
Ground resistance: <; 20m
Appearance size: 197mm* 322mm* 145mm
Output voltage: 0-60
Output current: 0-10
Display accuracy: ±1%±1 word, voltage resolution 0.1V, current resolution 0.1A
Startup delay: 3-5S Shutdown delay: 1-10S (depending on the load)
Voltage stability: 0.2%
Current stability: 0.5%
Load stability: 0.5%
Ripple and sweep noise: 1% (effective value)
Efficiency of the whole machine: 86% (test under full load)
Working environment: -10 -+ 40 relative humidity 20%-90% (non-condensable)
Storage environment: -20 -+ 80 relative humidity 20%-80% (non-condensable)
Withstand voltage test: Input-output: 1.5KVAC/1 min
Input - Housing: 1.5KVAC/1 min
Output - Case: 500VAC/ 1min
Ground resistance: <; 20m
Appearance size: 197mm* 322mm* 145mm
