350w 12/24v AC UPS/Charging Function Monitoring Switching Power Supply Input 110/220v Battery Charger Output 27.6VDC(12V_350W)
- Industrial Power Suppl
- 350w 12/24v AC UPS/charging function monitoring switching power supply input 110/220v battery charger output 27.6VDC
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Industrial Power Suppl
350w 12/24v AC UPS/charging function monitoring switching power supply input 110/220v battery charger output 27.6VDC
Specification:
Input voltage: 110/220VAC selected by switch
PSC-350-12
CH1: 13.8VDC 20A (load)
CH2: 13.8V 5A (charging)
PSC-350-24
CH1: 27.6VDC 10A
CH2: 27.6V 2.5A (charging)
Ripple voltage; not to exceed 100 millivolts
Voltage stabilization equivalent internal resistance: no more than 0.O5

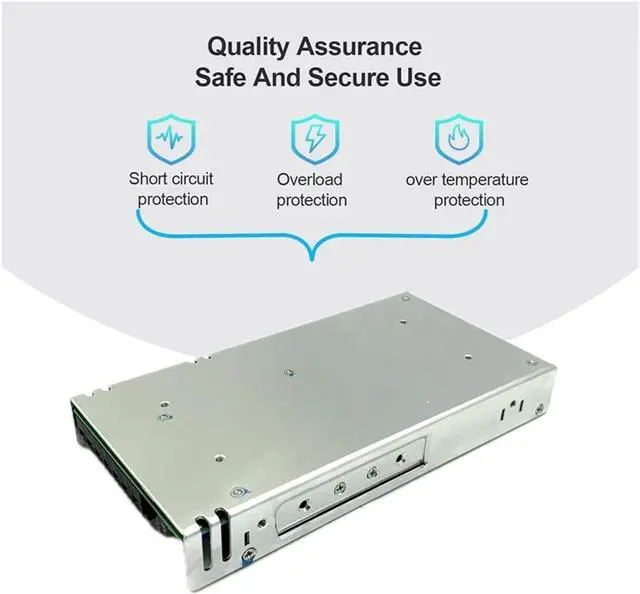

Short circuit, overload protection
3. Protection characteristics: short circuit/overload
4.Battery low voltage protection

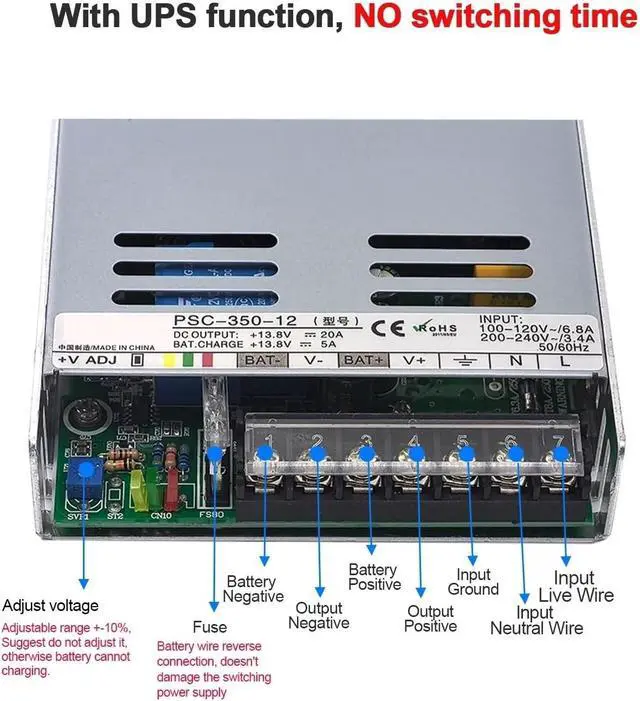

Indicator light description
Green: DC output
Red: AC input
Yellow: The battery is charging
=========
Output power: 301-400W
Output current: 21A
Model: PSC-350
Output frequency: 50/60 HZ
Output type: single channel
Origin: Mainland China

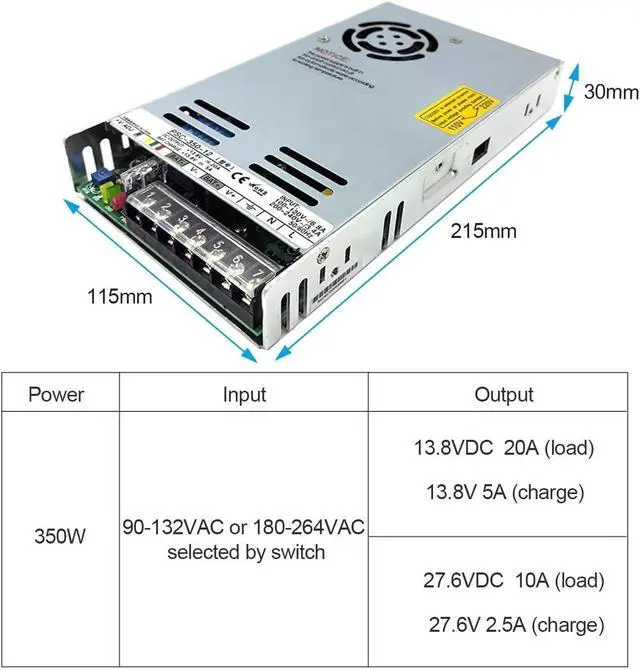

Product size: 215*115*50mm (length*width*height)
Output power: 350w
350w 12/24v AC UPS/charging function monitoring switching power supply input 110/220v battery charger output 27.6VDC
Specification:
Input voltage: 110/220VAC selected by switch
PSC-350-12
CH1: 13.8VDC 20A (load)
CH2: 13.8V 5A (charging)
PSC-350-24
CH1: 27.6VDC 10A
CH2: 27.6V 2.5A (charging)
Ripple voltage; not to exceed 100 millivolts
Voltage stabilization equivalent internal resistance: no more than 0.O5
Short circuit, overload protection
3. Protection characteristics: short circuit/overload
4.Battery low voltage protection
Indicator light description
Green: DC output
Red: AC input
Yellow: The battery is charging
=========
Output power: 301-400W
Output current: 21A
Model: PSC-350
Output frequency: 50/60 HZ
Output type: single channel
Origin: Mainland China
Product size: 215*115*50mm (length*width*height)
Output power: 350w
