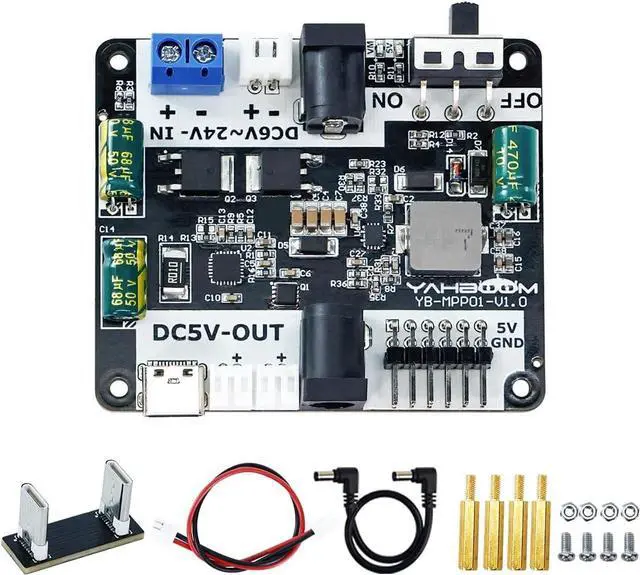

PD Power Expansion Board for Raspberry Pi5 8GB Power Board with Jetson/Raspberry Pi5/RDK Series for Portable Power Supply

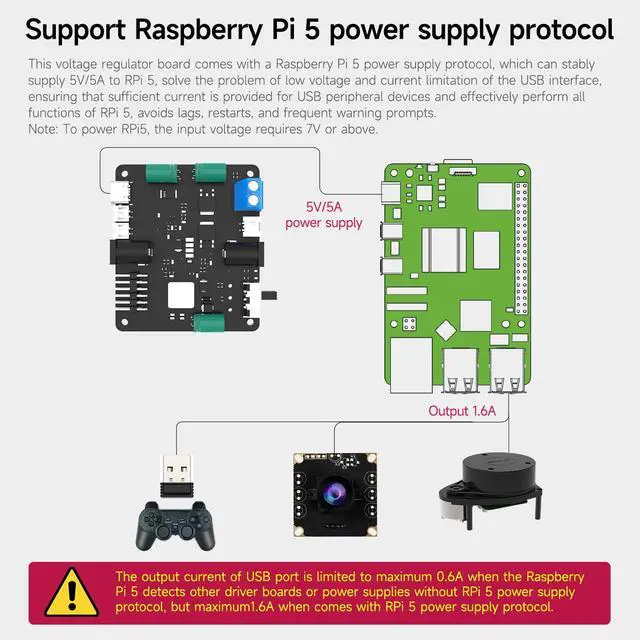

- Supports Pi5 power supply protocolThe robot regulated power supply expansion board supports the Pi5 power supply protocol, which can provide 5V/5A power supply to the Pi 5, effectively avoiding the low voltage and USB port current limit warnings of the Pi 5. Ensure sufficient current is provided to USB peripherals to avoid abnormal situations such as freezing and restarting, and unleash the full performance of Raspberry Pi 5.

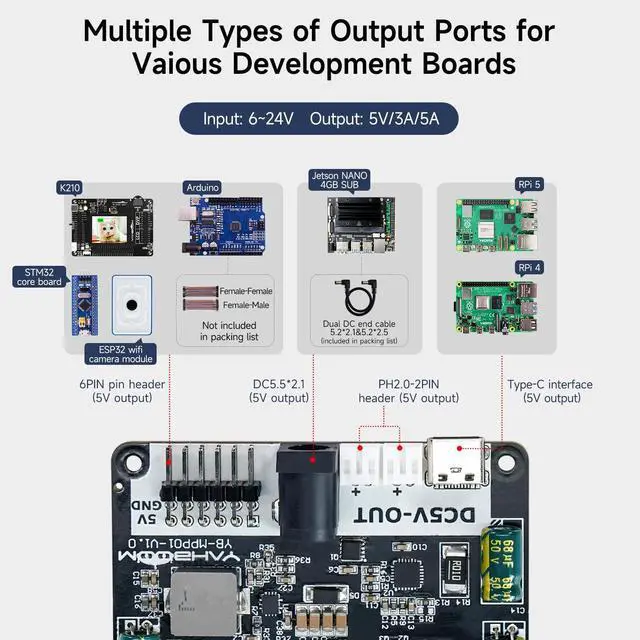

- Powerful power supply compatibility6~24V wide voltage input, 5V/5A stable output. Requires regulated 5V power supply equipment: such as RaspberryPi, Jetson Nano, Arduino, STM32 development board, etc. Additional self-purchased cables are required to connect Arduino and STM32.
- Power supply output modeThe robot regulated power supply expansion board has flexible input voltage adaptation and stable output characteristics. It can intelligently adjust the output current according to different input voltages to ensure that it provides 5V/3A output when the input is 6V, and 5V/3A when the input is 7V. Provides higher 5V/5A output when input to 24V to meet the power supply needs of different devices.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Supports Pi5 power supply protocolThe robot regulated power supply expansion board supports the Pi5 power supply protocol, which can provide 5V/5A power supply to the Pi 5, effectively avoiding the low voltage and USB port current limit warnings of the Pi 5. Ensure sufficient current is provided to USB peripherals to avoid abnormal situations such as freezing and restarting, and unleash the full performance of Raspberry Pi 5.
- Powerful power supply compatibility6~24V wide voltage input, 5V/5A stable output. Requires regulated 5V power supply equipment: such as RaspberryPi, Jetson Nano, Arduino, STM32 development board, etc. Additional self-purchased cables are required to connect Arduino and STM32.
- Power supply output modeThe robot regulated power supply expansion board has flexible input voltage adaptation and stable output characteristics. It can intelligently adjust the output current according to different input voltages to ensure that it provides 5V/3A output when the input is 6V, and 5V/3A when the input is 7V. Provides higher 5V/5A output when input to 24V to meet the power supply needs of different devices.

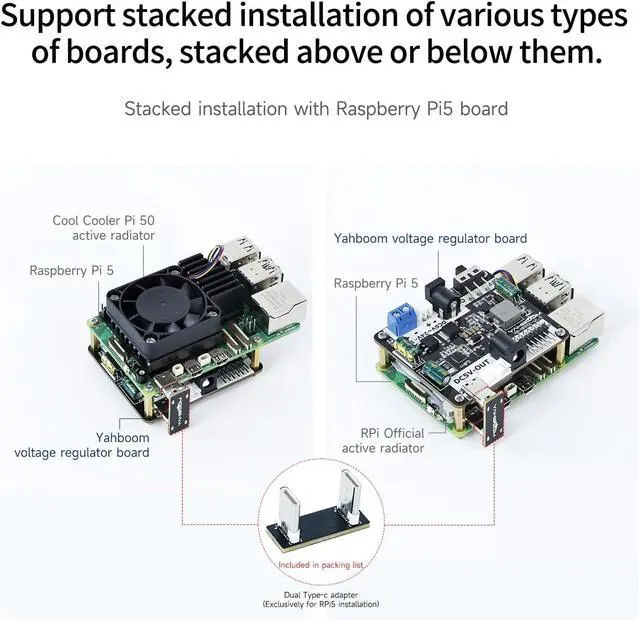

- Comes with dual Type-C power supply adapter boardsPi5 uses dual Type-C power supply adapter boards to directly connect to the regulated power supply expansion board. The power supply adapter board supports the PD protocol to meet the power transmission needs of Pi 5. Effectively reduce cable redundancy. It also supports Pi5 stacking installation, which is not only suitable for Pi 5, but also compatible with the stacking use of Pi4B and other motherboards.

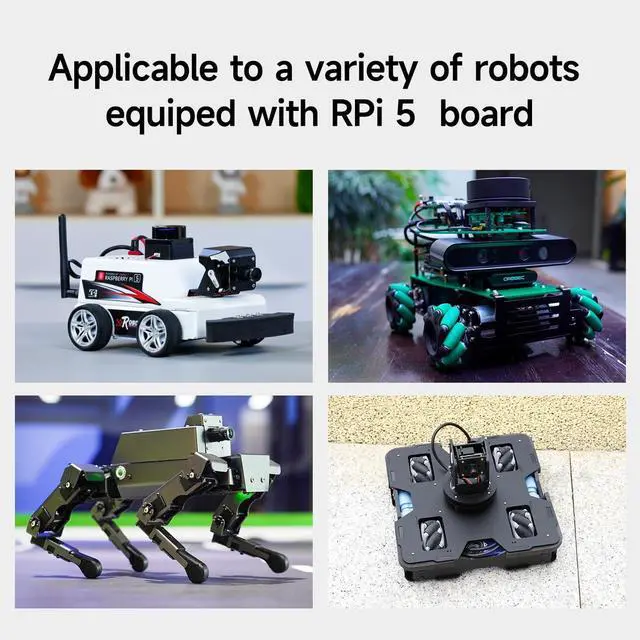

- Application ScenarioIt can provide mobile power supply for various types of Raspberry Pi 5 robots. It has a safe and stable power supply system, with on-board input anti-reverse protection, output over-current protection, current-limiting protection, over-voltage protection, and over-temperature protection. Yahboom provides technical support, please contact us if you have any questions.
