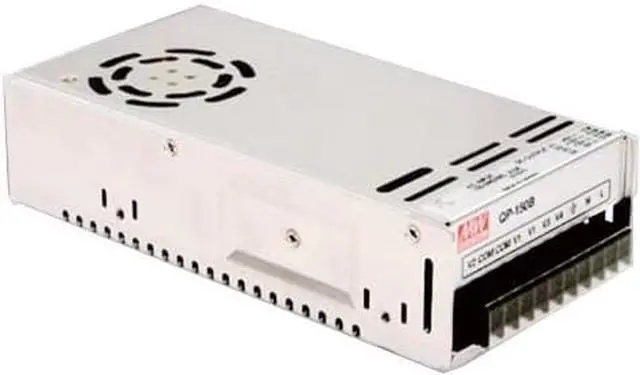

QP-150-3D 150W Four-Way PFC Drive Switching Power Supply

Industrial Power Supply
Item number: QP-150-3D
Model: QP-150-3D
Type: AC/DC power supply
Modulation method: Pulse width modulation (PWM) type
Transistor connection method: single-ended
Input voltage: 90264VAC/127370VDC
Output power: 150
Output voltage: +5/ +3.3/ +24/-12
Productivity: 76
Output ripple noise: 100mV / 100mV / 150mV / 150mV
Output voltage accuracy: ±3 / ±3 / ±6 / ±5
Load regulation: +-2~6
Product certification: CCC
Output current: 15A/15A/3A /1A
Working frequency: 47~63
Working temperature: -10~60

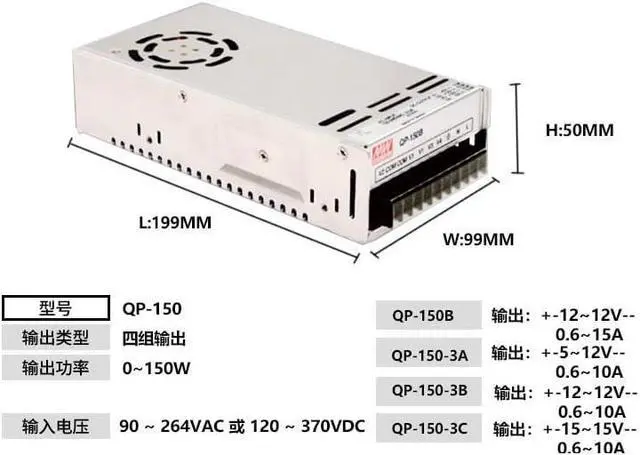

Overall dimensions: 199*90*50MM
Material number: QP-150-3D
Order number: QP-150-3D
Minimum number of packages: 1
Specifications: QP-150-3DV
Series: QP-150
Number of power supply phases: four phases
Input voltage range: 90264VAC/127370VDC
Number of circuits: single circuit
Scope of application: Mechanical and equipment drive
Extended functions: mechanical machine tools
Working environment temperature: -10~60
Installation method: screw installation
Remarks: Unless otherwise specified, all specifications and parameters are measured at an input of 230VAC, rated load, and an ambient temperature of 25°C.
Reset method: power off and restart
Adjust voltage: potentiometer adjustment
Cooling fan type: forced air cooling
Power supply type: switching power supply

QP-150-3D Product Description
The power supply model with high power factor is a must-select model in Europe. Built-in active power factor correction circuit (PFC) helps improve energy utilization and reduce harmonic interference. It has a global full range of voltage input and complete functions.
QP-150-3D Main features
Full range AC input voltage
Built-in active power factor correction circuit, power factor: PF>0.98 at 115VAC; PF>0.95 at 230VAC
With short circuit protection/overload protection/overvoltage protection
International saf
