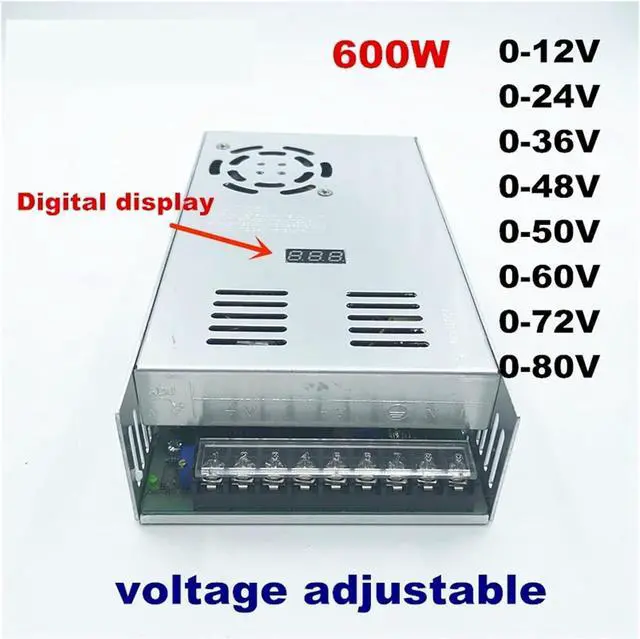

600W Switching Power Supply with Adjustable Output Voltage AC-DC 0-12V 15V 24V 36V 48V 50V 60V 72V 80V Digital Display Power Supply(36V 16.6A)

Industrial Power Suppl
600W switching power supply adjustable output voltage AC-DC 0-12V 15V 24V 36V 48V 50V 60V 72V 80V 110V 130V 220V, SMPS 12V 50A
switching power supply
Output power: 600w
Input voltage: 110/220VAC selected by switch.

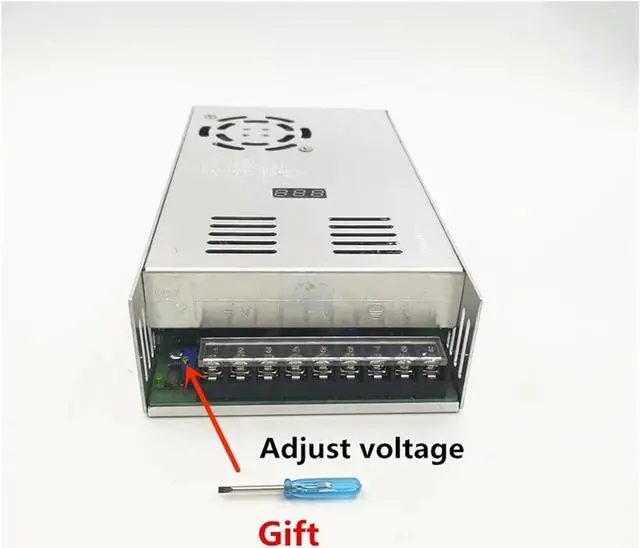

Output voltage is adjustable in full range
Features and Benefits
High efficiency, high reliability, low cost

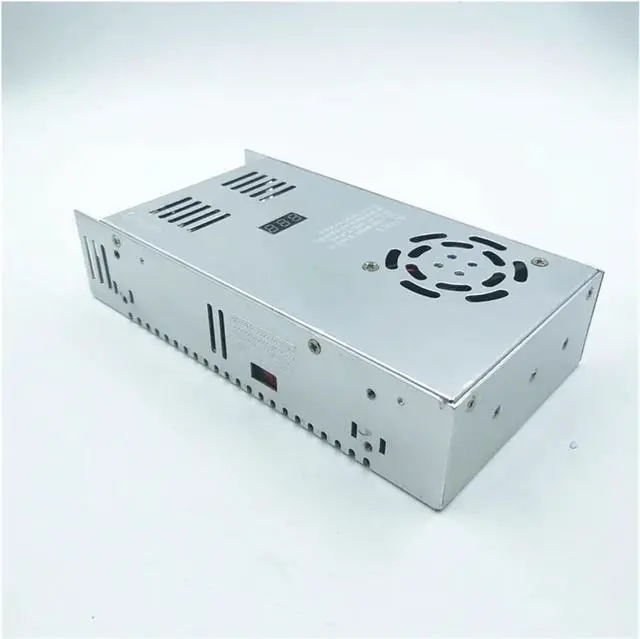

Switch input voltage range selection
100 full load machine tests
Protection characteristics short circuit/overload

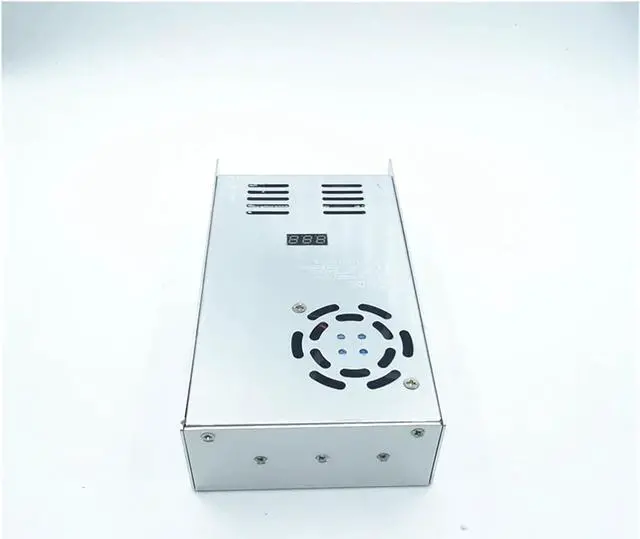

fan cooling
Specification:
Model
Specification
S-600-5
S-600-12
S-600-15
S-600-24

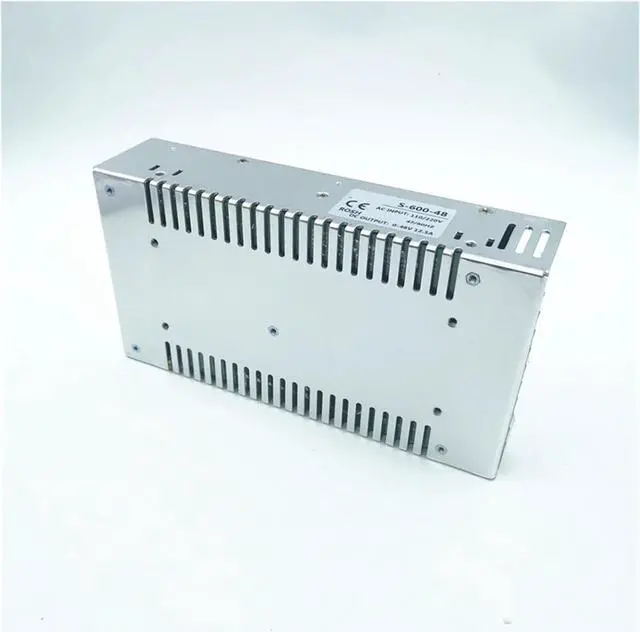

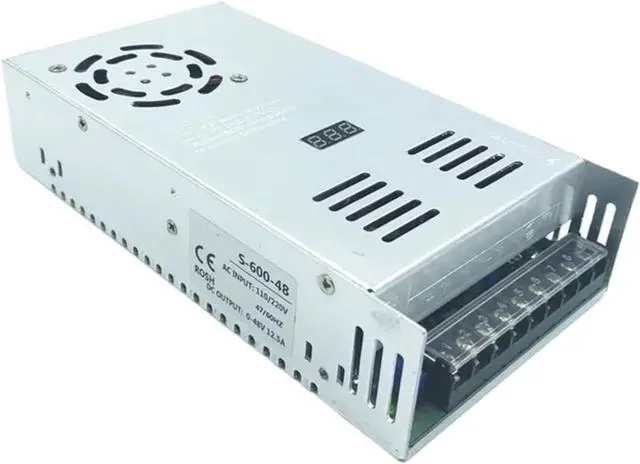

S-600-48
DC output voltage
5V
12V
15V
24V
48V
Output voltage range (Note: 2)
±2%
±1%
±1%
±1%
±1%
Rated output current
80A
50A
40A
25A
12.5A
Output voltage range DC
0~5V
0~12V
0~15V
0~24V
0~48V
Waves and Noise (Note: 3)
75mVp-p
120mVp-p
150mVp-p
240mVp-p
240mVp-p
Entrance stability (Note: 4)
±0.5%
±1%
±1%
±1%
±1%
Load stability (Note: 5)
±1%
±0.5%
±0.5%
±0.5%
±0.5%
DC output power
400W
600W
600W
600W
600W
efficiency
80%
83%
84%
86%
87%
AC input voltage range
100-132VAC/190-240VAC 47-63Hz selected by switch
Input current
5A/230V
power factor
0.65-0.75
AC surge current
46A/230V
Leakage current
<;3.5mA/240VAC
Overload protection
120%-150%
Overvoltage protection
120%-150%
High temperature protection
80°C~85°C, cut off output (5-15V)~(24-48V)
temperature coefficient
±0.03%/(0~50)
Setup time, rise time, hold time
1 second, 100 milliseconds, 50 milliseconds
vibration
10~500Hz, 2G 10min, /1 cycle. Each axis cycle is 60 minutes
Withstand voltage
I/PO/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistor
I/PO/P, I/P-FG, O/P-FG: 100M ohm/500VDC
