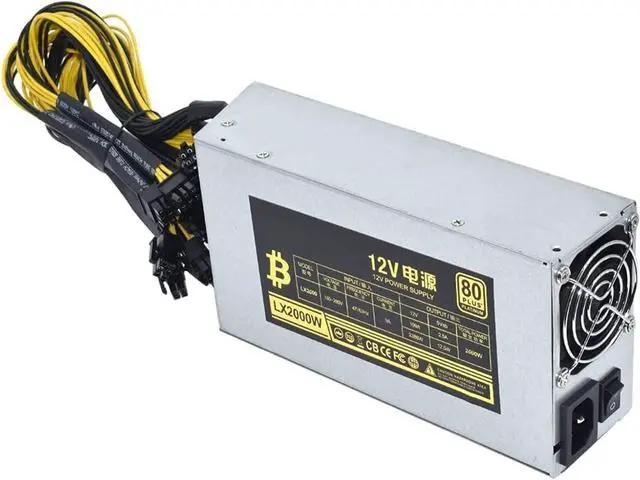

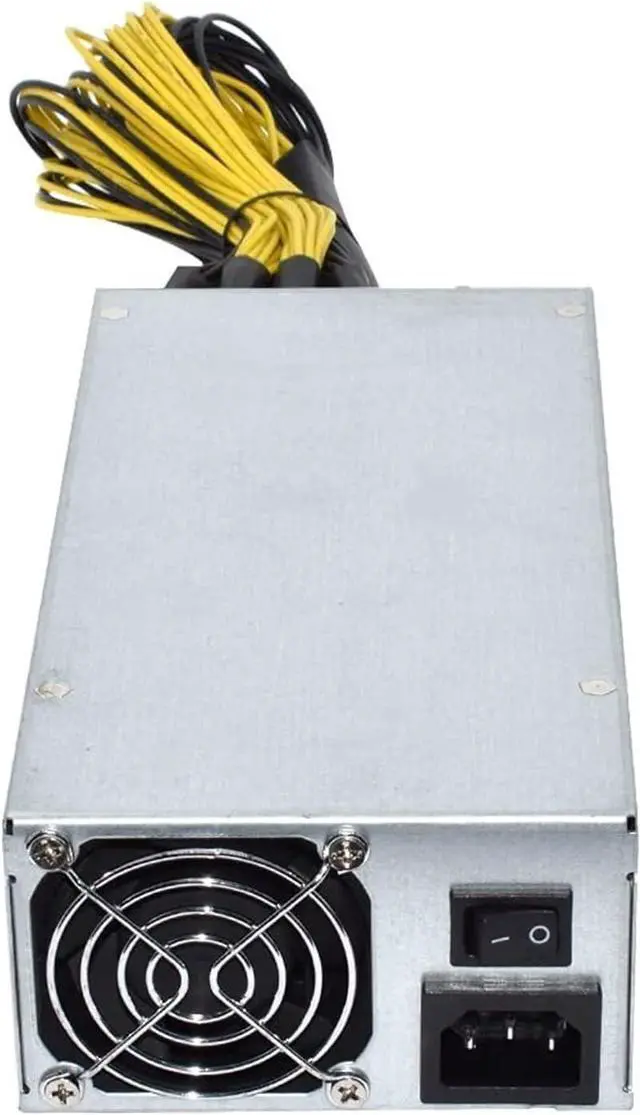

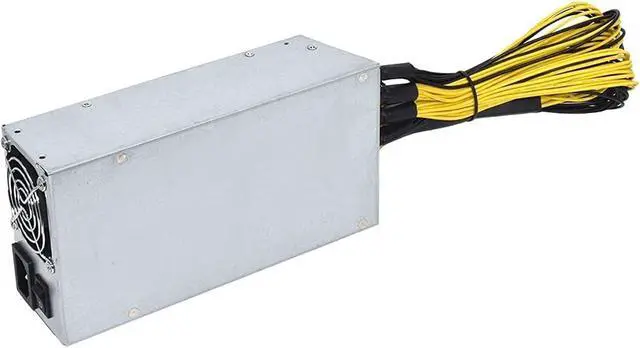

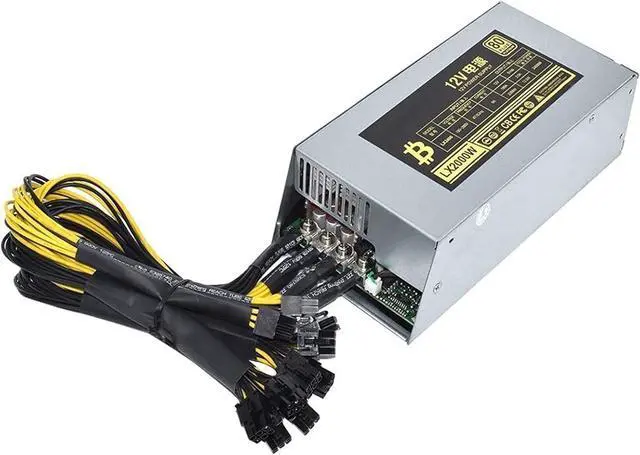

2000W 12V 166A ETH Mining Machine Power Supply 220-240V Input 10x6Pin 80% Efficiency Multi-GPU for BTC Antminer Bitcoin S7 S9
- Features: Durable and quality, Specially designed model, shape and nice pearance
- efficiency and reliability,Short circuit and over voltage protection , Heat Dissipation Mode, Air Blast Cooling
- Descriptions: Fit For: S9(12.5T/13T/13.5T) S7 Ant Series Mining Machine Input Over-current Protection. Over-current point is between 140~160A.
- Output Short-circuit Protection: Recovery can be achieved after the removal of short circuit.
- Input Over Temperature Protection: When the temperature switch is higher than 100 degrees, turn off the 12V output. The temperature can
- be restored automatically below 65 degrees centigrade.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Color: Silver ,

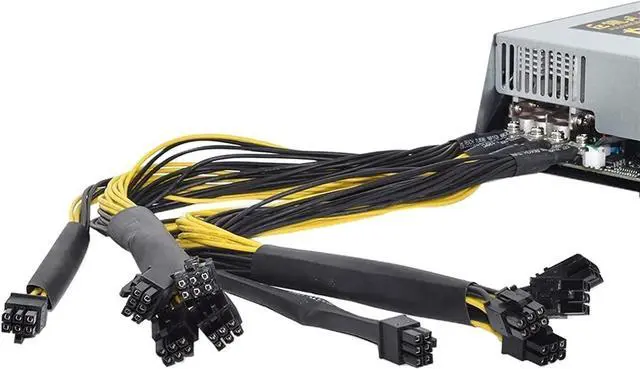

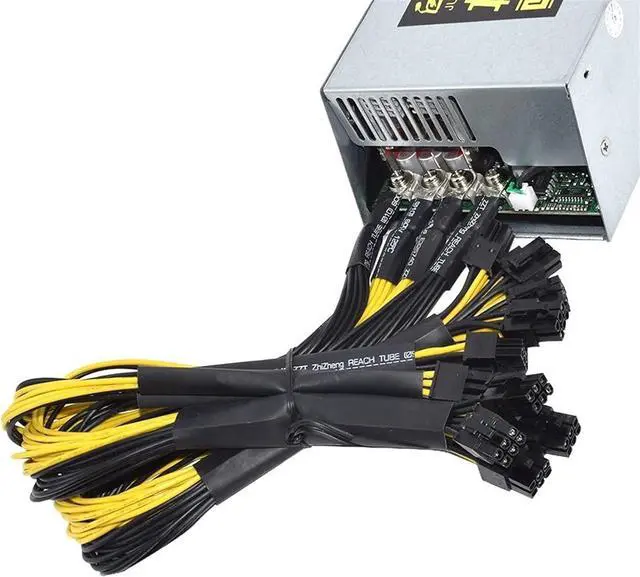

Connectors: 6 PIN x 10 PCS
Number of Interfaces: 10 Input Characteristic
Voltage Range: AC220-240V
Starting Inrush Current: 80 A
Maximum Input Current: 10 A Efficiency: 80% Output Characteristics Output Rated Voltage: DC12V
Load Regulation: ±2% Linear Regulation: ±1%
Rated Output Power: 2000W(Max)
Output Current: 0-166A
Output Ripple And Noise: 120 mVp-p Drive And Shut Down Overshoot Range: ±5%
Rise Time: 100 ms(230V rated load test)
Boot Time: 3 S(230V rated voltage test)
Hold Up Time: 10 mS(230V rated voltage test) Environment Conditions
Operating Temperature: -40~+50 Load (Typical value is 25 .)
Storage Temperature: -40~+85 (Typical value is 25 .)
Operating Humidity: 5~95% Frost-free
Storage Humidity: 0~95% Frost-free
Package Included: 1 x Mining Power Supply
Connectors: 6 PIN x 10 PCS
Number of Interfaces: 10 Input Characteristic
Voltage Range: AC220-240V
Starting Inrush Current: 80 A
Maximum Input Current: 10 A Efficiency: 80% Output Characteristics Output Rated Voltage: DC12V
Load Regulation: ±2% Linear Regulation: ±1%
Rated Output Power: 2000W(Max)
Output Current: 0-166A
Output Ripple And Noise: 120 mVp-p Drive And Shut Down Overshoot Range: ±5%
Rise Time: 100 ms(230V rated load test)
Boot Time: 3 S(230V rated voltage test)
Hold Up Time: 10 mS(230V rated voltage test) Environment Conditions
Operating Temperature: -40~+50 Load (Typical value is 25 .)
Storage Temperature: -40~+85 (Typical value is 25 .)
Operating Humidity: 5~95% Frost-free
Storage Humidity: 0~95% Frost-free
Package Included: 1 x Mining Power Supply
