DC Buck Converter 5.3V-32V to 1.2V-32V 12A Adjustable Power Supply 5v 9v 12v 24V 30V 32V Step Down Voltage Regulator with LCD Display Volt Transformer Reducer CC CV for RV Solar Panel Golf Cart

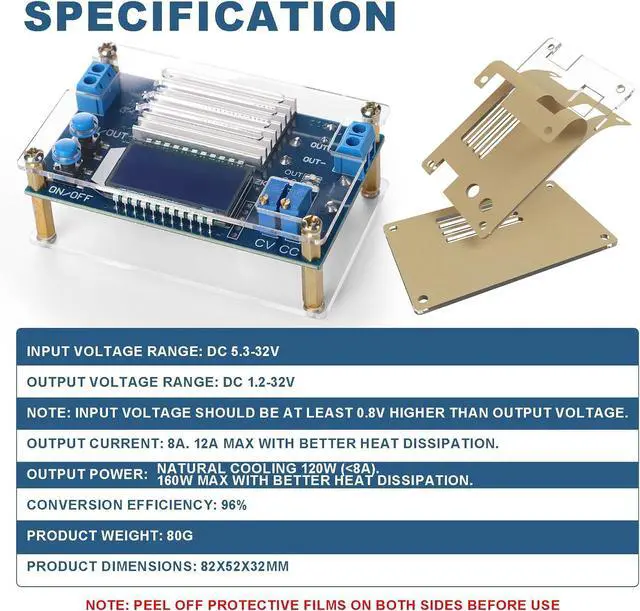

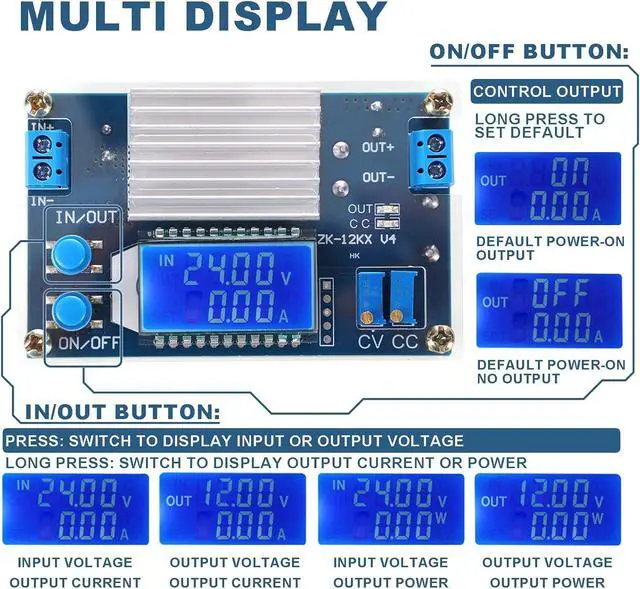

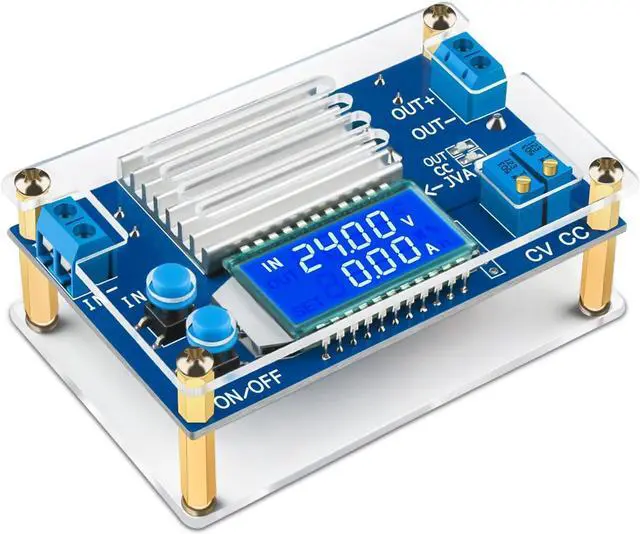

Parameter DROK Power Supply Module input volt range is DC 5.3 -32V; Output volt range is DC 1.2 -32V which is variable. Output current can reach to 8A and Output Power can reach to 120W for long-time use. If enhance heat dissipation this converter can reach 12A and 160W output. Characteristics This Buck Converter is equipped with LCD Display Acrylic Case and Heat Sink. LCD Screen can display input/output voltage output current and output power. Voltage precision is 0.05V current precision is 0.005A. Acrylic case can keep the converter board away from dust which is protective.

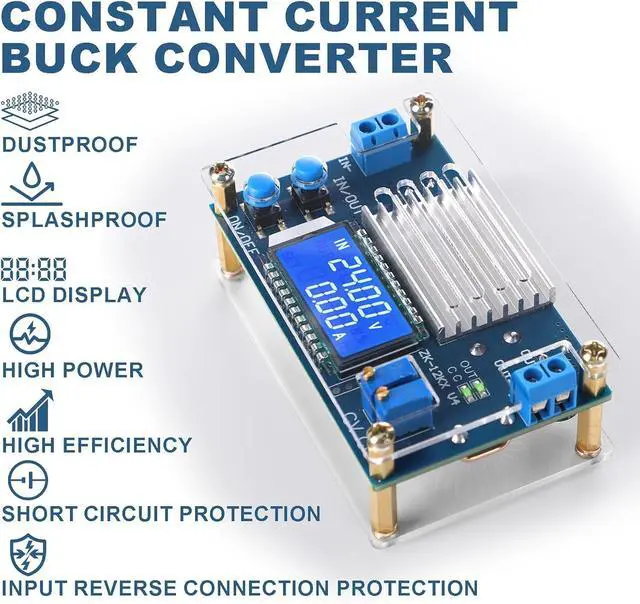

Heat Sink can keep module 120W for long-time using in a low temperature. If you want to reach maximum power 160W please improve heat dissipation. Easy Operation A user manual will be included in package which can help you easier to operate. The button can control ouput voltage ON/OFF status and you can set the default output state is ON/OFF for the next time. The potentiometer can help you to adjust volt amp in a simple and fast way. Protection It has reverse-connect protection short circuit protection and over current protection. When you connect the input wire reversely or short circuit the module will not burn.

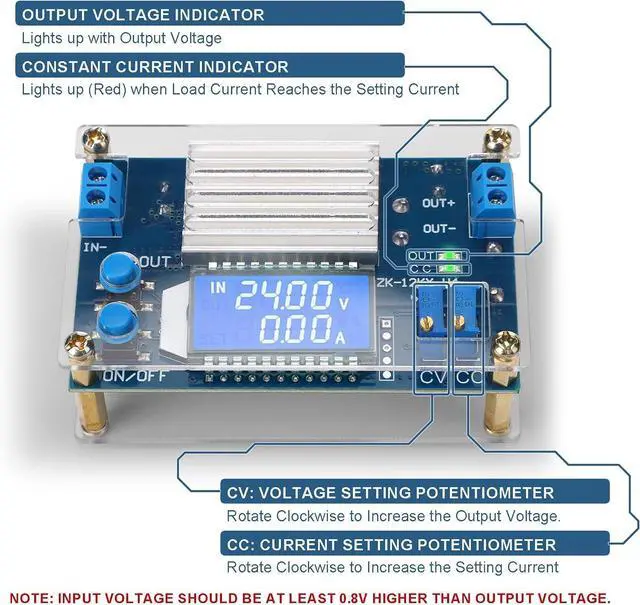

And roate the CC potentiometer to set over current protection value you want. Application The volt conversion board can be used for 5v 6v 9v 12v 24V 30V 32V 3a 5a 10a devices like solar panel lab experiment RV All-Terrain Vehicle car battery charger LED stripes etc.
