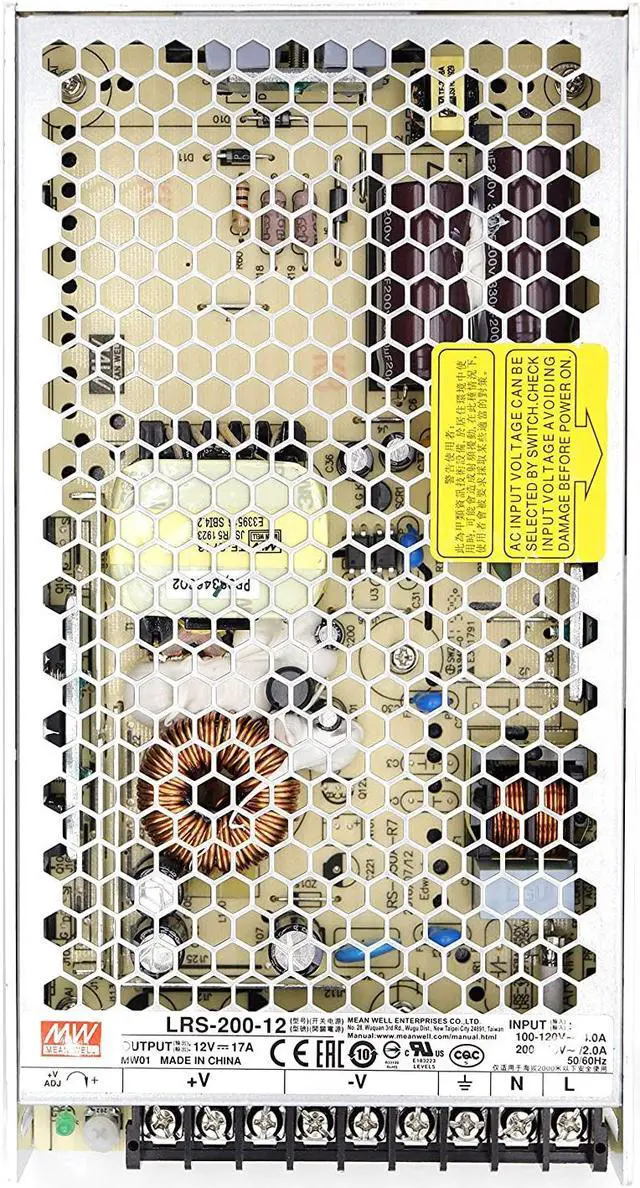

LRS-200-12 Single Output Switching Mode Power Supply 204W 12VDC 17A Output (LRS Series 200W 12V)

Ensure optimal performance of your electronic device with the use of this LRS-200-12 AC to DC power supply from MEAN WELL. It has a voltage of 12 V and maximum output power of 204 W. This part's single output can handle a current up to 17 A. This part has a temperature range of -30 °C to 70 °C.
EU RoHS: Compliant
ECCN (US): EAR99
Package Height: 30
Package Width: 115
Package Length: 215
Type: Switching
Style: Enclosed
Input/Output Type: AC/DC Number of
Outputs: 1
Output Type: Fixed
Output Voltage (V): 12
Output Current (A): 17
Output Power (W): 204 Minimum AC
Input Voltage (V): 90 Maximum AC
Input Voltage (V): 264 Minimum DC
Input Voltage (V): 240 Maximum DC
Input Voltage (V): 370 Minimum
Isolation Voltage: 3000VAC
Line Regulation: 0.5 %
Load Regulation: 1%
Maximum Input Current (A): 4 (Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ± 1.5
Efficiency (%): 87.5 (Typ)
Configurable: No Input
Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: Yes
Ripple & Noise: 150mV (Max)
Medical: No Minimum
Operating Temperature (°C): -30
Maximum Operating Temperature (°C): 70
Product Weight (g): 660
Pin Count: 9
