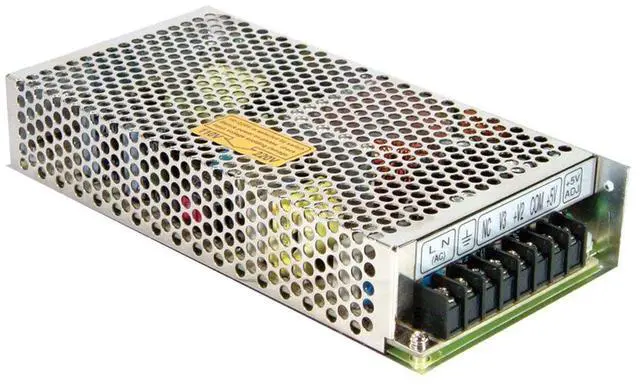

RQ-125D AC-DC Power Supply Quad Output 5V 12V 24V 12V 8 Amp

124W AC/DC enclosed Quad output switching power supply +5 Volts 8 Amps (channel 1) +12 Volts 2.5 Amps (channel 2) +24 Volts 2.0 Amps (channel 3) -12 Volts 0.5 Amps (channel 4) specifications size (L x W x
H) (inches): 7.8 x 3.9 x 1.5 ripple and noise (mV p-p): 80
load regulation: 1.0
percent line regulation: 0.5
percent input: 88-264vac 47-63hz 5G vibration able to withstand 300VAC surge input for 5 seconds short-circuit/overload/overvoltage protection 3-year warranty certifications: UL/cul/TUV/CE/CB for more 12 Volt power supplies.
Detailed specifications: primary
output voltage (VDC): 5
output current (a): 8
maximum output power (W): 124
family: rq-125
additional output voltages (VDC): 12 | 24 | -12 input voltage (VAC): 88 to 132|176 to 264 input frequency: 47 to 63 maximum input current (a): 3 output connector
Type: screw terminal block number of outputs: 4 product
Type: AC to DC power supply efficiency ( percent ): 82
minimum isolation voltage: 3000V
operating temperature-min (CEL): -25
operating temperature-max (CEL): 70
Length (inch): 7.8
width (inch): 3.9
height (inch): 1.5
agency approvals: UL/cul/TUV/CE/CB
Type: switch
selectable style: multiple output.
