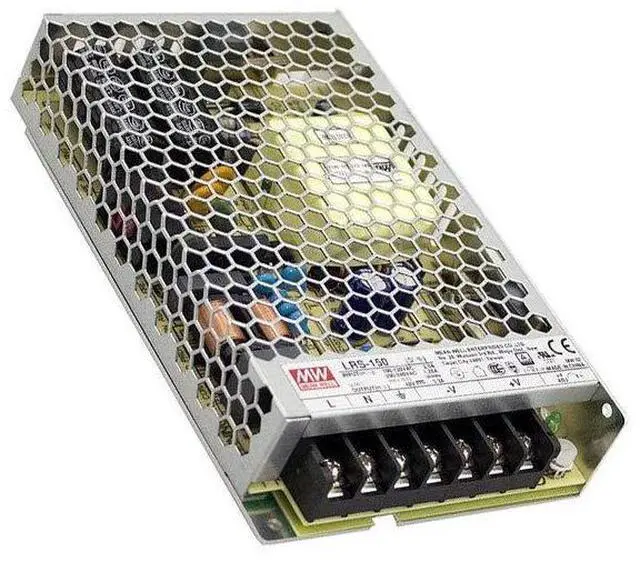

LRS-150-12 150W Single Output Switchable Power Supply 12VDC 12.5A (LRS Series 150W 12V)

Your electronic devices will need this LRS-150-12 AC to DC power supply from MEAN WELL to convert alternating currents into useful direct currents to operate. It has a voltage of 12 V and maximum output power of 150 W. This part's single output can handle a current up to 12.5 A. This part has a temperature range of -30 °C to 70 °C.
EU RoHS: Compliant
ECCN (US): EAR99

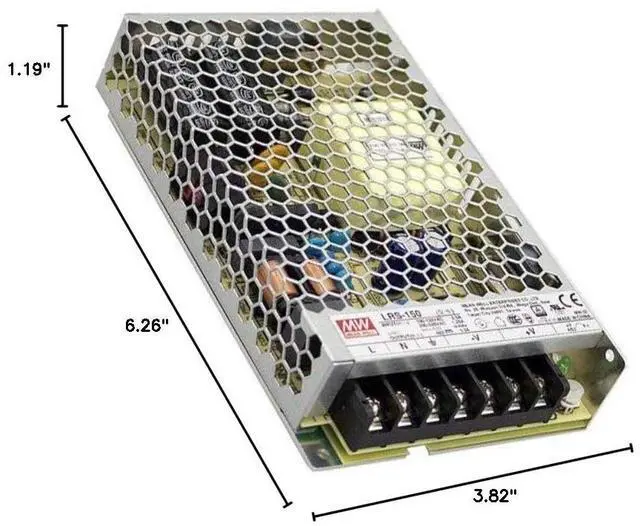

Package Height: 30mm
Package Width: 97mm
Package Length: 159mm
Mounting: Screw
PCB changed: 7
Type: Switching
Style: Enclosed
Input/Output Type: AC/DC Number of
Outputs: 1
Output Type: Fixed
Output Voltage (V): 12
Output Current (A): 12.5
Output Power (W): 150 Minimum AC
Input Voltage (V): 85 Maximum AC
Input Voltage (V): 264 Minimum DC
Input Voltage (V): 240 Maximum DC
Input Voltage (V): 370 Minimum
Isolation Voltage: 3750VAC
Line Regulation: 0.5 %
Load Regulation: 0.5 %
Maximum Input Current (A): 2.8 (Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±1
Efficiency (%): 87.5 (Typ)
Configurable: No Input
Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: Yes
Ripple & Noise: 150mV (Max)
Medical: No Minimum
Operating Temperature (°C): -30
Maximum Operating Temperature (°C): 70
Product Weight (g): 480
Pin Count: 7 You could go to MEAN WELL company website, click "Service" and choose "Quality Control Inspection Report", input S/N number to get the test report and lot information. About the quotation for batch order, please contact with the seller directly.
