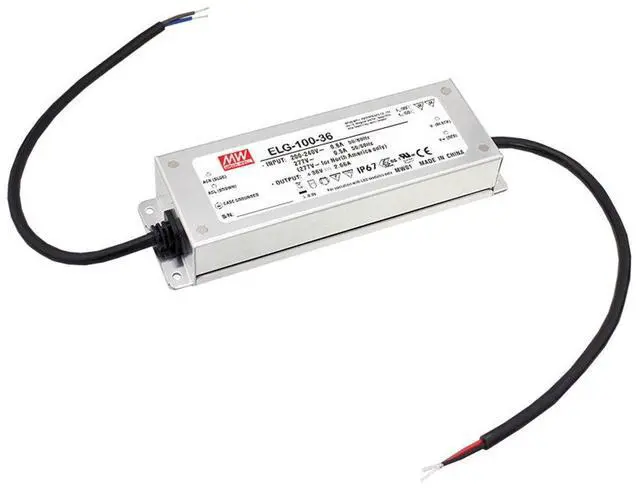

MW Mean Well ELG-100-42B 42V 2.28A 95.76W Single Output Switching LED Power Supply with PFC
Limited time offer, ends 07/07 By NaisTechnology
- Constant voltage+constant current modes; No load / Standby power consumption <0.5W; Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires; Suitable for dry / damp / wet locations; 5 years warranty
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features Constant voltage+constant current
BE-Type: IP67 rated. 3 in 1 dimming function and 15V/400mA auxiliary output (ELG-150 only) Optional CCC models available 5 years warrantymodes Universal AC input (up to 305VAC) / Full range High efficiency up to 91% No load / Standby power consumption < 0.5W Meet 6KV surge immunity level (IEC61000-4-5) Class 2 power unit Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires Suitable for dry / damp / wet locations Suitable for LED lighting and street lighting applications
Protections: Short circuit / Over current / Over voltage / Over temp.
Multiple models for choice:
A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer
B-Type: IP67 rated. Constant current level adjustable through output cable with built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance)
Blank-Type: IP67 rated. Cable for I/O connection
D2-Type: IP67 rated. Smart timer dimming function*, contact MEAN WELL for details
DA-Type: IP67 rated. DALI control technology
BE-Type: IP67 rated. 3 in 1 dimming function and 15V/400mA auxiliary output (ELG-150 only) Optional CCC models available 5 years warrantymodes Universal AC input (up to 305VAC) / Full range High efficiency up to 91% No load / Standby power consumption < 0.5W Meet 6KV surge immunity level (IEC61000-4-5) Class 2 power unit Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires Suitable for dry / damp / wet locations Suitable for LED lighting and street lighting applications
Protections: Short circuit / Over current / Over voltage / Over temp.
Multiple models for choice:
A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer
B-Type: IP67 rated. Constant current level adjustable through output cable with built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance)
Blank-Type: IP67 rated. Cable for I/O connection
D2-Type: IP67 rated. Smart timer dimming function*, contact MEAN WELL for details
DA-Type: IP67 rated. DALI control technology
