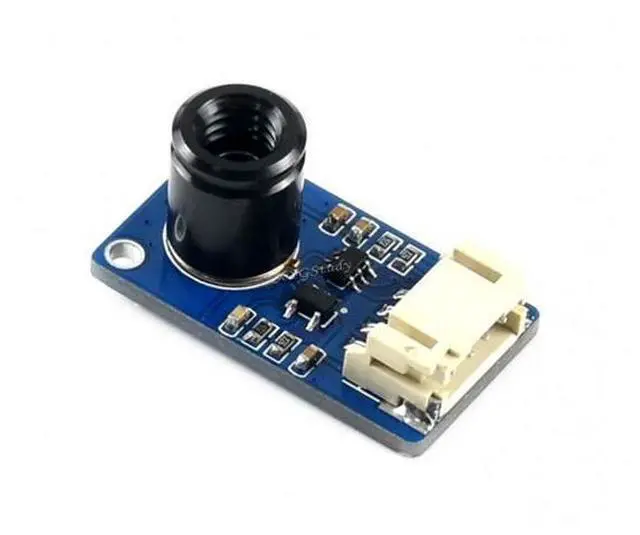

MLX90640 IR Array Thermal Imaging Camera 32×24 Pixels 55° Field of View I2C Interface 3.3V/5V Compatible with Raspberry Pi (ESP32) STM32 @XYGStudy (MLX90640-D55 Thermal Camera)
Limited time offer, ends 08/22 By TERRA HAVEN

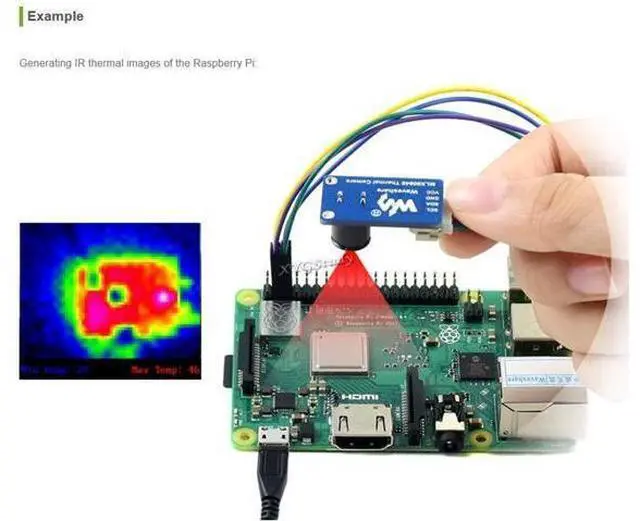

- Part Number: MLX90640-D55 Thermal Camera; This is a 32×24 pixels, 55° field of view, IR array thermal imaging camera, communicating via I2C interface. It is compatible with 3.3V/5V operating voltage, supports host platforms such as Raspberry Pi/Arduino(ESP32)/STM32, etc.; By utilizing the MLX90640 far-infrared thermal sensor array, this module can detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images. Due to the small form factor, it can be easily integrated into miscellaneous industrial or intelligent control applications.; Adopts MLX90640 far-infrared thermal sensor array, 32×24 pixels, Communicating via I2C interface, configurable to fast mode (up to 1MHz data rate); Noise Equivalent Temperature Difference (NETD) 0.1K RMS @1Hz refresh rate, Onboard voltage translator, compatible with 3.3V/5V operating voltage, Comes with development resources and manual (exa
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Specifications Operating voltage: 3.3V /5V
Operating current: 23mA
Communication interface: I2C (address 0x33)
Field of view (Horizontal×Vertical): 55°×35° (narrow angle FOV, suit for long range measuring)
Operating temperature: -4085
Target temperature: -40300
Resolution: ±1
Refresh rate: 0.5H z~64Hz (programmable)

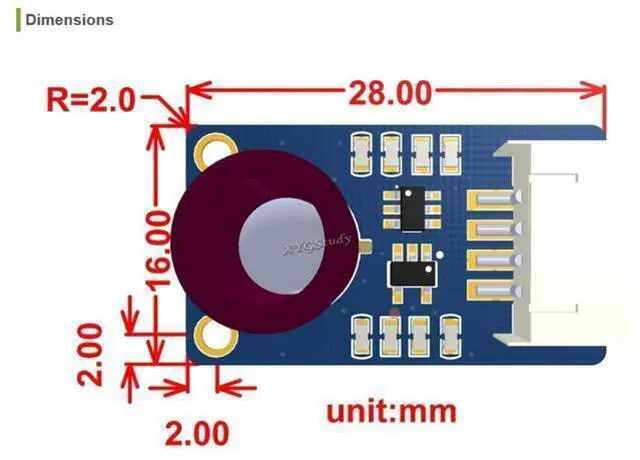

Dimensions: 28mm×16 mm
Mounting hole size: 2.0 mm Applications High precision non-contact temperature measurements IR thermal imaging devices, IR thermometers Smart home, intelligent building, intelligent lighting Industrial temperature control, security monitoring, intrude/movement detection Pinouts In the case of working with
MCU: VCC 3.3V / 5V GND GND SDA MCU. I2C data line SCL MCU. I2C clock line
Package Contains (Weight: 0.006 kg) MLX90640-D55 Thermal Camera x1 PH 2.0 4PIN wire x1 For more resources you may need, pls contact me via Amazon message, i will send you then via attachment.
Operating current: 23mA
Communication interface: I2C (address 0x33)
Field of view (Horizontal×Vertical): 55°×35° (narrow angle FOV, suit for long range measuring)
Operating temperature: -4085
Target temperature: -40300
Resolution: ±1
Refresh rate: 0.5H z~64Hz (programmable)
Dimensions: 28mm×16 mm
Mounting hole size: 2.0 mm Applications High precision non-contact temperature measurements IR thermal imaging devices, IR thermometers Smart home, intelligent building, intelligent lighting Industrial temperature control, security monitoring, intrude/movement detection Pinouts In the case of working with
MCU: VCC 3.3V / 5V GND GND SDA MCU. I2C data line SCL MCU. I2C clock line
Package Contains (Weight: 0.006 kg) MLX90640-D55 Thermal Camera x1 PH 2.0 4PIN wire x1 For more resources you may need, pls contact me via Amazon message, i will send you then via attachment.
