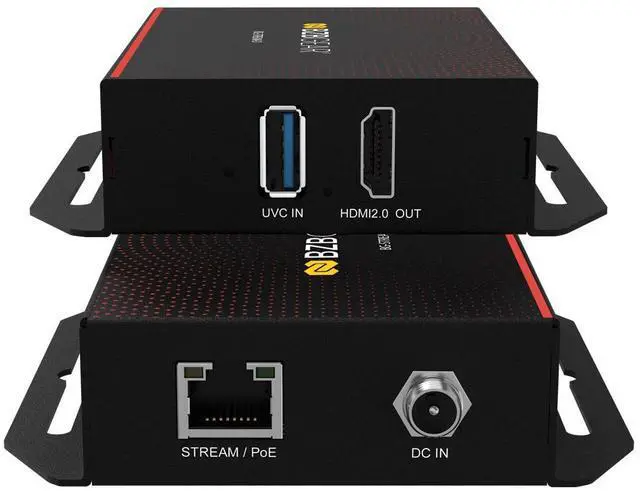

IP/UVC to HDMI 2.0 POE Decoder Supports H.264/H.265/AVC
Versatile Connection Options | High-Quality Video Processing | Comprehensive Audio Support
The BG-STREAM-D IP/UVC to HDMI 2.0 is a versatile and compact video decoder that bridges the gap between various video input sources and HDMI output. Featuring a single RJ45 input, USB 3.0 Type A (UVC) input, and HDMI 2.0 output, this device is ideal for high-definition video processing and streaming. It is powered through a secure locking DC jack, ensuring stable and reliable operation.
Versatile UVC Connection Options
Supports IP, USB-A 3.0, and HDMI 2.0 connections; ensures compatibility with a wide range of devices
Video Processing and Compression
Capable of resolutions up to 4K@60Hz with downscaling ability; supports H.265/H.264/AVC encoding
Comprehensive Audio Support
Utilizes AAC-LC codec with a configurable bit rate range from 32Kbps to 384Kbps
Advanced Network Capabilities
Includes DHCP support and Power over Ethernet (PoE) functionality
Extensive Protocol Support
Covers RTSP over UDP/TCP/Multicast/HTTP, RTMP, TS over IP, HLS, Dante AV-H (specific model only), and NDI|HX3 (specific model only)
Web UI and Firmware Upgradeable
Features an accessible web UI for easy system configuration; allows for easy updates to enhance functionality
Real-Time Mode Recording
Enables immediate recording functionality
Compact and Durable Design
Includes a secure locking DC jack power input

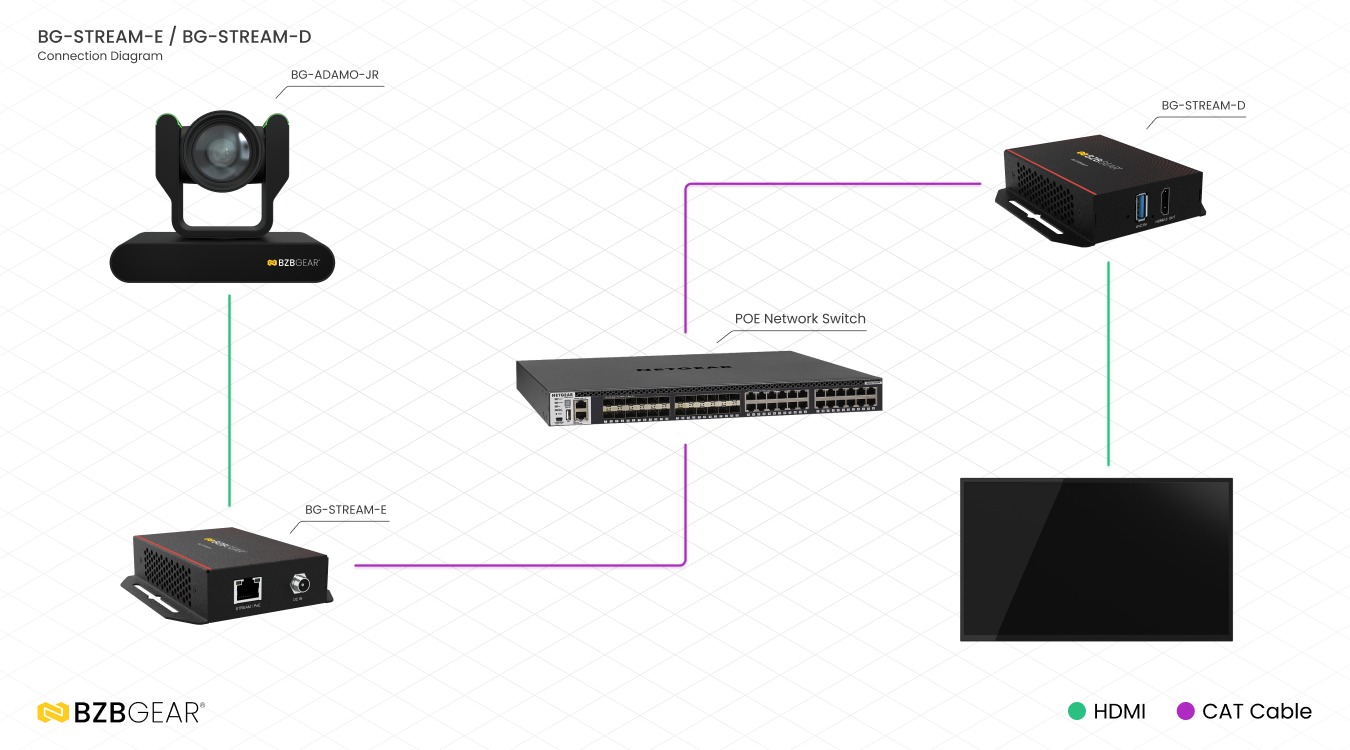

Connection Diagram
A BG-STREAM-E encoder connects a camera (BG-ADAMO-JR) over HDMI and sends it through a PoE network switch over CAT cable. The BG-STREAM-D decoder receives the stream from the switch and outputs it over HDMI to a display.

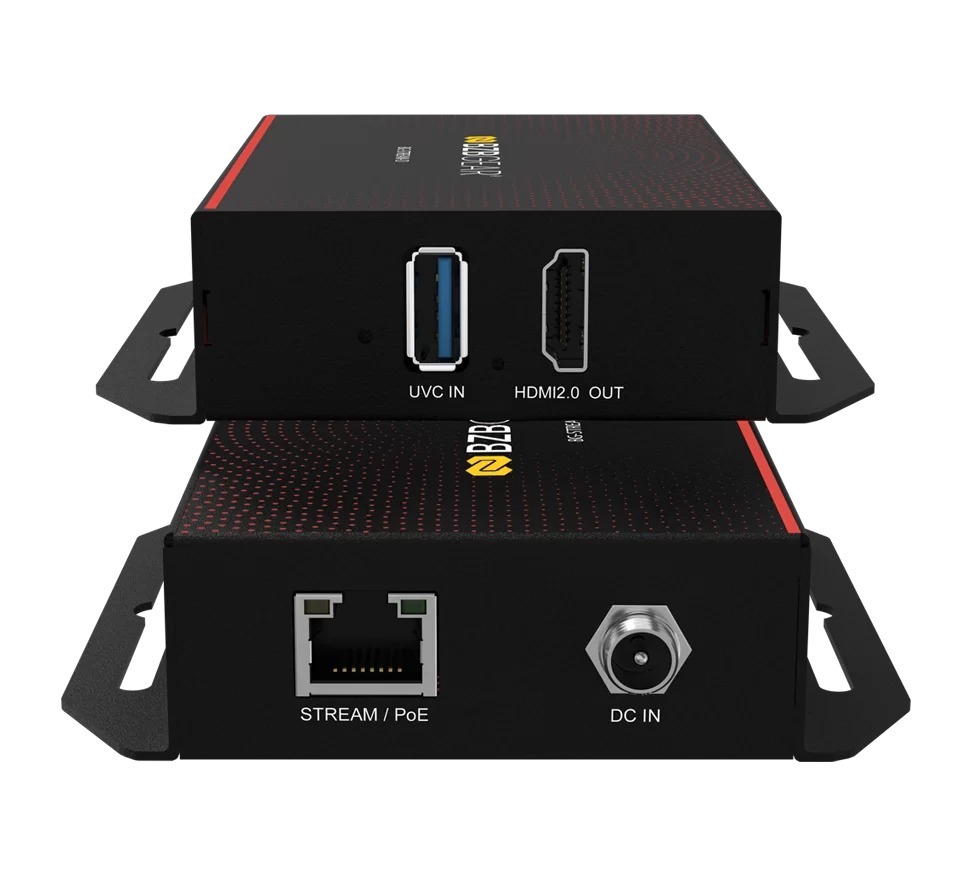

Interfaces
1. Factory Restore Button - Use a pin to press and hold for 3 seconds
2. UVC In - UVC source input
3. HDMI Out - HDMI 2.0 output for viewing or monitoring
4. Stream/PoE In - PoE enabled ethernet port
5. DC Power In - 12V DC power supply input
| Max FPS | 4096x2160p@60/50fps |
|---|---|
| Recording Modes | Hardware Compression, Real-Time Mode |
| Input Interfaces | Video: 1x RJ45 (RTSP/RTMP/HLS/TS/SRT/NDI HX/Dante AV-H Support); 1x USB 3.0 Type A (UVC) input |
| Output Interfaces | Video: 1x HDMI 2.0 |
| Video Support | H.265/H.264/AVC, Baseline/Main/High Profile Supported HDMI output Resolutions: 4096x2160p@60/50fps; 4096x2160p@30/25/24fps; 3840x2160p@60/50fps; 3840x2160p@30/25/24fps; 1920x1080p@60/50fps; 1920x1080p@30/25/24fps; 1920x1080i@60/50fps; 1280x720p@60/50fps; 1280x1024p@60fps; 1280x960p@60fps; 1024x768p@60fps; 800x600p@60fps; 640x480p@60fps; 720x480p@60fps; 720x576p@50fps |
| Audio Support | AAC-LC; Configurable bit rate range from 32Kbps to 384Kbps; Sample rate: 48KHz, 16bit |
| Network Features | 1x RJ45 for 10/100/1000Mbps Ethernet; DHCP Client |
| Streaming Protocols | NDI Support (Separate License with NDI Required); Dante AV-H (Separate License with Dante AV-H Required); RTSP over UDP/TCP/Multicast/HTTP; RTMP (Publish); TS over IP; HLS |
| Power Supply | 12V DC input; POE input |
| Unit Dimensions | 4.1in x 2.8in x 1in [103.8mm x 71.2mm x 26mm] |
| Package Contents | 1x BG-STREAM-D; 1x 12V DC Adapter |
