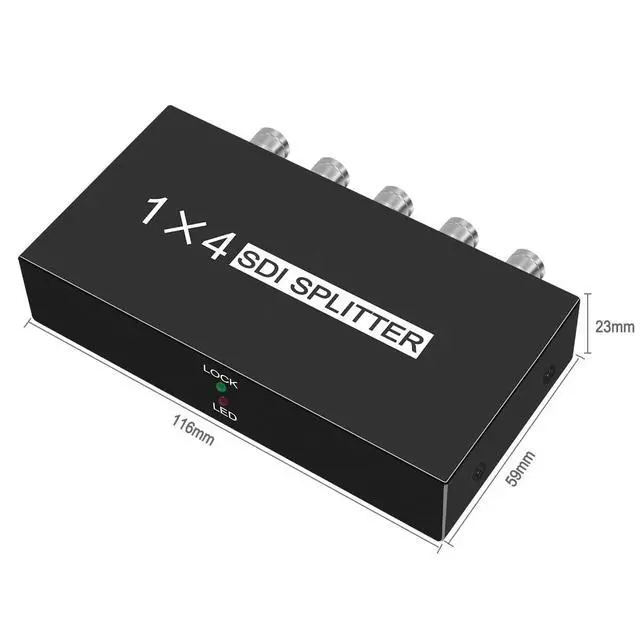

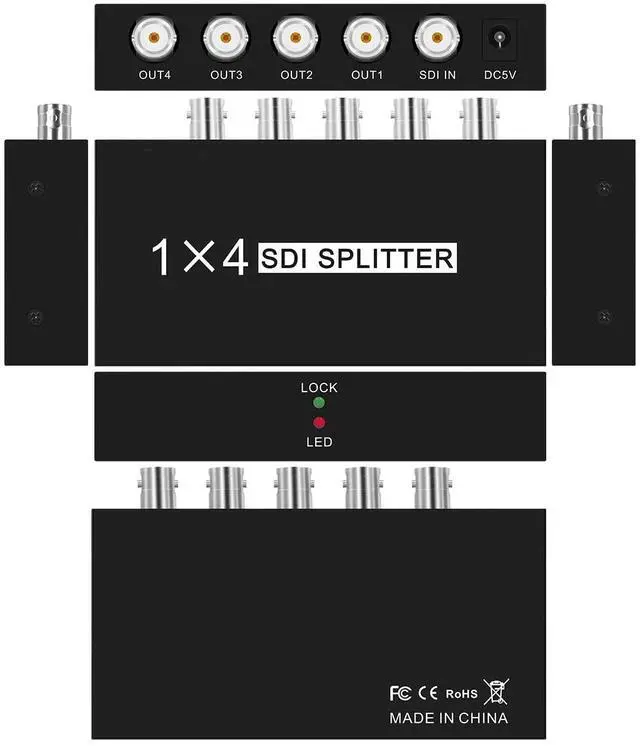

Vszerda SDI Splitter 1x4 Multimedia Split SDI Extender Adapter Support HD-SDI, SD-SDI and 3G-SDI Signals for Projector Monitor Camera1 sdi Input and 4 sdi Output
- Working temperature: 0~60
- Power: DC 5V /1A (Support 5V Voltage Input)
- Up to four outputs could save you lots trouble of setting other signals when you want to enjoy other SDI programs.
- It supports full range of SDI signal formats including SD-SDI, HD-SDI, 3G-SDI with easy operation and high reliability. This splitter can be widely used in SDI broadcast room, no-linear editing field, CCTV security and training showroom etc
- 1X4 SDI Splitter: Distributes 1 SDI signal to 4 simultaneous SDI output signals identical to the original input which is displayed on four devices simultaneously.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
1.SDI splitter function After 3 installation is done,the splitter can start normal working.It can support SD-SDI(270Mbps),HD-SDI(1.485Gbps) and 3G-SDI(2.97Gbps) and distribute to 4 simultanous SDI outputs.
2. SDI repeaterfunction This splitter provides equalized and re-cloked transmission,and supports signal input and output distances of up to 400meters for SD-SDI signal,200meters for HD-SDI signal and 100meters for 3G-SDI signal. Note:Tested by Belden 1694A cable,the distance may vary if by cables of different specification.
3. Valtage design SDI splitter applies votage inside design.It can support DC 5V voltage input (max power is 5V) and is more suitable for projects.

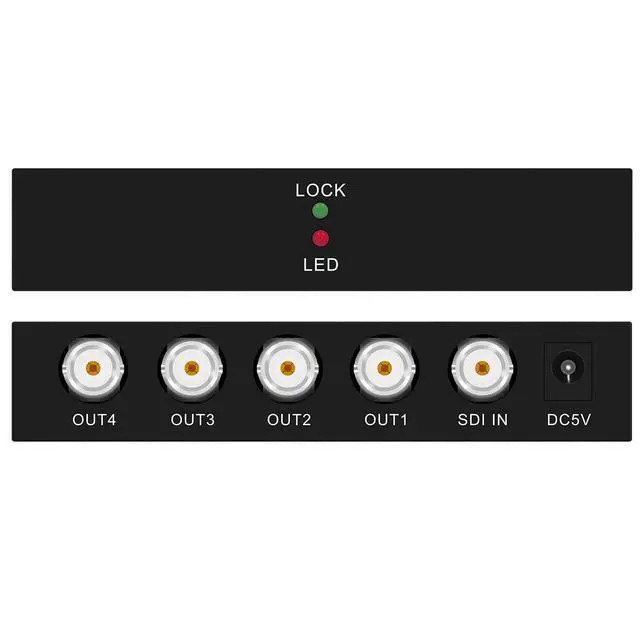

4. Intelligent design It is plug and play and can detect SDI signal automatically.Indicator LED turns blue when correct SDI signal inputs,turns red when no signal or incorrect signal inputs and allows project customer to find the problem easily.
Specifications
1. SDI input: BNC x 1 (HD-SDI/SD-SDI/3G-SDI)
2. SDI output: BNC x 4 (HD-SDI/SD-SDI/3G-SDI)
3. SDI standard: Compatible with 3G-SDI,SMPTE 424M,HD-SDI SMPTE292M and SD-SDI SMPTE259-C
4. SDI signal format: SD-SDI/HD-SDI/3G-SDI
5. SDI speed rate: 143~2970MB/s
6. SDI Impedance: 75
7. SDI input resolution: 480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ;
8. SDI output resolution: 480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ;
Package Includings:
1 x SDI 1x4 splitter
1 xUS power adapter
