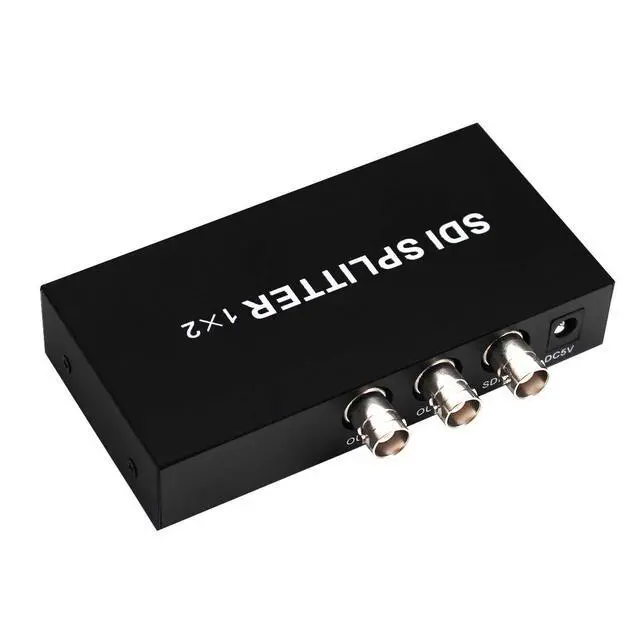

Vszerda SDI Splitter 1x2 Multimedia Split SDI Extender 1 to 2 Ports Adapter Support 1080P TV Video for Projector Monitor Camera

Features:

1.SDI splitter function After 3 installation is done,the splitter can start normal working.It can support SD-SDI(270Mbps),HD-SDI(1.485Gbps) and 3G-SDI(2.97Gbps) and distribute to 2 simultanous SDI outputs.

2. SDI repeaterfunction This splitter provides equalized and re-cloked transmission,and supports signal input and output distances of up to 400meters for SD-SDI signal,200meters for HD-SDI signal and 100meters for 3G-SDI signal. Note:Tested by Belden 1694A cable,the distance may vary if by cables of different specification.

3. Wide valtage design SDI splitter applies wide votage inside design.It can support DC 5V~30V voltage input (lowest power is 5V) and is more suitable for projects.

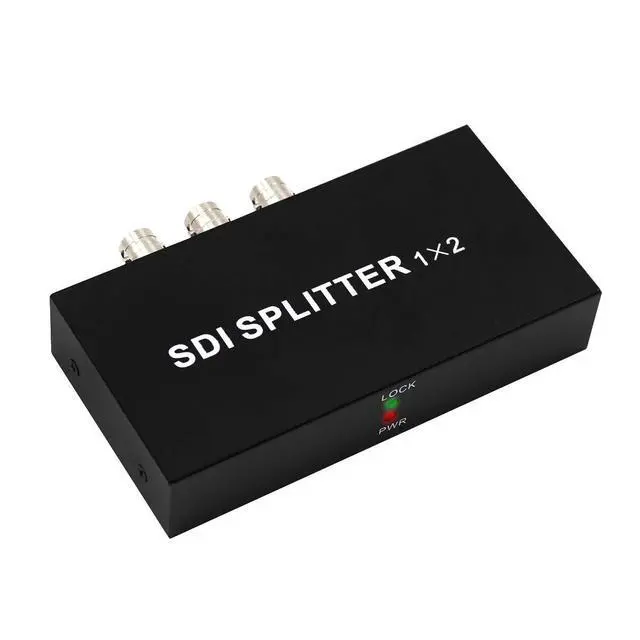

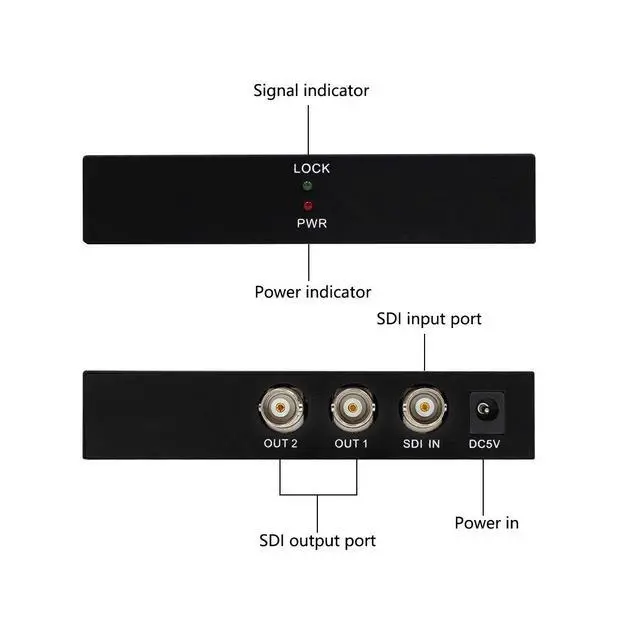

4. Intelligent design It is plug and play and can detect SDI signal automatically.Indicator LED turns blue when correct SDI signal inputs,turns red when no signal or incorrect signal inputs and allows project customer to find the problem easily.

Specifications

1. SDI input: BNC x 1 (HD-SDI/SD-SDI/3G-SDI)

2. SDI output: BNC x 2 (HD-SDI/SD-SDI/3G-SDI)

3. SDI standard: Compatible with 3G-SDI,SMPTE 424M,HD-SDI SMPTE292M and SD-SDI SMPTE259-C

4. SDI signal format: SD-SDI/HD-SDI/3G-SDI

5. SDI speed rate: 270~2970MB/s

6. SDI Impedance: 75

7. SDI input resolution: 480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ;

8. SDI output resolution: 480i@60HZ, 576i@50HZ, 720P@50HZ, 720P@60HZ, 1080i@50HZ; 1080i@60HZ; 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ, 1080P@60HZ;

Package Included:

1 x SDI 1x2 Splitter

1 xUS power adapter

1 x User manual
