H.265 H.264 HD HDMI VGA CVBS Video Decoder,HTTP RTSP RTMP UDP HLS M3U8 SRT Converter IP Streaming to 3G for Decoding Encoder and Camera Facebook YouTube Ustream Wowza Platforms

H. 265 H. 264 HDMI VGA CVBS Decoder is our professional HD audio & video decoding device. It s for decoding network video&audio stream to HDMI/VGA/CVBS (with stereo audio) local display output. It can receive the RTMP RTSP UDP HTTP HLS FLV network stream from our video encoder or other media server.

Support H. 265/H. 264 max 3840*2160@30P or 1920*1080@60P network stream decoding
Support RTMP RTSP UDP HTTP HLS FLV TS protocols
Support HDMI VGA CVBS local output
Support output video rotate 90/180/270 degree, OSD functions
Support Multi-channel decoding at the same time

Output

Video: 1X HDMI(support HDMI 1.4 and HDCP 1.4 ), 1X VGA, 1X CVBS, 1X Audio
Output Resolution: 3840×2160@30hz1080P@60/1080P@50/1080P@30720P@60 720P@50 576P@50 480P@60 1280×1024@601280×800@601024×768@60800×600@60 and so on
Decoding: H. 265/H. 264
Output: 1 channel 4K decoding, 4 channels 1080P decoding, 9 channels 720P decoding
Audio

Decoding format: AACMP3
Stereo: Adjustable sound volume
System

RJ 45: 100 M internet access

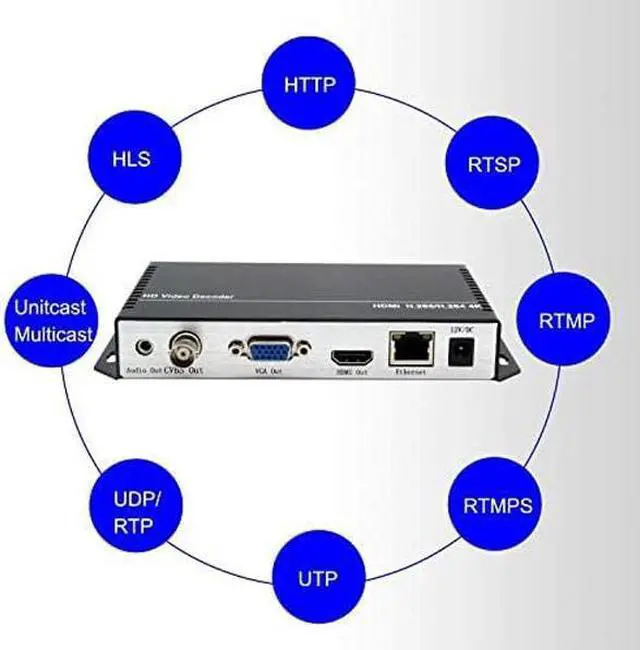

Protocol: HTTP, RTSP, RTMP, RTMPS, SRT, UTP, UDP/RTP
Interface: WEB operation interface
Upgrade: Software upgrading through the internet
General Parameters

Dimension: (width x length x height) 165*85*25mm
Weight: 0.21KG per set
Temperature: 0~45 (work), -20~80 (storage)
Power Supply: Stand-alone: 12V/DC 1A
Power Dissipation: <5W/1 channel

High Quality

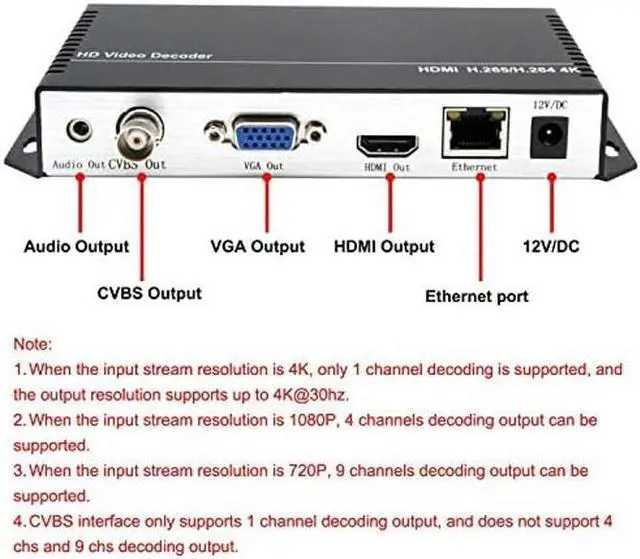

1XHDMI output, 1X VGA output, 1XCVBS output, 1X audio output
MPEG1 Audio Layer 2
1000M network interface uses full-duplex mode
Support HTTP, RTSP, RTMP, RTMPS, UTP, UDP/RTP protocol
WEB interface, English and Chinese is optional for configuration interface
WEB interface management authority
Support remote management in WAN (WEB)
Support resolution customized settings
Support one key to restore the factory configuration
Support OEM/ODM, secondary development

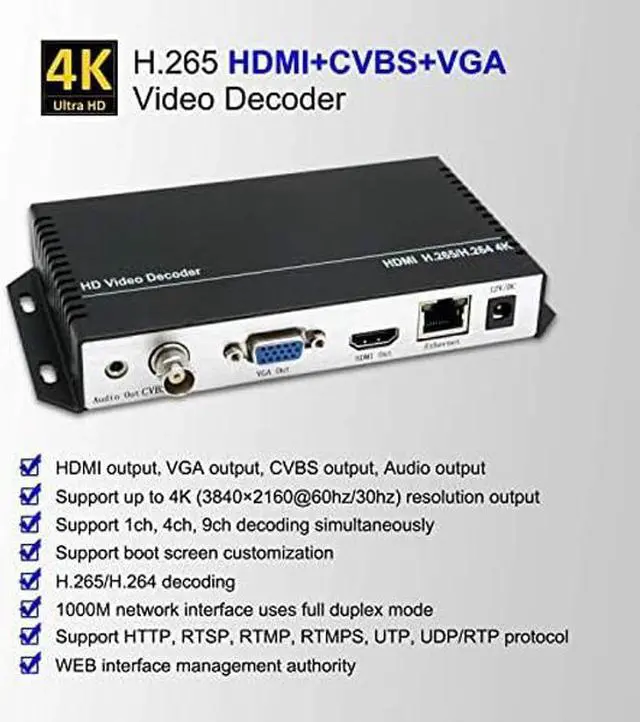

Product Feature
Support up to 4K (3840×2160@60hz/30hz) resolution output
Support to set the cache
Support 1ch, 4ch, 9ch decoding simultaneously
Support boot screen customization
H. 265 Baseline Profile decoder
H. 264 Baseline Profile decoder
H. 264 Main Profile decoder
H. 264 High Profile decoder
MJPEG/JPEG Baseline decoder
MPEG1 Audio Layer 2
Application
Internet TV (IPTV) HD capture system
Internet video conference front-end capture
Digital signage HD streaming server
Operation room live broadcast, recording system
Teaching broadcast, recording system
Digital court HD broadcast, recording system
Network monitoring system platform front-end capture
