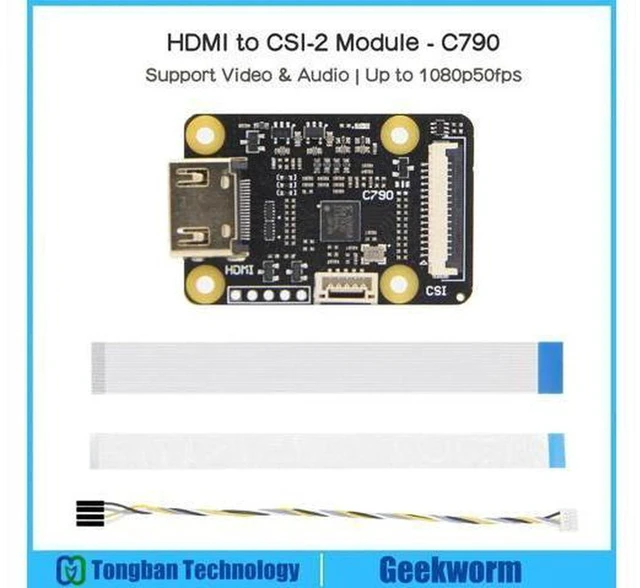

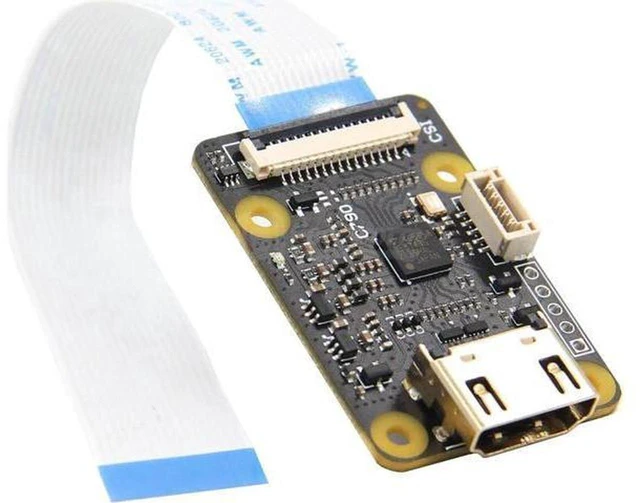

AJMRTC C790 HDMI to CSI-2 Adapter Module, TC358743XBG Bridge with I2S Audio, 1080P@60fps Video Capture for Raspberry Pi 5 4B 3B+ Zero CM4 PiKVM BliKVM Build
- - Built with TC358743XBG chip, converts HDMI input to MIPI CSI-2 video and I2S audio signal

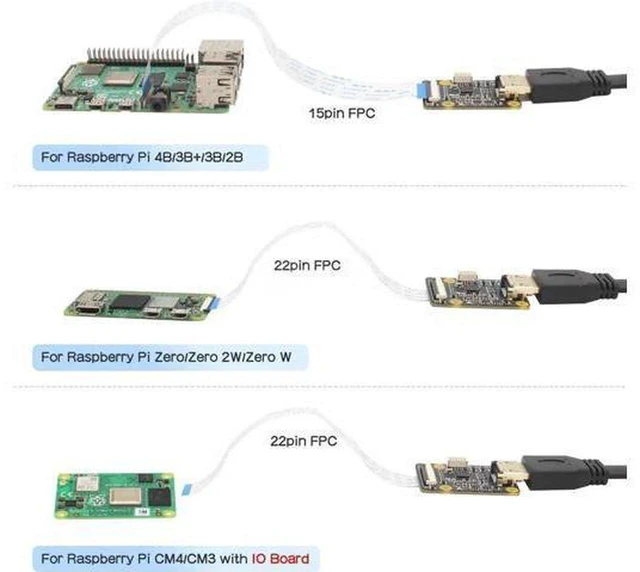

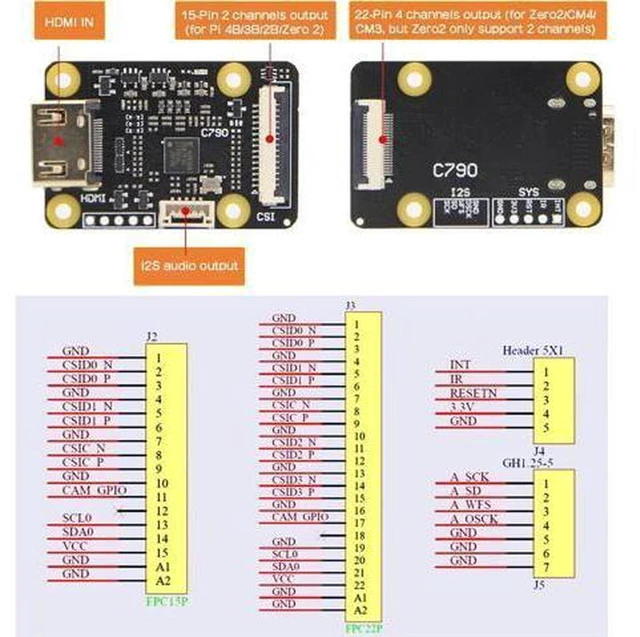

- - Dual CSI-2 FPC connectors: 15Pin 1.0mm and 22Pin 0.5mm for flexible Raspberry Pi wiring
- - Supports up to 1080P@60fps on CM4; 1080P@50fps for Pi4 / Zero (2-lane limit)
- - Anti back-power protection design prevents reverse current damage to CSI host port
- - Compact low-power 3.3V module, ideal for PiKVM, BliKVM, video capture and streaming projects
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

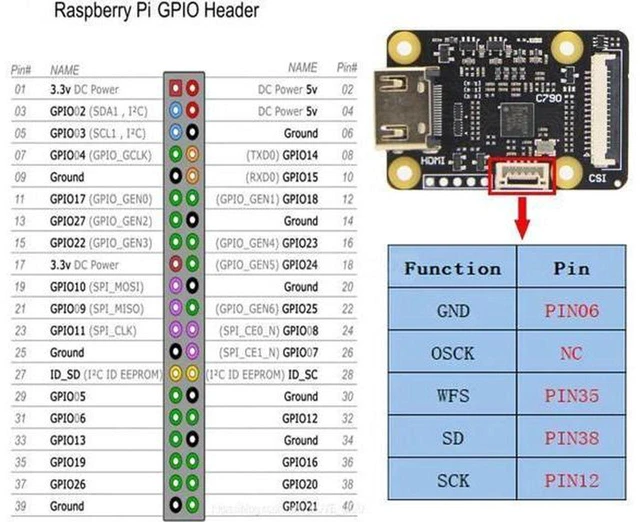

AJMRTC C790 HDMI to CSI-2 converter feeds HDMI video and audio into the Raspberry Pi CSI camera port. It eliminates the need for USB capture dongles for KVM over IP builds. The on-board I2S audio output keeps sound synchronized with video. Two different FPC CSI connectors fit standard Raspberry Pi camera cables. It works with mainstream PiKVM and BliKVM open-source firmware. HDMI cable and Raspberry Pi are sold separately.
Specifications
- Brand: AJMRTC
- Model: C790
- Chipset: TC358743XBG
- Input: HDMI Type-A
- Output: MIPI CSI-2 Video + I2S Digital Audio
- Max Resolution: 1080P@60fps (CM4), 1080P@50fps (Pi4 / Zero)
- CSI Connector: 15Pin FPC (1.0mm pitch), 22Pin FPC (0.5mm pitch)
- Power Supply: 3.3V DC
- Feature: Anti back-power protection
- Supported Device: Raspberry Pi 5, 4B, 3B+, 3B, Zero, Zero 2W, CM4
- Supported OS: Linux
- Application: PiKVM, BliKVM, KVM Over IP, Video Capture, Live Streaming

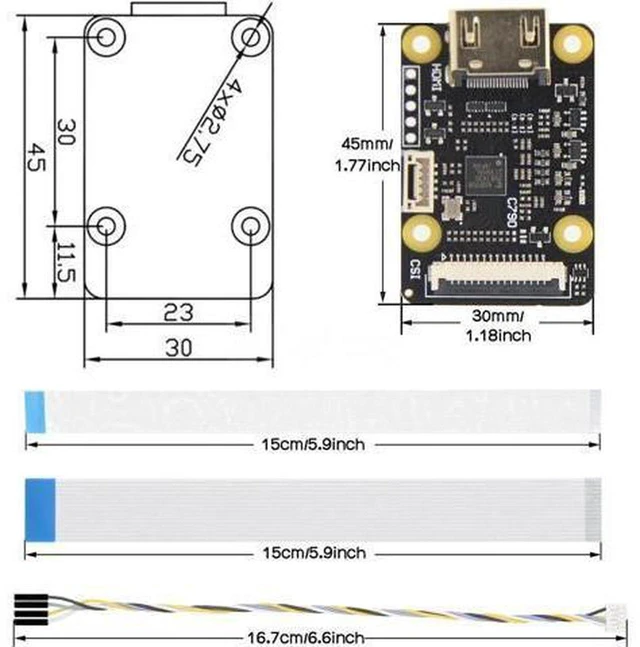

- PCB Size: 45mm × 30mm
- Weight: 10g
- Working Temperature: -10 ~ 60
- Note: Frame rate limited by CSI lane count of your Raspberry Pi board
