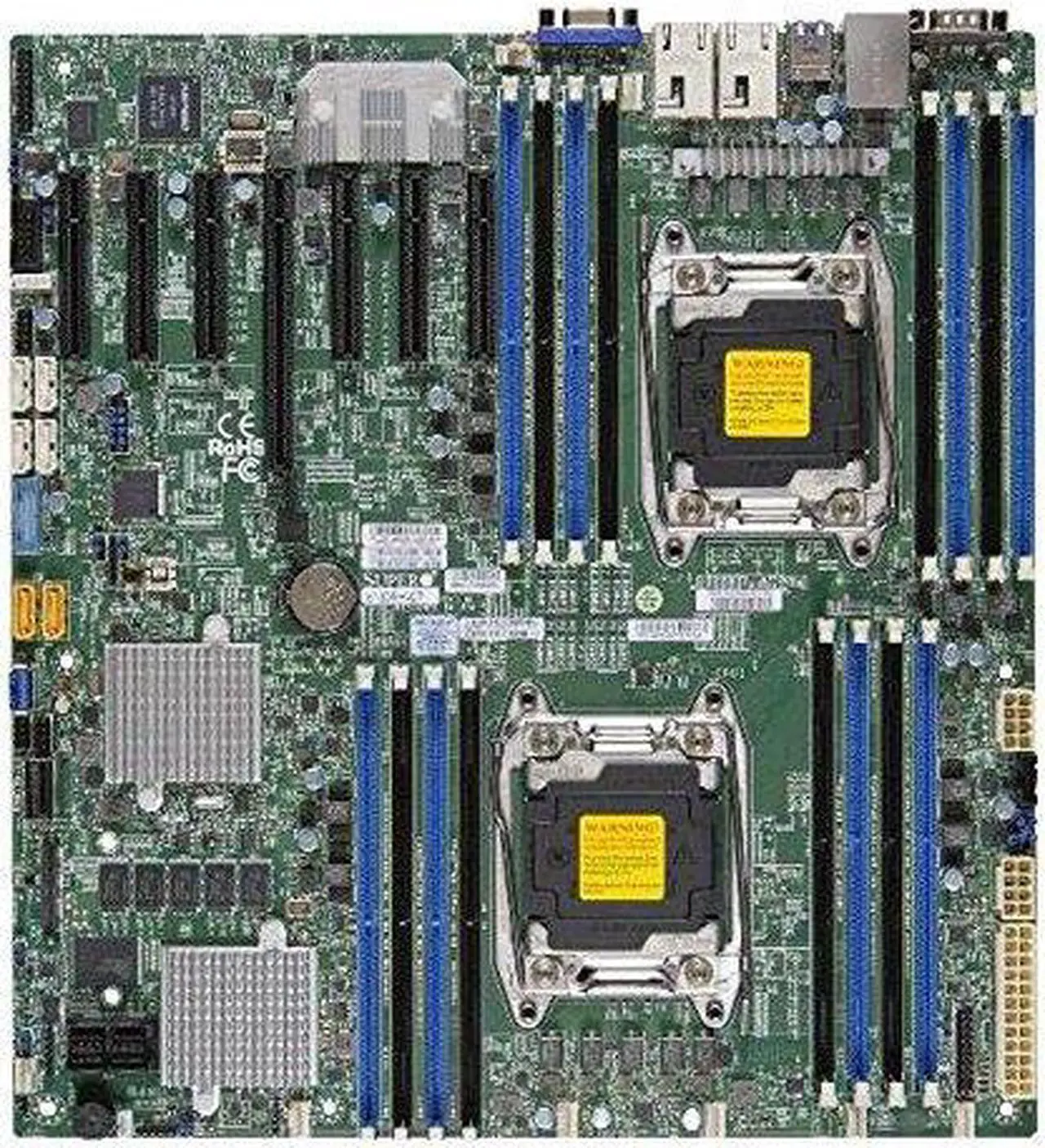

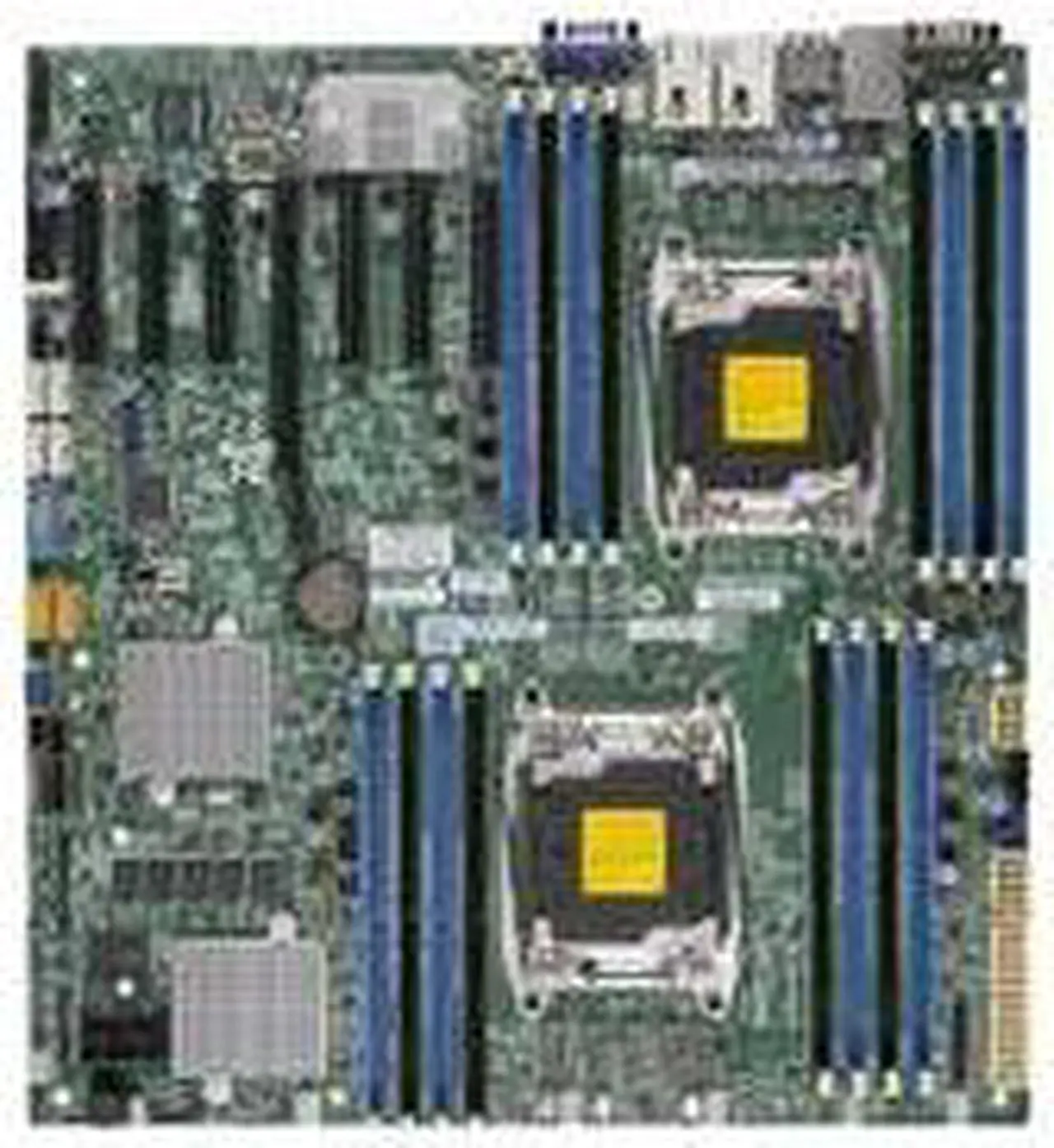

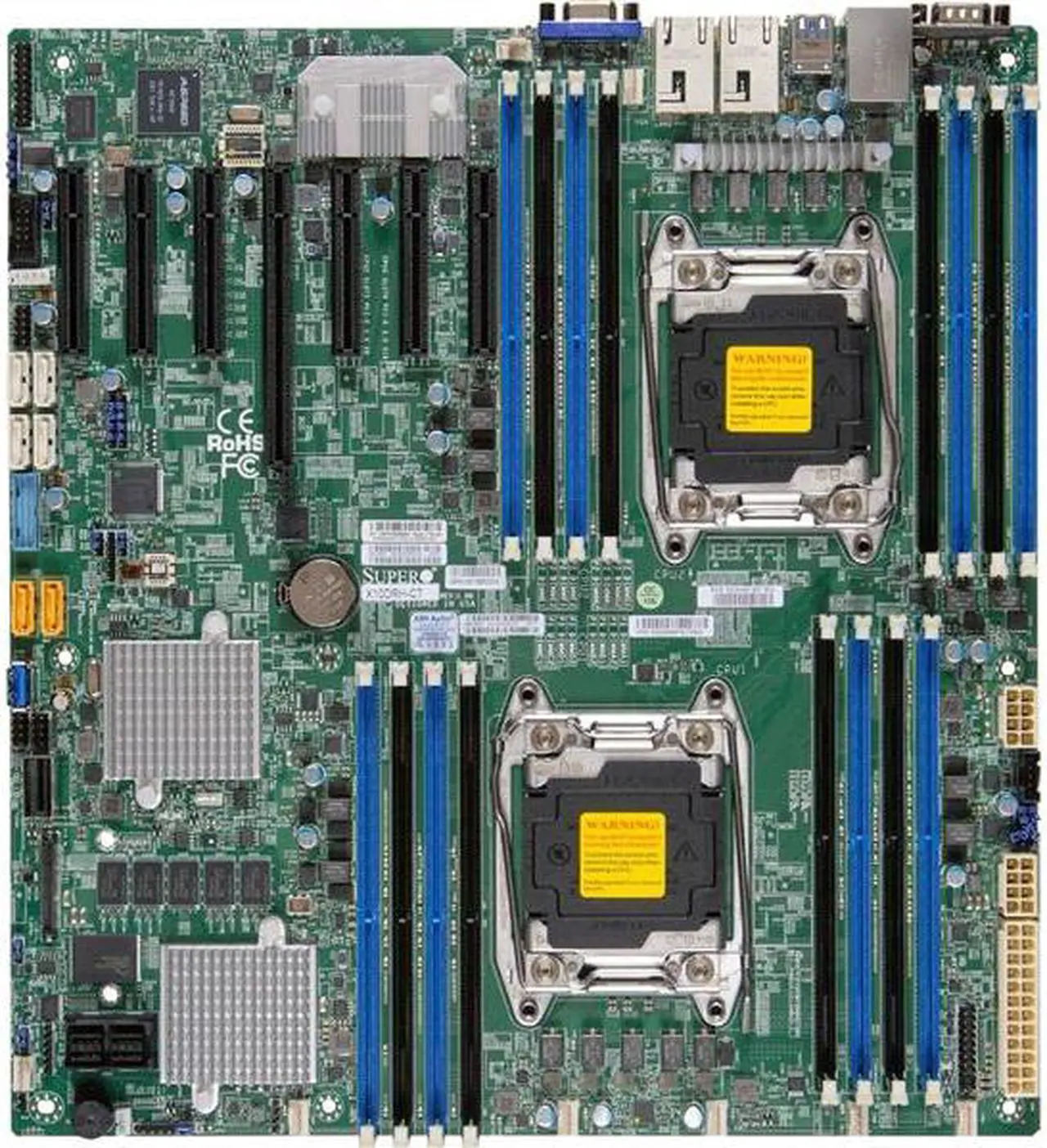

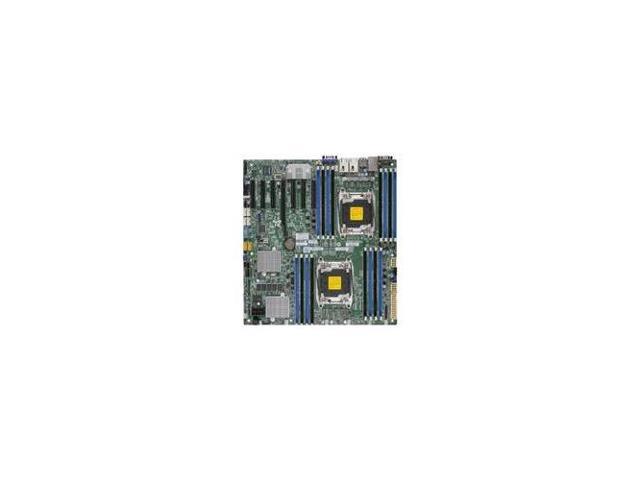

SUPERMICRO X10DRH-CT-O Supermicro X10DRH-CT-O Dual LGA2011 Intel C612 DDR4 SATA3 and SAS3 and USB3.0 V and 2GbE EATX Server Motherboard

SUPERMICRO X10DRH-CT-O Supermicro X10DRH-CT-O Dual LGA2011 Intel C612 DDR4 SATA3 and SAS3 and USB 3.0 V and 2GbE EATX Server
Motherboard
MPN: X10DRH-CT-O
UPC: 672042171026

Specifications
Mfr
Part Number:
X10DRH-CT-OCPU: Dual LGA2011Support Intel Xeon E5-2600 v3 Family Processors
Support up to 145W TDP
Support up to 18 Cores
Support up to 45MB Cache
QPI up to 9.6
GT/sChipset: Intel C612 Express
Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG
Memory
Slots: 1x PCI-Express 3.0 x16 Slots, 6x PCI-Express 3.0 x8
Slots
SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10SAS: 8x SAS3 Ports, Support RAID 0, 1, 5, 6, 10, 50, 60Video: Aspeed AST2400 BMC
Graphics
LAN: Intel X540 Dual-Port 10-Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI)
Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: EATX, 12.0 x 13.0 inch / 30.5 x 33.2 cmRoHS Compliant
