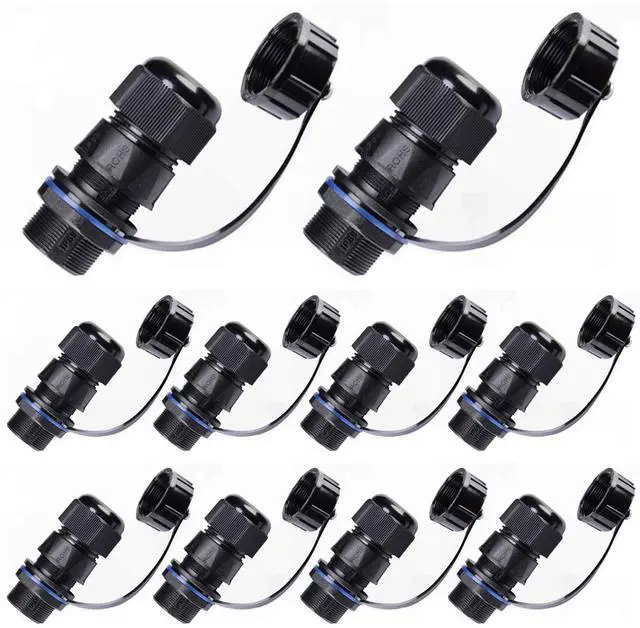

ANMBEST IP67 Level Waterproof and Dustproof RJ45 CAT6 Female to Female Coupler
Stable Connection High Speed Transmission
- Plug and connect to join two Ethernet patch cables. No tools are required to connect cables. Plug and play.
- Cat6 specification supports maximum 1Gbps(1000Mbps)Bandwidth 250MHZ signal transmission speed, Compatible with Cat5E/Cat5 ethernet cable.
- It is injection molded from PA66 nylon material, flame retardant, UV resistant, anti-aging, and has a longer service life.
- Perfect solution for outdoor equipment like IP camera, CCTV to prevent water penetration.
Stable Connection
The copper needles uses brass solid terminals and the surface is gold-plated. Stabilize the current and reduce signal loss.
Durable
The RJ45 connector is made of PA66 nylon material, flame retardant, UV resistant, and anti-aging.
IP67 Waterproof
IP67 Waterproof at one ends, Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture, dirt and insects for quality connections.
Specifications
Installation Method
STEP1

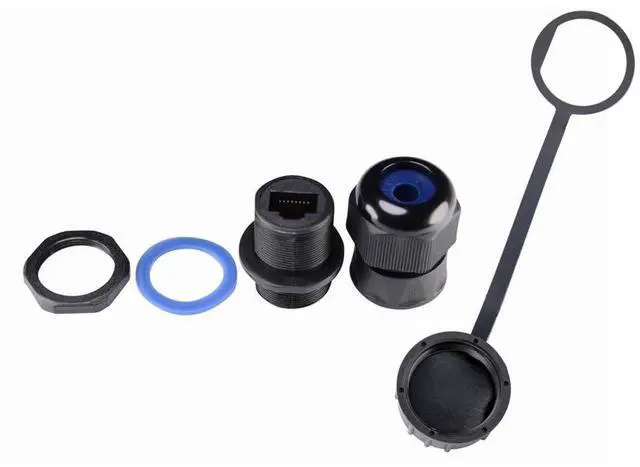

Disassemble the connector and prepare the network cable
STEP2
Put the female seat into the mounting hole and put on the waterproof cover rubber ring
STEP3
The crystal heads of the network cable pass through the waterproof components in sequence
STEP4
Tighten. The installation is complete
 M22 RJ45 Waterproof Connector |  M20 RJ45 Waterproof Connector |  M20 RJ45 Waterproof Connector with Cable |  Panel Mounting RJ45 Connector |  Panel Mounting RJ45 Waterproof Connector | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Ingress Protection | IP67 | IP67 | IP67 | IP67(with cap) | IP67 |
| Size | M22 | M20 | M20 | M24 | M20 |
ANMBEST IP67 Level Waterproof and Dustproof RJ45 CAT6 Female to Female Coupler
Stable Connection High Speed Transmission
- Plug and connect to join two Ethernet patch cables. No tools are required to connect cables. Plug and play.
- Cat6 specification supports maximum 1Gbps(1000Mbps)Bandwidth 250MHZ signal transmission speed, Compatible with Cat5E/Cat5 ethernet cable.
- It is injection molded from PA66 nylon material, flame retardant, UV resistant, anti-aging, and has a longer service life.
- Perfect solution for outdoor equipment like IP camera, CCTV to prevent water penetration.
Stable Connection
The copper needles uses brass solid terminals and the surface is gold-plated. Stabilize the current and reduce signal loss.
Durable
The RJ45 connector is made of PA66 nylon material, flame retardant, UV resistant, and anti-aging.
IP67 Waterproof
IP67 Waterproof at one ends, Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture, dirt and insects for quality connections.
Specifications
| Pins | 8P8C |
| Connection Type | RJ45 |
| Transmission Category | CAT6 |
| Transfer Speed | 10 Mbps, 100 Mbps, 1000 Mbps network |
| Rated Current | 1.5A |
| Rated Voltage | 125VAC, 75VDC |
| Insulation Resistance | greater than 500MO |
| Withstand Voltage(AC.V)1min | 1000V |
| Durability | more than 500 mating&unmating cycles |
| Shell Material | nylon PA66 |
| Socket Contact Pin Material | 0.5mm diameter phosphor copper wire |
| Contact Pin Plating | 6FU gold |
| Waterproof Rubber Ring | silicone |
| Working Temperature | -40?~120? |
| Relative Humidity | less than 90% |
| Flame Retardant Rating | UL94V-0 |
Installation Method
STEP1
Disassemble the connector and prepare the network cable
STEP2
Put the female seat into the mounting hole and put on the waterproof cover rubber ring
STEP3
The crystal heads of the network cable pass through the waterproof components in sequence
STEP4
Tighten. The installation is complete
M22 RJ45 Waterproof Connector | M20 RJ45 Waterproof Connector | M20 RJ45 Waterproof Connector with Cable | Panel Mounting RJ45 Connector | Panel Mounting RJ45 Waterproof Connector | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Ingress Protection | IP67 | IP67 | IP67 | IP67(with cap) | IP67 |
| Size | M22 | M20 | M20 | M24 | M20 |
