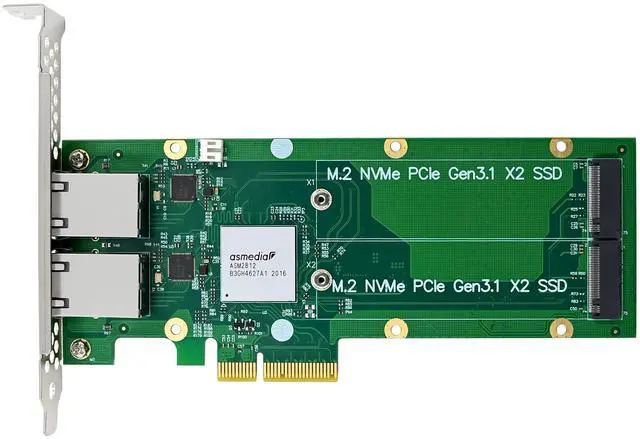

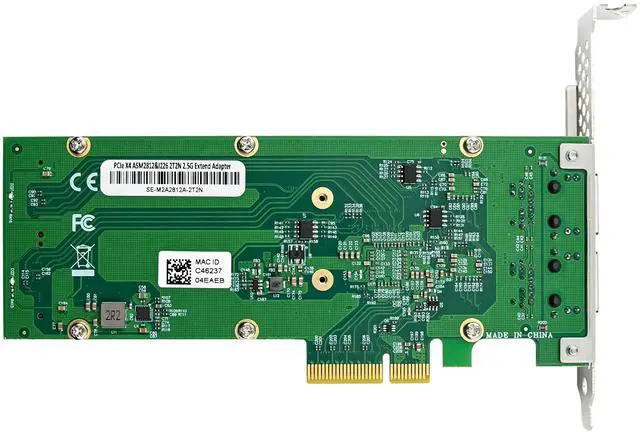

JVFYI PCIe x4 ASM2812&I226 2N2T Adapter card

Specification

Compliant with PCI Express specification Revision 3.0(8GT/s)

Supporting transfer rate of 2.5Gb,5Gb,or 8Gb per lane

Bus width: PCIe3.0 x4

Support 2x M.2 2280 NVMe with PCI Express (Gen3 x2) protocol

Support 2x 2.5G multi-Gigabit network

MDI(Copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s

Complies with the MDI standard IEEE802.3 Ethernet interface for2500BASE-T,1000BASE-T,100BASE-TX,10BASE-TE application ( IEEE802.3bz, IEEE802.3ab ,IEEE802.3u and IEEE802.3 )

IEEE802.3 Auto-negotiator

IEEE802.3x and IEEE802.3z compliant flow control support with software-controllable RX thresholds and TX pause frames

Automatic cross-over detection function (MDI/MDI-X)

IEEE 1588 Protocol and 802.1AS implementation

Supporting Time Sensitive Networking (TSN) Capabilities

Support IEEE802.3az-Energy Efficient Ethernet (EEE)

Full Wake-On-Lan support

TCP/UDP, IPv4 checksum offloads (Rx/Tx)

Transmit Segmentation offloading (TSO)(IPv4, IPv6)

Support for packets up to 9.5KB Jumbo Frames

Feature Table

Product Name PCIe x4 ASM2812&I226 2N2T Adapter card

Chipsets ASM2812&I226 x2

PCIe bus width PCIe Gen3 x4

Downstream port 2x M.2 2280 NVMe and 2x 2.5G network Port

Size (DxWxH) 152.6x20.6x69mm

Form factor Low-profile/High-profile

Transmitting Media RJ45 ; thought CAT-5e Copper

Network Speed 2.5G/1G/100/10M

Network Protocol IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3, IEEE802.3x, IEEE802.3z, IEEE 1588, 802.1as, IEEE802.3az

Network LED inductor Support

Jumbo Frame 9.5KB

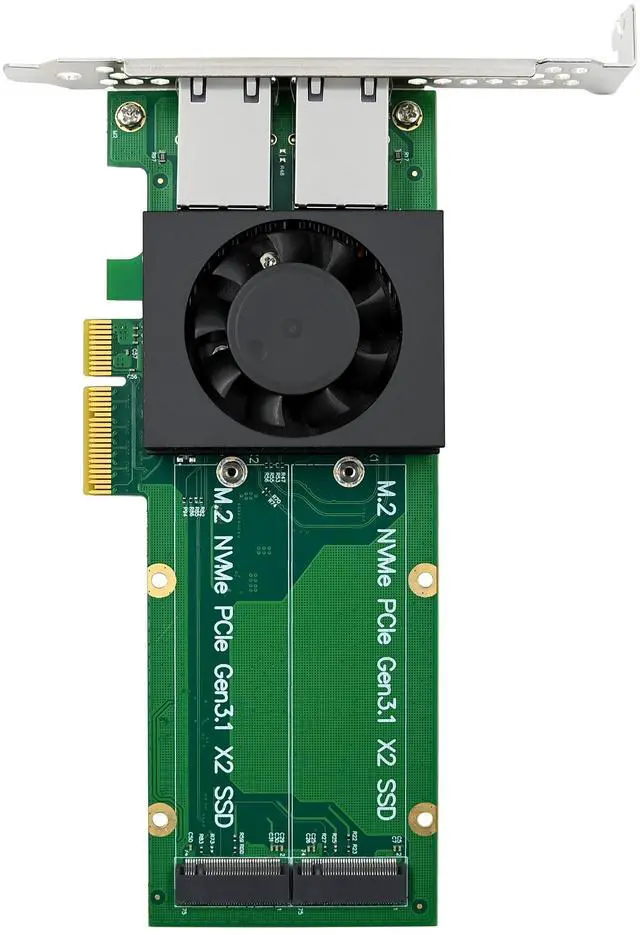

Heat Dissipation Method Active Fan

Operating Temperature 0~70

Storage Temperature -40~85

Chip Power Consumption 8.25W max

Application Platform NAS, PC, Server

Relative Humidity 0-90% non-condensing

Operating systems Windows: Win10 Ver18.9 and later, Win11

Linux: Linux Kernel 4.20/5.X or later, CentOS RHEL8.1, ubuntu14.x and later.

VMware ESXi : 4.x /5.x and later

Package content

1 x PCIe x4 ASM2812&I226 2N2T Adapter card

1 x Users Manual

1 x CD

1 x Low profile bracket

System Requirements

Microsoft Windows10 Version 1809 and later 32 or 64bit

Linux4.20/5.x or later, CentOS/RHEL8.1 or later, Ubuntu14.x/15.x/16.x or later

VMware ESX/ESXi 4.x/5.x/6.x or later

Available PCI Express x4/x8/x16 slot

Hardware installation

1. Turn off the computer and unplug the power cord

2. Remove the computer cover and adapter slot cover from the adapter slot.

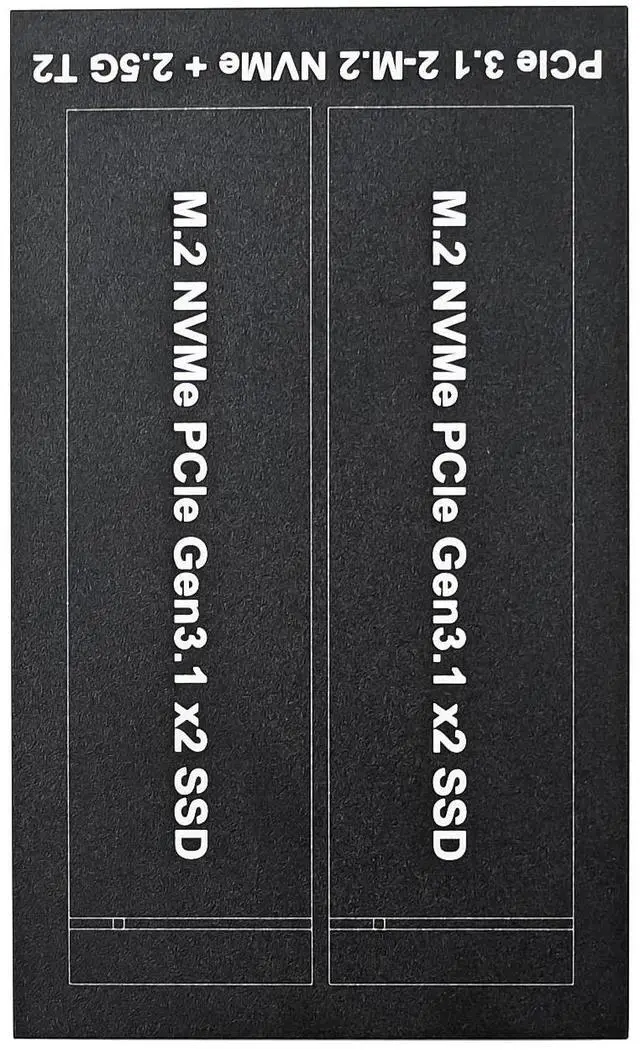

3. Use a screw driver to open the adapter's heat sink and install two adapted M.2 SSDs into the M.2 slots and lock them in place with screws

3. Insert the adapter edge connector to the slot and secure the bracket to the chassis

4. 4. Recover the computer cover, and then plug in the power cord

5. Power on the computer

Install Drivers

Windows Operating Systems

You must have administrative rights to the operating system to install the drivers.

1.insert the CD driver bound with Intel network driver into your CD-ROM drive(also you can download the latest drivers from support website):

2.if the Found New Hardware Wizard screen is displayed, click Cancel

3.start the autorun located in the software package, the autorun may automatically start after you have extracted files.

4.Click install Drivers and Software

5.Follow the instructions in the install wizard to finish it

Installing Linux Drivers from Source Code

1.Download and expand the base driver tar file.

2.Compile the driver module

3.Install the module using the modprobe command

4.Assign an IP address using the ifconfig command

Support

More information and settings, please refer to the Intel Adapter User Guides or you can contact us.
