Kramer TP-580TXR HDMI/RS-232/IR over HDBaseT Twisted Pair Extender Transmitter

The TP-580TXR is an extended range, HDBaseT twisted pair transmitter for HDMI, bidirectional RS-232 and IR signals. The TP-580TXR inputs HDMI, RS-232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP-580RXR receiver.

• Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
• HDTV Compatible.
• HDCP Compliance.
• HDBaseT™ Technology.
• HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
• 3D Pass-Through.
• EDID PassThru - Passes EDID signals between the source and display.
• 2K & 4K Support.
• Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS-232 interface, allowing status requests and remote control of the destination unit.
• System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) Ultra mode (1080p @60Hz @24bpp) when using BC-DGKat623 cables.
• Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC-DGKat524, BC-DGKat623 and BC-DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non-Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges.

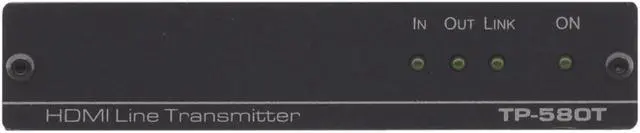

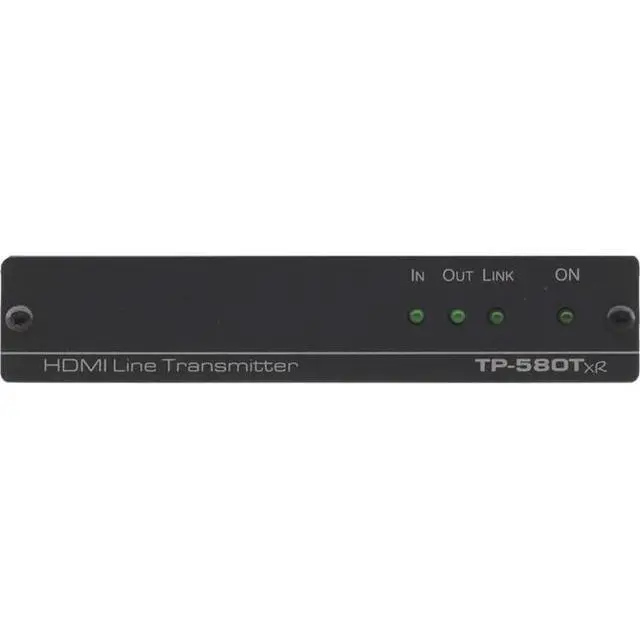

• Indicators - Status LEDs for input, output, link and power.
• Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T universal rack adapter.
