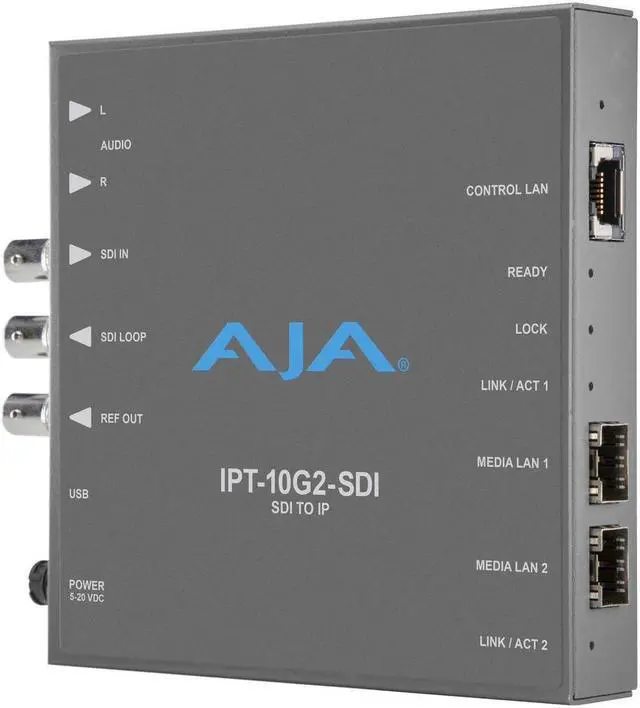

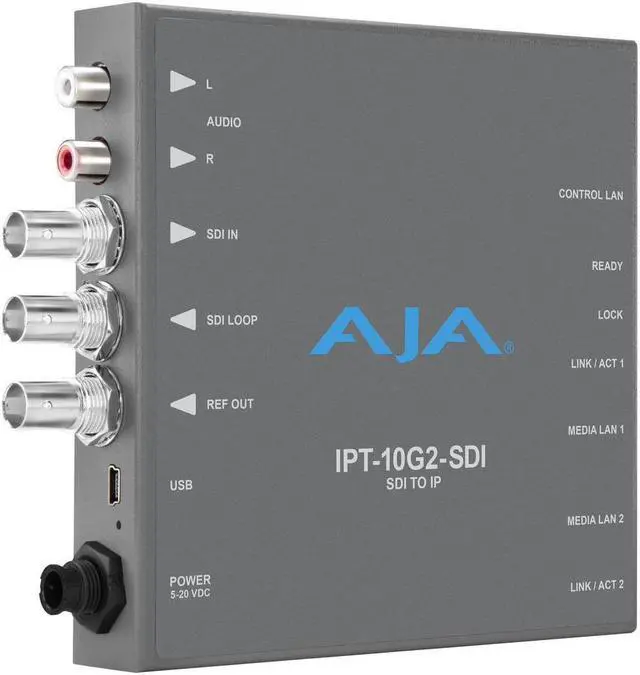

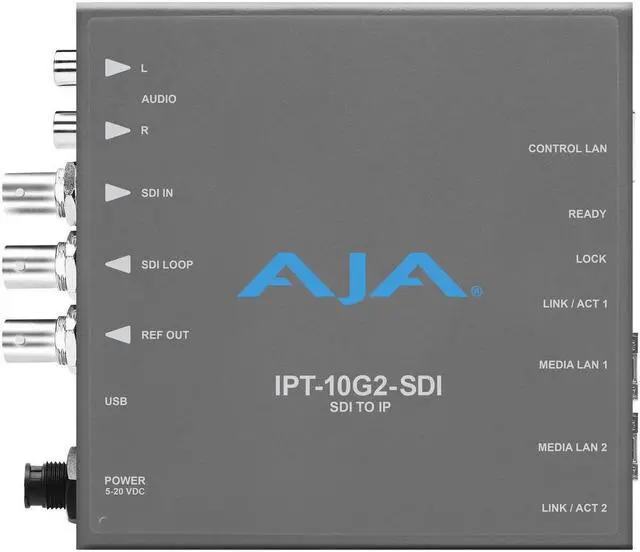

AJA IPT-10G2-SDI Bridging 3G-SDI to SMPTE ST 2110 Video and Audio IP Encoder with Hitless Switching

IPT-10G2-SDI is designed to integrate traditional 3G-SDI video sources into SMPTE ST 2110 IP Video infrastructure. The IPT-10G2-SDI receives baseband video plus up to 16 embedded audio channels over 3G-SDI, then formats the data for output as SMPTE ST 2110 over 10 GigE. Associated audio from the video stream is extracted, synchronized, and embedded into the SMPTE ST 2110 stream. Alternatively stereo audio can be fed into the steam from the included RCA inputs. 2x 10 GigE SFP+ cages are provided, allowing "hitless switching" (ST 2022-7) redundancy protection for critical transmission environments.

IPT-10G2-SDI transmits a SMPTE ST 2110 essence from an incoming 3G-SDI input source. Providing two SFP+ cases for protection with "hitless switching" (ST 2022-7), it's rugged, fanless, Mini-Converter design is ideal for placement in a wide range of scenarios, from on-set to in the studio. User ControlIPT-10G2-SDI provides two key methods for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration and firmware updates. 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3 -2012)HTTP/ 1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)1x USB 2.0 Mini-B (IEC 62680-1) connectorAJA eMini-Setup of network parametersWeb and REST clients supportedNMOS transmit (Discovery, Registration and Control)According to standards IS-04 v 1.2 & IS-05 v 1.0.

AJA REST API (Control Only) Discovery is supported via SSDP, allowing AJA REST API to then be used for ControlDiscovery is also supported via MDNS, allowing AJA REST API to then be used for ControlEmber+ (no Discovery, Control only) v 1.6
