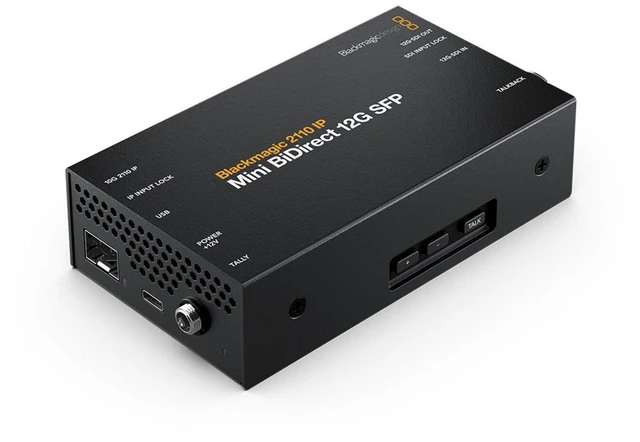

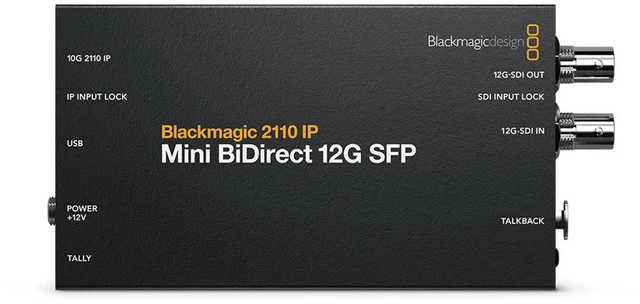

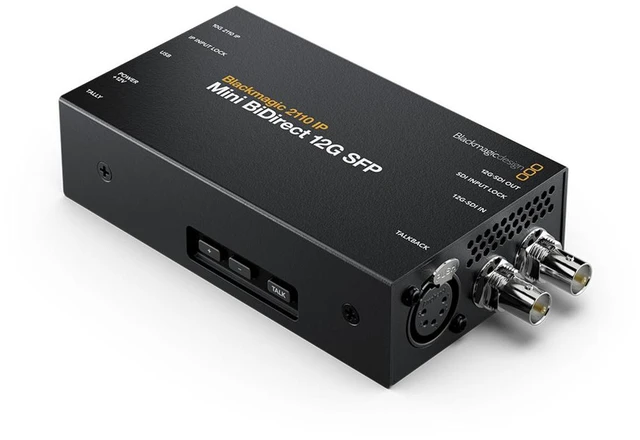

Blackmagic Design 2110 IP Mini BiDirect 12G SFP Converter

With the Blackmagic 2110 IP Mini BiDirect 12G SFP Converter, you can seamlessly integrate SDI equipment into 2110 IP broadcast systems. This bidirectional converter allows 12G-SDI cameras to connect to SMPTE-2110 systems over long distances using optical fiber, handling both the SDI camera feed and SDI program return in one compact device. Equipped with a 5-pin XLR talkback headset connection, this converter also features volume and press-to-talk buttons for easy communication. It supports all SD, HD, and Ultra HD standards up to 2160p60, making it a versatile addition to any professional video setup.

The SFP socket accepts 10G Ethernet, 3G-SDI, 6G-SDI, or 12G-SDI optical modules, providing flexibility in connectivity options. The Blackmagic 2110 IP Converter is designed to conform to the SMPTE ST-2110 standard for IP video, including PTP clocks and NMOS support. This means you can make connections using a video router panel, simplifying your workflow. The converter also supports multicast, an efficient way of distributing video, audio, and data from a single source to multiple destinations. Installation is incredibly easy with the Blackmagic 2110 IP Converter. It can connect point-to-point, eliminating the need for a complex Ethernet switch.

This feature allows you to enjoy the benefits of SMPTE-2110 IP video with simple Ethernet cables, remote power, and bidirectional video. The converter supports the NMOS interface specifications, allowing all 2110 IP video devices to operate together as a large virtual router. It also supports the Blackmagic IP10 codec, ensuring high-quality, low-latency video transmission. The Blackmagic 2110 IP Converter is compatible with all SD, HD, and Ultra HD standards up to 2160p60, making it a versatile solution for connecting your existing SDI broadcast equipment to new IP-based infrastructure.

It also supports remote administration for settings and updates, making it easy to manage even in complex broadcast systems. With both AC and PoE+ power connections, the Blackmagic 2110 IP Converter offers flexibility and redundancy in power supply. Whether you're building professional SMPTE-2110 broadcast systems or upgrading your current setup, the Blackmagic 2110 IP Mini BiDirect 12G SFP Converter is a reliable and efficient solution.
