Blackmagic Design 2110 IP UHD 4K UpDownCross 12G Converter #CONVNVIPJ/STD/12G

Blackmagic 2110 IP UpDownCross 12G

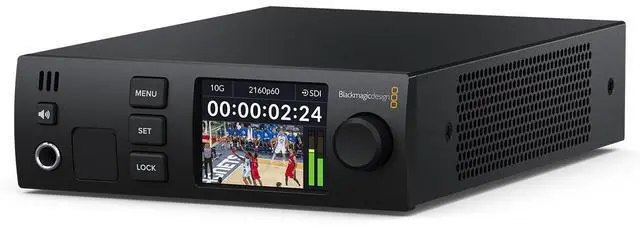

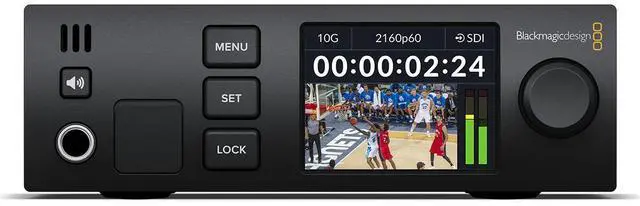

The Blackmagic 2110 IP UpDownCross 12G is a premium standards converter for live production and broadcast. It allows you to convert between any equipment with 2110 IP video, 12G-SDI, and HDMI video connections! You get the highest quality video conversion between all SD, HD, and Ultra HD video standards. It has an elegant design with an LCD display, speaker, and headphone jack. The LCD also has menus for setting the video standard. The USB port on the front panel even works as an HD webcam!

Build 2110 IP Video Systems for Broadcast, Live Production and AV!
Blackmagic Design has a wide range of SMPTE-2110 IP video products, including standards converters, video monitors, audio monitors and even cameras! Plus they support Ultra HD using low cost 10G Ethernet! Most converter models are bidirectional, so they're fantastic to use on cameras when you need an extra program return! The rack mount models have an elegant design with a color LCD for monitoring, menus and diagnostics. All models conform to the SMPTE-2110 standard for IP video, including PTP clocks and even NMOS support so you can make connections using a video router panel. The Blackmagic 2110 IP Converter 3x3G model even includes a reference video output, timed to the 2110 PTP clock!

Build Professional SMPTE-2110 Broadcast Systems
The Blackmagic 2110 IP Converters have been designed to integrate SDI equipment into 2110 IP broadcast systems. The rack mount models can be installed in equipment racks right next to the equipment you're converting. However with Blackmagic Studio Cameras, Blackmagic Audio Monitor 12G G3 and the SmartView 4K G3, you can build most of your SMPTE-2110 system without converters! Plus most Blackmagic SMPTE-2110 IP video products can be remote powered! Adding converters also means you get a low cost way to transform all your video equipment to SMPTE-2110. Simply add a Blackmagic 2110 IP Converter to live production switchers, disk recorders, streaming processors, cameras, TVs and more.

Conforms to the SMPTE-2110 IP Video Standard
Blackmagic 2110 IP products conform to the SMPTE-2110 standard for IP video, which specifies the transport, synchronization and description of 10-bit video, audio and ancillary data over managed IP networks for broadcast. It can also re-sync SDI inputs to a common PTP clock or external gear can lock to the reference output that's also generated from the PTP clock. Blackmagic 2110 IP products support SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data. Plus Blackmagic 2110 IP products support multicast, which is an efficient way of distributing video, audio and data from a single source to multiple destinations.

Multi-Rate 12G-SDI for HD and Ultra HD
Blackmagic 2110 IP video products, designed for advanced television production, also feature the latest 12G-SDI video connections. This means you can connect to traditional broadcast gear using SDI and new 2110 IP based broadcast systems with the same product! 12G-SDI is multi-rate, which means that a single video BNC cable can connect to any HD or Ultra HD equipment. You get support for 720p HD at both 720p50 and 59.94p. Plus 1080i HD interlaced standards in 1080i50 and 1080i59.94. 1080p support includes 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60p. The 12G-SDI also handles Ultra HD in all television standards including 2160p at 23.98, 24, 25, 29.97, 50, 59.94 and 60p.

Uses Simple 10G Ethernet for Low Cost
