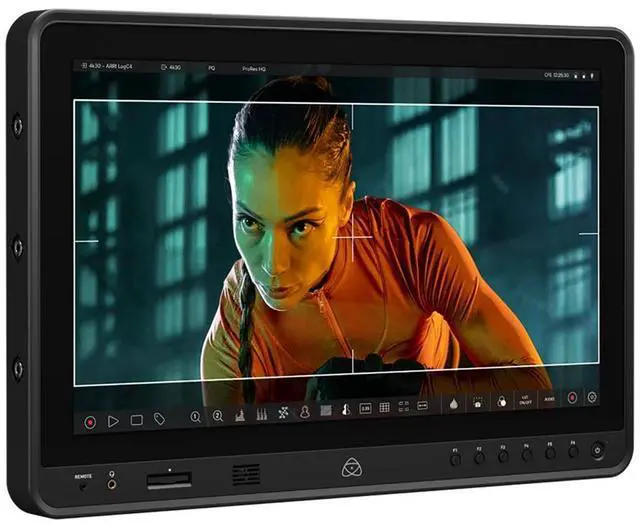

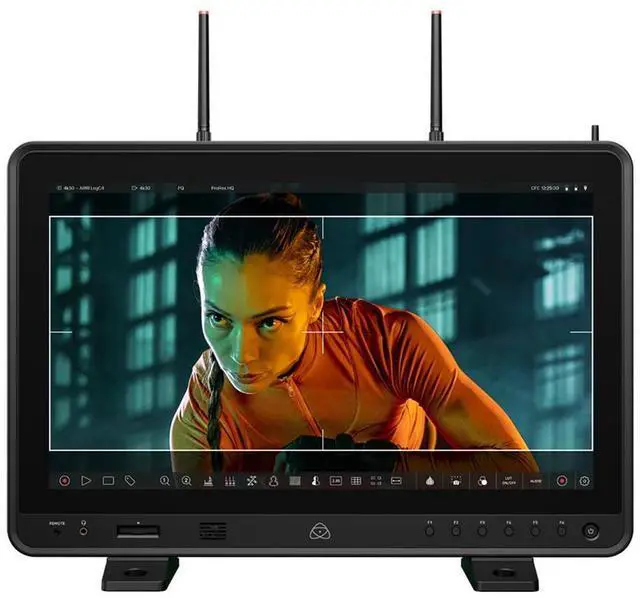

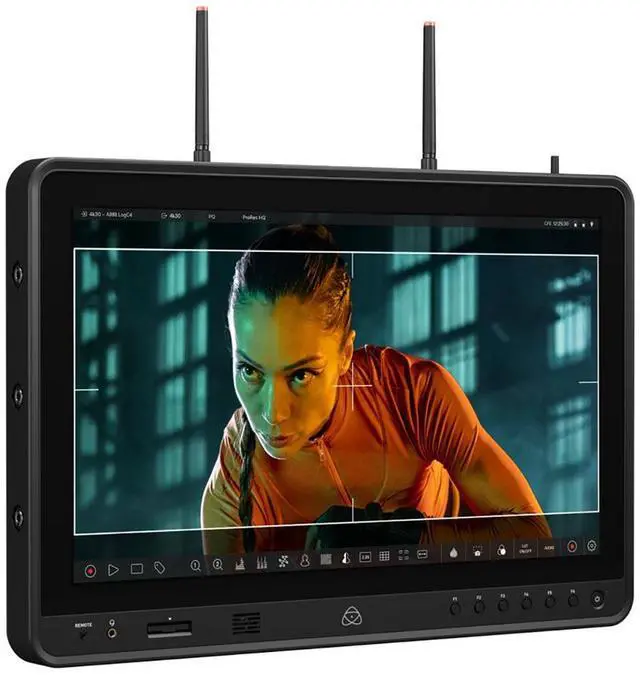

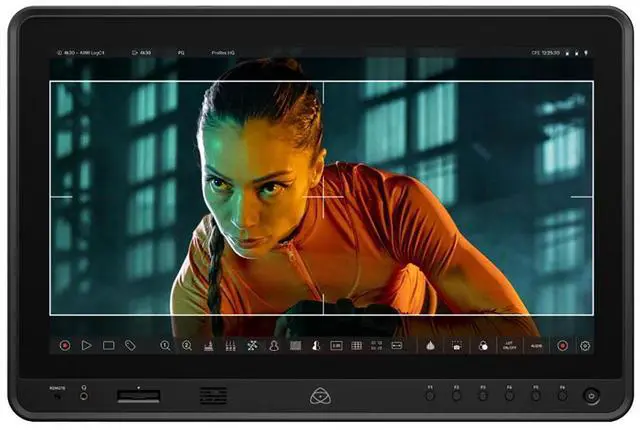

Atomos Sumo PRO-19 19" 4K Ultra HD HDR Monitor-Recorder-Switcher

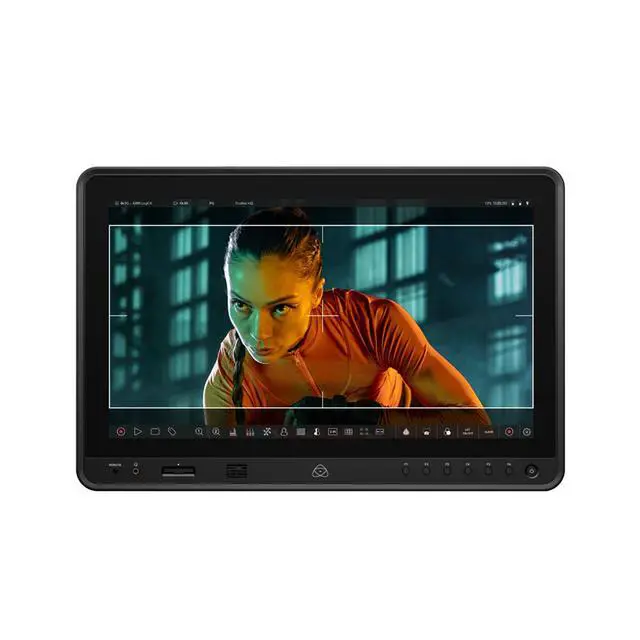

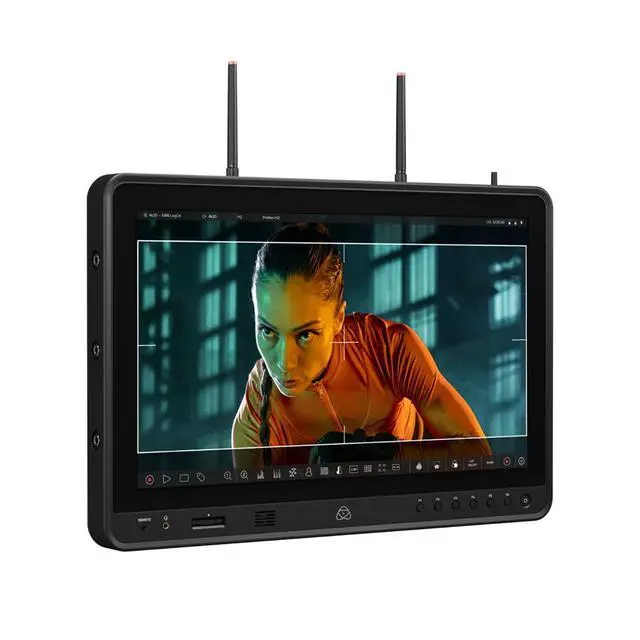

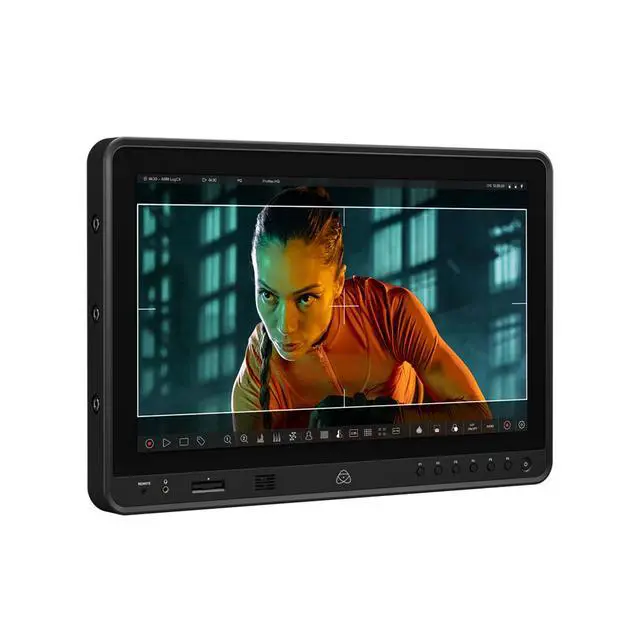

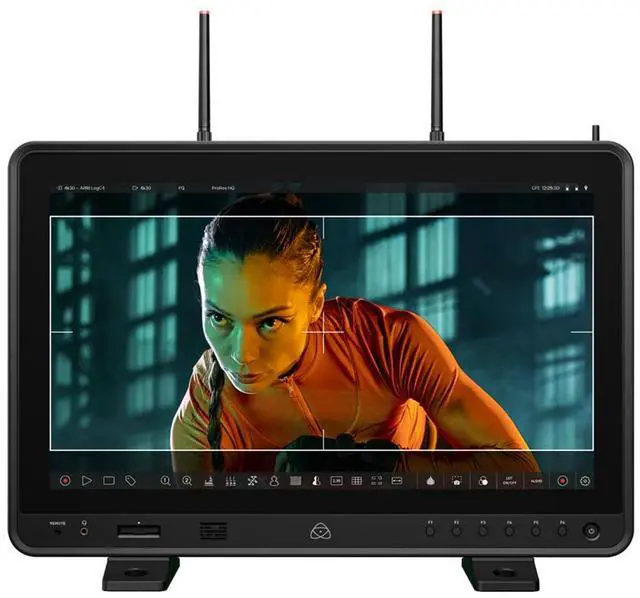

19-inch 4K HDR DCI-P3 monitor-recorder-switcher for on-set review and video village workflows. With 4 SDI inputs, ISO recording, live multi-camera switching, NDI HX3 over Wi-Fi or Ethernet, ProRes/DNx/ProRes RAW, XLR audio, and advanced monitoring tools, it delivers a complete Monitor-Record-Switch workflow for modern studio and film production environments. Touchscreen ControlEasy to navigate and user-friendly interface. CFexpress Card SlotRecord 12-bit ProRes, ProRes RAW or DNx to CFexpress Type B card. 19", 1200 NIT 4K HDR Display3840 x 2160 4K UHD 100% Rec. 709, 99% DCI-P3, 99% NTSC, 87% BT.

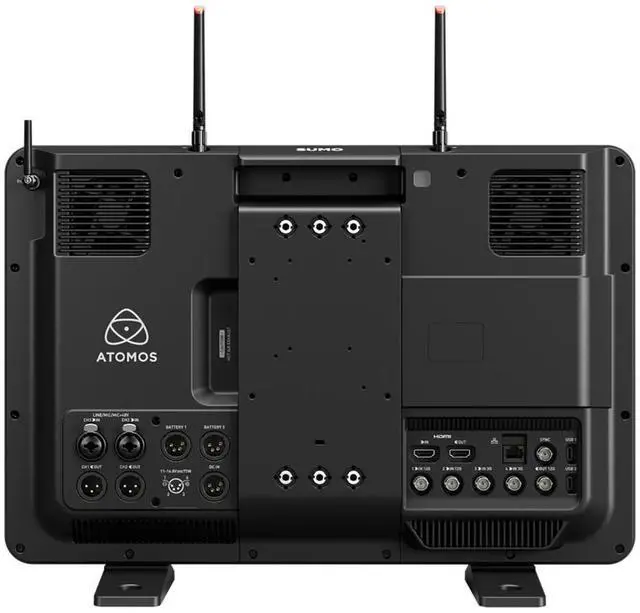

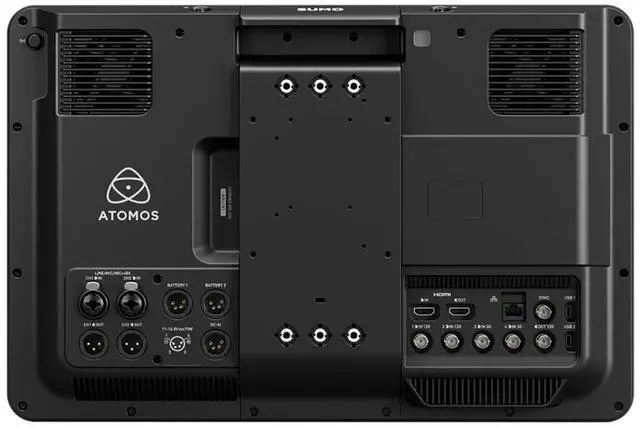

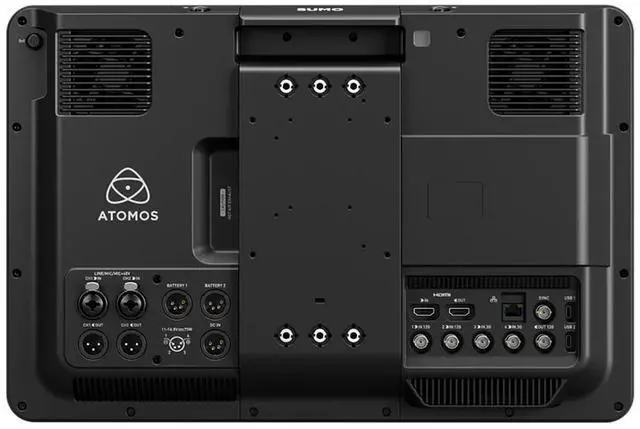

2020. Quad Split or Full ScreenQuad-split or switch between 4 inputs. User-Defined Function ButtonsInstant access to up to six frequently used features at the touch of a button. AirGluIntegrated timecode sync over RF or Bluetooth ensures that all compatible devices-cameras, audio recorders, and monitors-are synchronized. DC / Battery InputsXLR-4 connections for DC power supply or a single V-Lock battery. Sumo PRO-19 features Atomos Continuous Power technology which uses looping for uninterrupted switching between two power sources (DC and/or Battery) during use. Battery Plate MountsTo attach V-Lock or Gold Mount batteries to the back of the monitor for portable, field-based power.

Audio InXLR inputs for line-level or microphone sources, with selectable 48 V phantom power for compatible microphones. Audio OutXLR outputs for monitoring. The audio channel routed to each output can be selected via the Headphone settings in the Audio menu. Integrated Wi-FiAutomatic camera-to-cloud uploading to ATOMOSphere, Frame. io, Dropbox and more. HDMI In/OutSupports recording up to 4Kp60. HDMI output provides live loop out or play-out when in playback mode up to 4Kp60 video. Gigabit Ethernet PortRJ45 connector. Sync ConnectionInput-only reference signal for locking internal timing to an external source during play back.

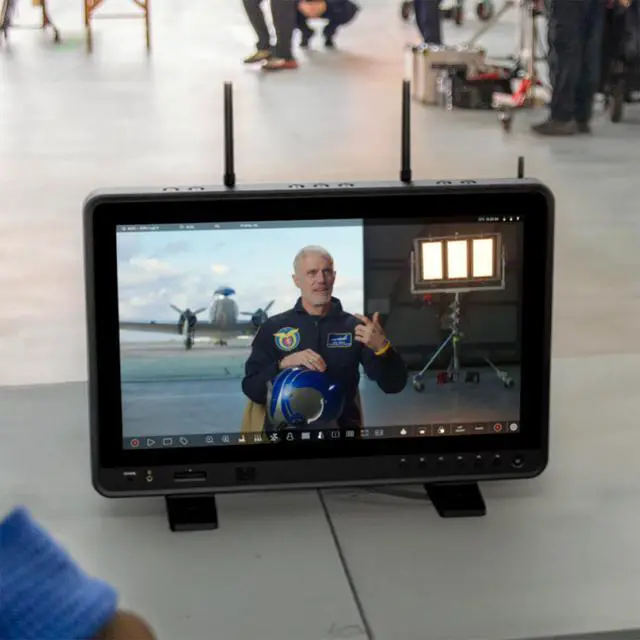

USB-C PortsUsed to attach external USB-C media. Please see Atomos website for supported devices. 4K/HD-SDI OutOutput to an external monitor or other device. Provides loop-through of the incoming SDI or HDMI signal in record. 4K/HD-SDI In12G-SDI input connections, backward compatible to 6G, 3G and 1.5G signals. Supports 3G-SDI level A and B. and standby mode, and playback when in playback mode. HD-SDI In3G-SDI input connections. The SDI inputs support 3G in both level A and B standards. On-set multi-camera monitoringConfidently manage complex productions with a large, color-accurate 4K HDR display that's ideal for directors, technical directors, and camera operators.

Technical & confidence monitoringBright, 19-inch 4K HDR display with comprehensive technical monitoring tools including EL Zone false color, focus peaking, waveform & more. Live switching & routingLive switcher capable of playing and recording up to four ISO camera feeds, for broadcasts and live events.
