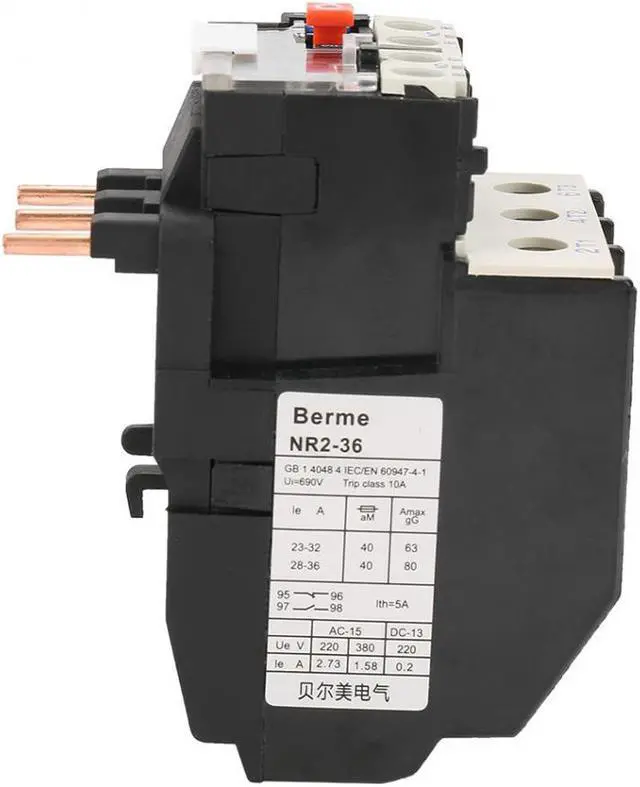

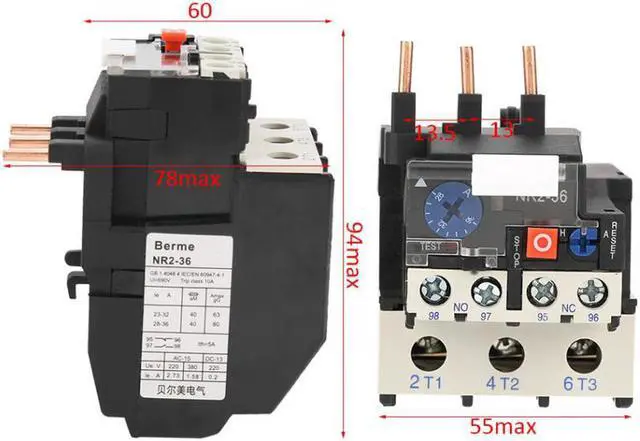

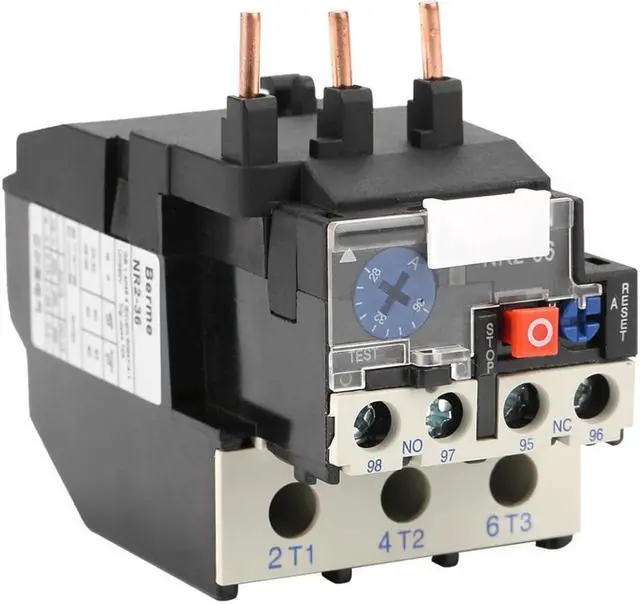

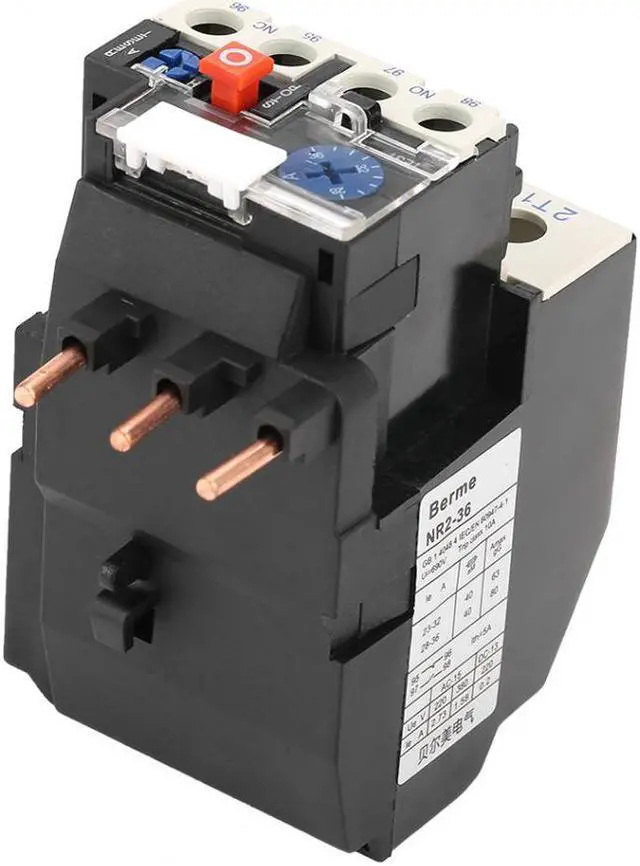

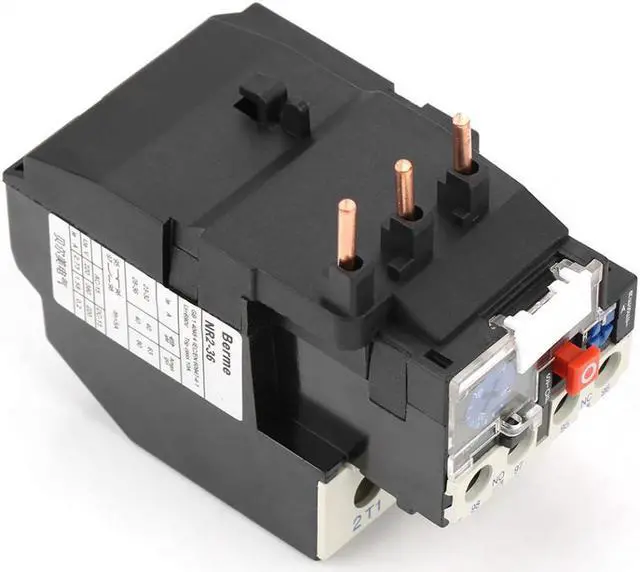

Overload Protection Relay CPN NR2-36 Electric Thermal Overload Relay 28A-36A Thermal Overload Relay With Phase Break Protection
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification: Power
frequency: 50-60hzRated
current: 28-36ARated
insulation voltage: 690vphase
break protection: yesManual
and automatic reset: yesTemperature
compensation: availableTripping
instructions: yesTest
button: yesStop
button:
yesInstallation: plug-inAltitude
of installation: 2000mAuxiliary
contacts: 1NO+1NCAC 15 220V rated current A 2.73AC 15 380V rated current A 1.58DC -13 220V rated current
A 0.2T raverse sectional area: main loop 4-10 auxiliary loop 0.5 - 2.5T ripping level: 10AFuse
specification: 40aM
80gGWeight: Approx.
234g/ 8.3 oz Features: This thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 690V, rated current 28-36AUsed for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensationWith phase break protection, manual and automatic reset, temperature compensation, trip indication, test button, stop button
frequency: 50-60hzRated
current: 28-36ARated
insulation voltage: 690vphase
break protection: yesManual
and automatic reset: yesTemperature
compensation: availableTripping
instructions: yesTest
button: yesStop
button:
yesInstallation: plug-inAltitude
of installation: 2000mAuxiliary
contacts: 1NO+1NCAC 15 220V rated current A 2.73AC 15 380V rated current A 1.58DC -13 220V rated current
A 0.2T raverse sectional area: main loop 4-10 auxiliary loop 0.5 - 2.5T ripping level: 10AFuse
specification: 40aM
80gGWeight: Approx.
234g/ 8.3 oz Features: This thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 690V, rated current 28-36AUsed for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensationWith phase break protection, manual and automatic reset, temperature compensation, trip indication, test button, stop button
