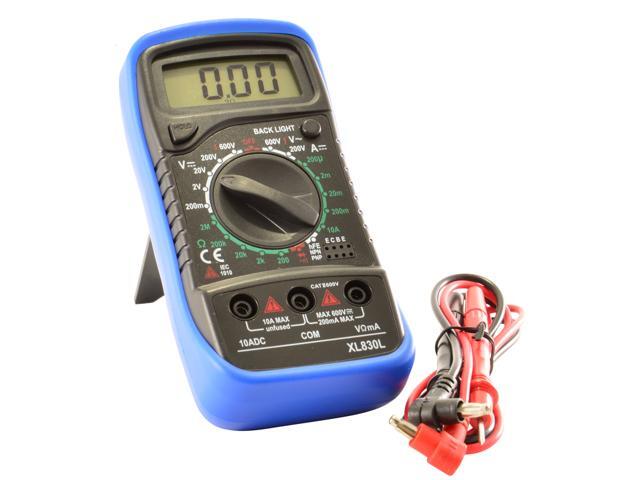

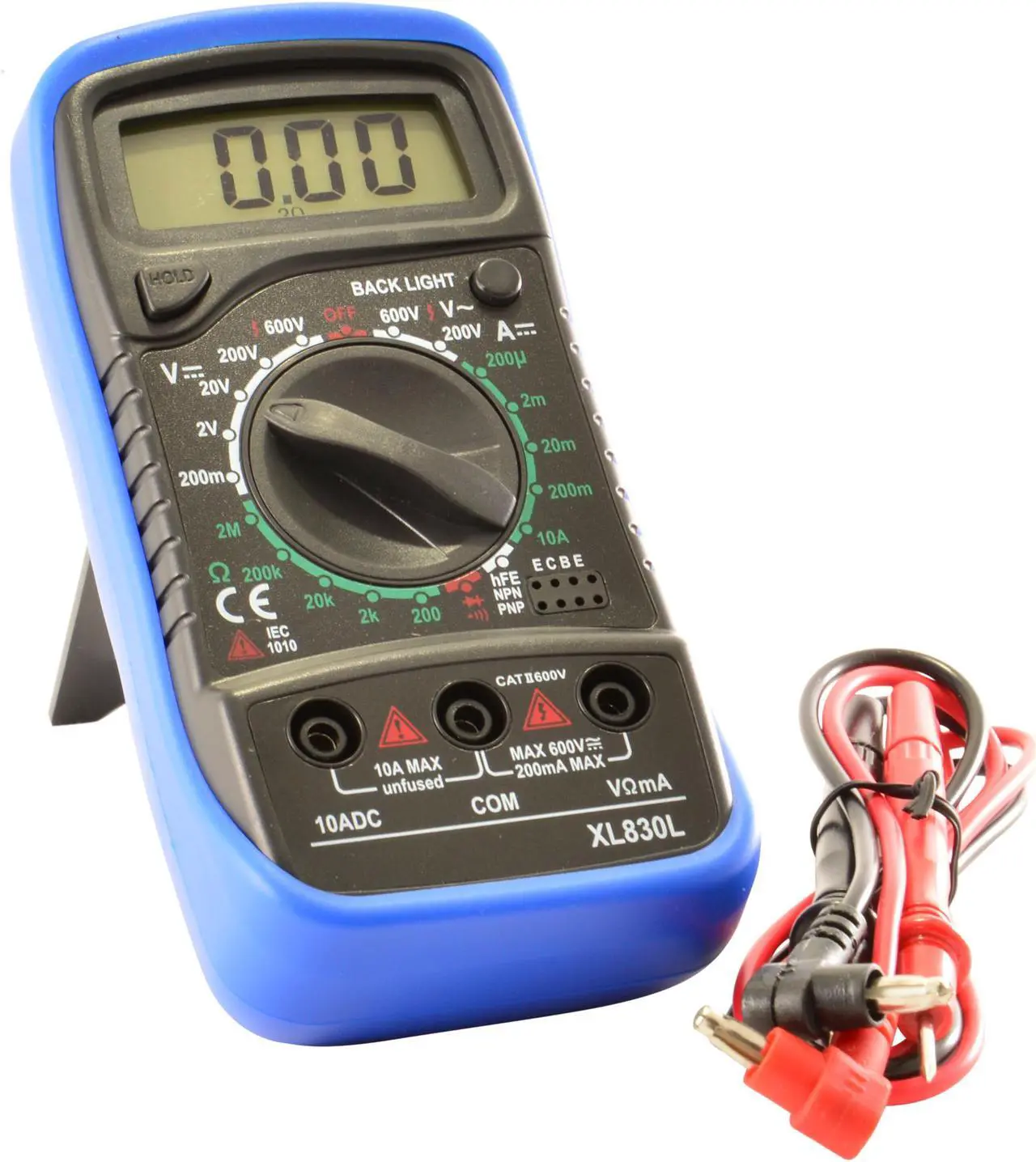

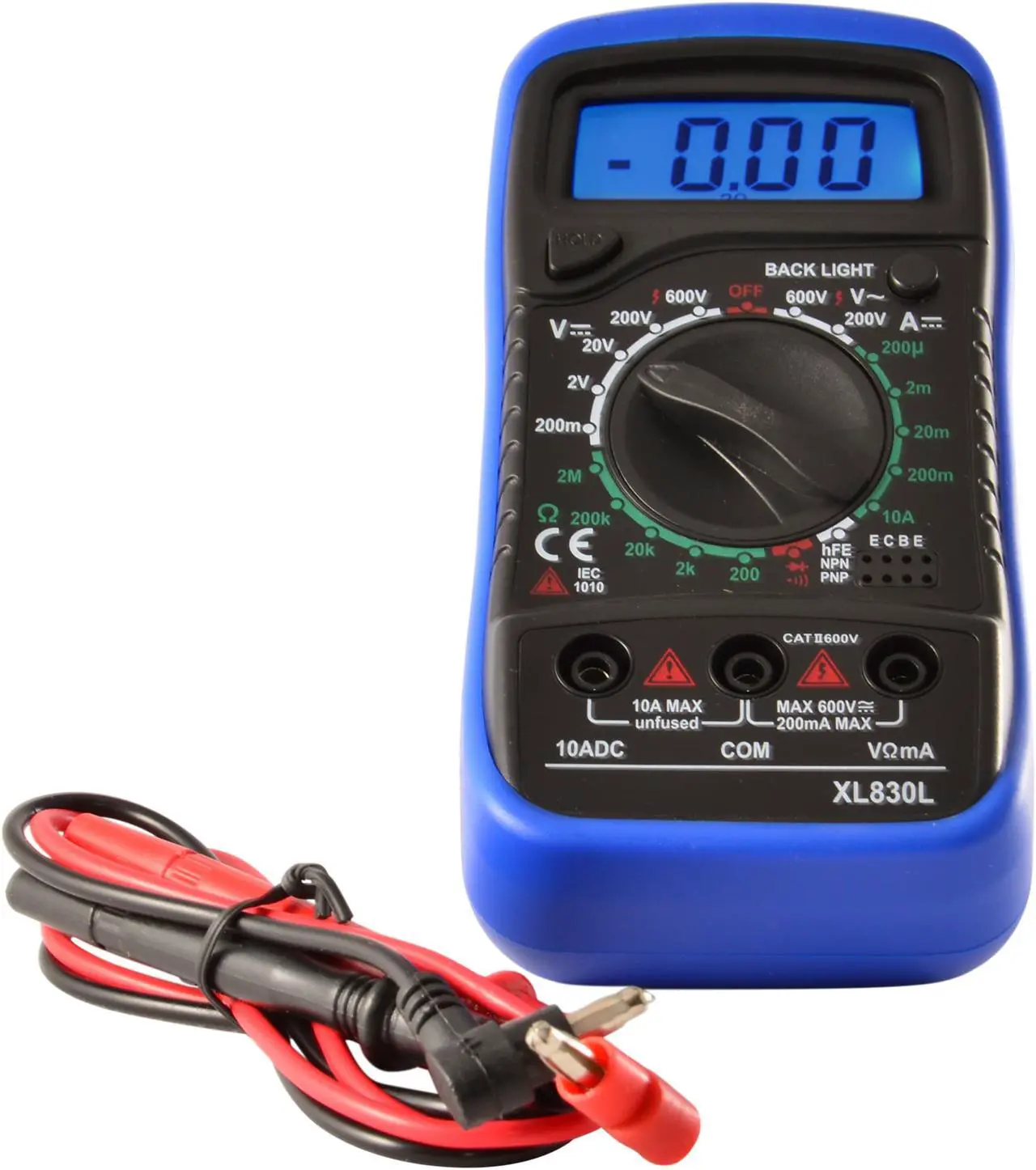

JacobsParts Digital Multimeter AC DC Voltmeter Ammeter Ohmmeter Volt Tester Meter XL830L
- This digital multi-meter has all the functions you will need for electronics testing and electrical work. A wide range of functions cover just about every use case.
- Tests: AC Voltage, DC Voltage, Current, Resistance, Continuity, Diode, Transistor
- Continuity test has an auditory buzzer, Data hold button locks displayed value, Back-light button illuminates the display
- Probes and 9V battery included
- 1-year warranty
+
+
Overview
Specs
Reviews
DC Voltage Modes: 200mV (100µV resolution) 2V (1mV resolution) 20V (10mV resolution) 200V (100mV resolution) 600V (1V resolution)
DC Current Modes: 200µA ( 0.1 µA resolution) 2mA (1µA resolution) 20mA (10µA resolution) 200mA (100µA resolution) 10A (10mA resolution)
AC Voltage Modes: 200V (100mV resolution) 600V (1V resolution)
Continuity Test: If continuity exists a built in buzzer will sound
Diode Test: Show the approximate forward voltage drop of the diode
Resistance Test: 200O ( 0.1O resolution) 2kO (1O resolution) 20kO (10O resolution) 200kO (100O resolution) 2mO (1kO resolution)
Transistor hFE Test: NPN & PNP 0-1000 3V 10µA
Additional Features: Data hold button locks displayed value Back-light button illuminates the display Kickstand
Package Includes: Multimeter Probe Cables Instruction Manual Ships in retail box Takes 9V battery (included)
DC Current Modes: 200µA ( 0.1 µA resolution) 2mA (1µA resolution) 20mA (10µA resolution) 200mA (100µA resolution) 10A (10mA resolution)
AC Voltage Modes: 200V (100mV resolution) 600V (1V resolution)
Continuity Test: If continuity exists a built in buzzer will sound
Diode Test: Show the approximate forward voltage drop of the diode
Resistance Test: 200O ( 0.1O resolution) 2kO (1O resolution) 20kO (10O resolution) 200kO (100O resolution) 2mO (1kO resolution)
Transistor hFE Test: NPN & PNP 0-1000 3V 10µA
Additional Features: Data hold button locks displayed value Back-light button illuminates the display Kickstand
Package Includes: Multimeter Probe Cables Instruction Manual Ships in retail box Takes 9V battery (included)
