Stainless steel door hinges
Our door hinges all partsare are made of stainless steel material, fit for any extremely weather condition.Perfect for use on a home near the ocean.
Installation steps: The clearance between thedoor and floor is 4mm when installed.

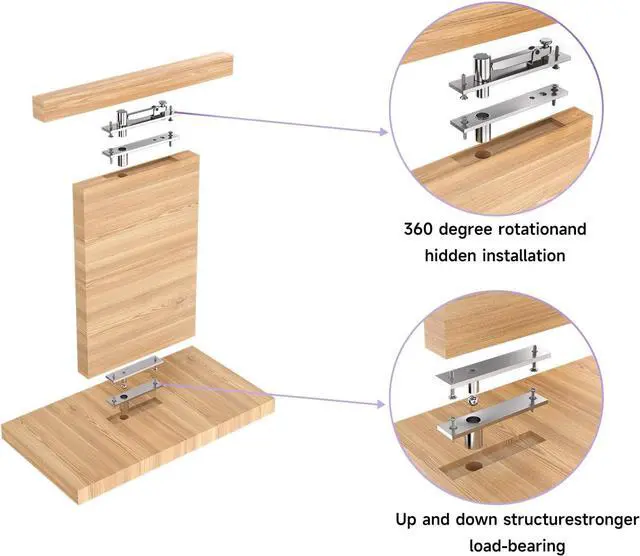

1. Dig grooves in the corresponding doors and door frames
2. Install top pivot and bottom pivot. Make surethe center of the rotary axis is located in the same straight line, then fix screws initially.
3. Adjust the screw of part 1 to the lowest place and thestainless steel cylinder to the highest place by ascrewdriver, so that it is completely indented into the interior of the panel.
4. Put the steel ball into the round tube of part 4.
5. Put the door to the door frame so that the cylinder of part 3 is put into the round tubeof part 4 and make the cylinder of part 1 correspond to the round tube of part 2.
6. Adjust the restractable pin of part 1 upward, so that the cylinder rises intothe round tube of part 2.
7. Turn the door shaft back and forth, such as the rotation of no sound.
smooth, the screws will be completely tightened, the installation is complete.
8. lf it is not as smooth as you want, then fine-tune the positionof the parts 3 or parts 4 to make it more smooth.
| Products |
|
|
|
|
|
|
| Materia |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
| Finish Type |
Stainless Steel Brushed |
Stainless Steel Brushed |
Stainless Steel Brushed |
Stainless Steel Brushed |
Stainless Steel Brushed |
Stainless Steel Brushed |
| Waterproof |
|
|
|
|
|
|
| Rust -proof |
|
|
|
|
|
|
| Products |
|
|
|
|
|
|
| Materia |
high-quality steel |
high-quality steel |
high-quality steel |
high-quality steel |
high-quality steel |
Stainless Steel |
| Finish Type |
Brushed |
Brushed |
Brushed |
Brushed |
Brushed |
Brushed |
| Waterproof |
|
|
|
|
|
|
| Rust -proof |
|
|
|
|
|
|
MATERIALThese door hinges are made of stainless steel material, fit for any extremely weather condition. Perfect for use on a home near the ocean. Corrosion resistance, oxidation resistance, moisture-proof, waterproof and durable. You can trust our hardware to keep your secret doors secure for years to come.
HIGH LOAD BEARINGThis pivot hinge is mounted on the top and bottom of the door. This gives it more strength and stability to support up to 150kg/330pounds of weight. You can use this pivot hinge for heavier and wider doors without worrying about sagging or warping. The screw holes support a wide range of screw types, and screws do not protrude. If the door is heavy, the screws can be replaced with larger ones.

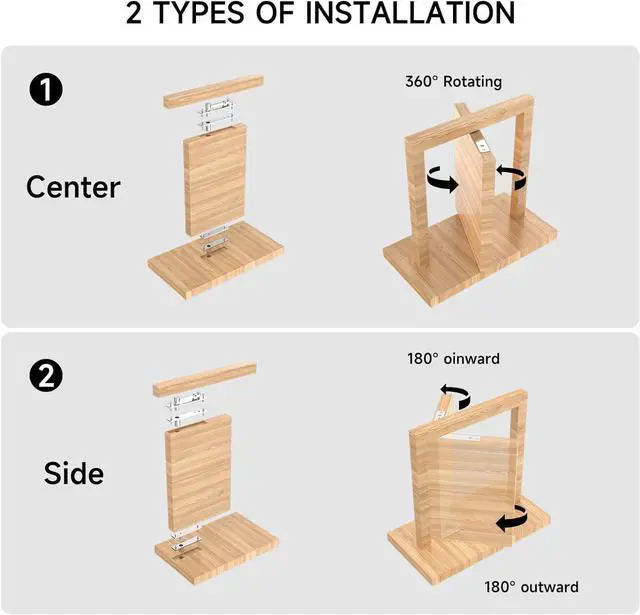

MULTIPLE OPENING METHODSDepending on the installation method DIY, multiple opening methods can be created. This is an interesting way to open a door. Compared to ordinary hinges, the rotating axis hinge bears more weight, has a larger opening angle, is more aesthetically pleasing.

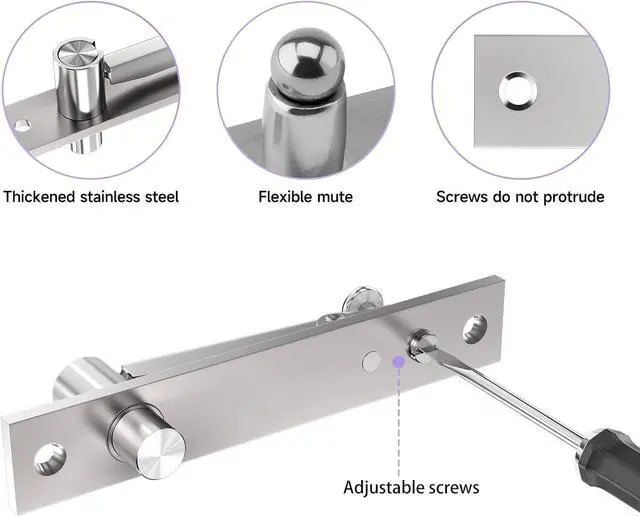

OPEN SMOOTHLY AND MUTETop pivot with retractable pin, for easy installation. Bottom pivot with sphere. Can be rotated 360 degrees for silent operation. The Ball-Bearing mechanism is featuring to make sure more stable and smooth rotating/opening/closing of heavy doors.
MULTIPLE USAGEHeavy duty pivot hinges perfect for secret rooms, bookcase doors, and storage solutions You can create a hidden door that rotates 360 degrees. Whether you want a Bookcase Door, a Bookshelf Door, a Cabinet Door, or a Panel Door, this pivot hinge can handle it. If you have any questions about our pivot hinges, please feel free to contact us.
