Alphacool Eisstation Reservoir and Laing DDC310 Pump

Highlights

1. The lid is made of highly stable nylon
2. Three versions for all common pumps
3. Various mounting options
4. Illuminated logo and LED mounting options

mounting options
It is possible to screw the ice station onto a 2.5 “bracket for SSD hard drives. It can also be installed in a 5.25 "bay. In both cases, the screws are attached using the special decoupling screws provided.

Connection

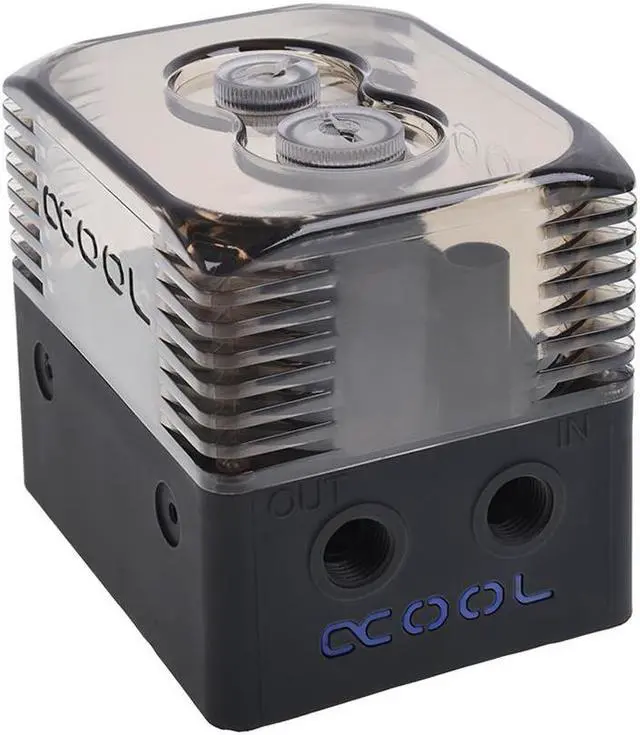

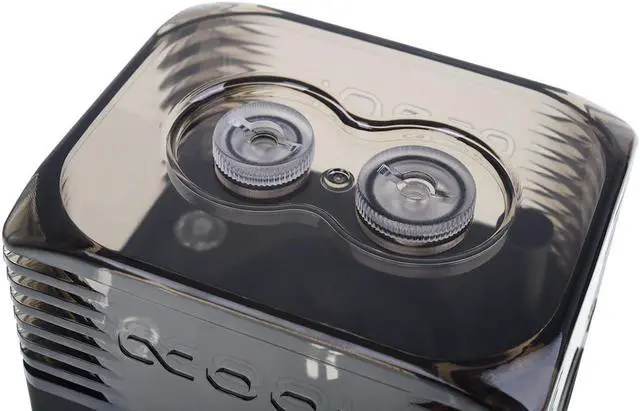

options An IN and OUT with G1 / 4 thread can be found on the head side with the illuminated logo. You can change the color of the logo with the optionally available modding kit. A G1 / 4 "and a G3 / 8" connection are available in the cover.

Technical data ice station:

Dimensions (LxWxH): 102 x 82 x 105mm
Filling quantity: 250ml
Material: nylon / PMMA
In / Out: G1 / 4 "
Connection options: 3x G1 / 4 "/ 1x G3 / 8"
Power supply LED logo: 3 pin
Power supply pump: 3 pin
Lighting modules: 4x for 5mm LED

Technical data DDC-1T pump:

Dimensions: (WxDxH) 62x62x38mm (without connections)
Motor design: electronically commutated ball motor
Nominal voltage: 12 V DC direct voltage
Perm. Voltage range 6 to 13.2 volts
Head at 12V: 3.7m
Max. Flow rate: 420L / h
Pumped media: water, water / glycol mixtures *
Max. System temperature: 60 ° C
Wetted parts: stainless steel 1.4571, PPS-GF40, EPDM O-rings,
Aluminum oxide, hard coal
Connections: 2x 10 / 8mm hose connection (no spout required)

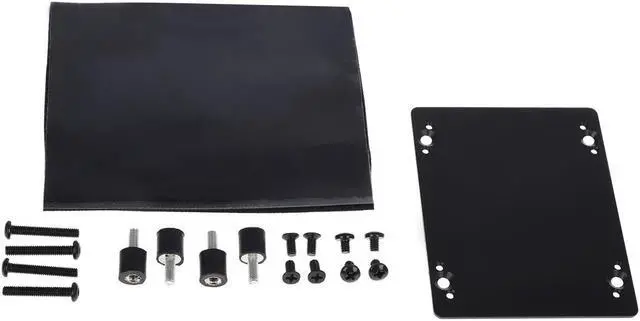

scope of delivery

1x Alphacool ice station DDC incl.Alphacool Laing DDC-1T
1x metal floor
Mounting screws
4x decoupling screws
Self-adhesive Velcro mat

Model: 13296
