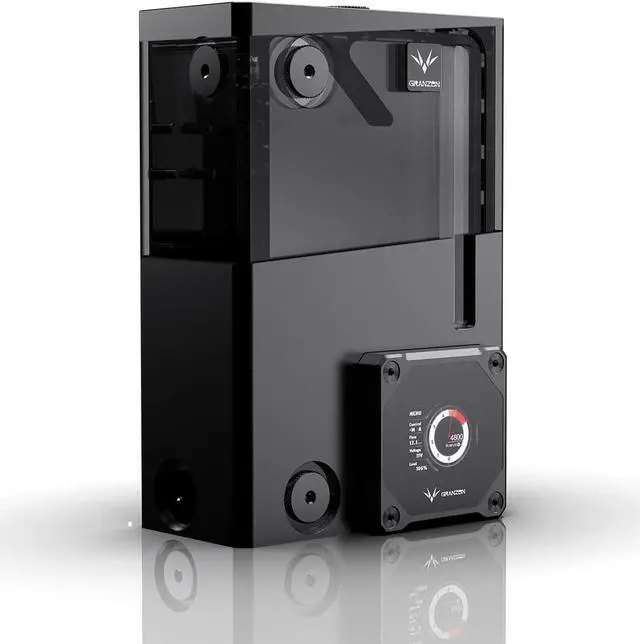

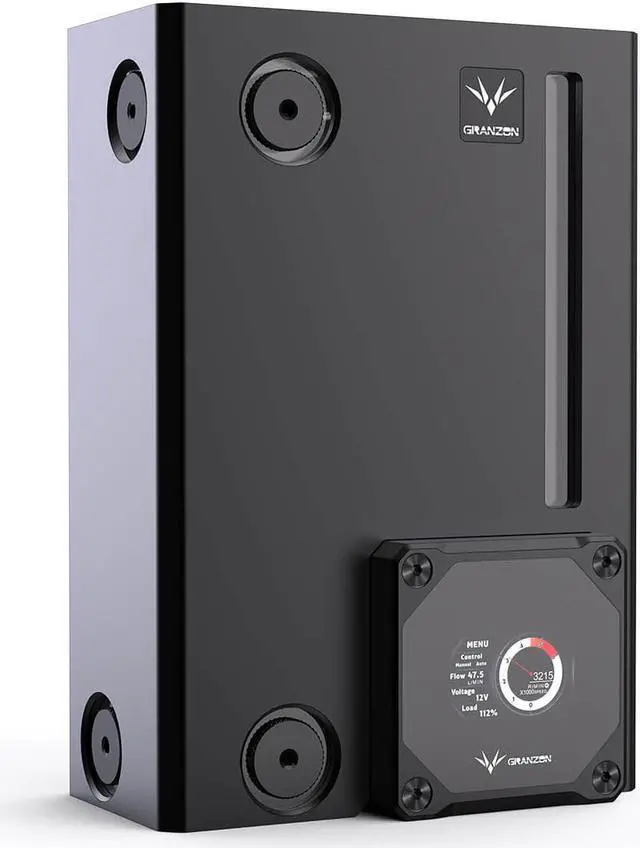

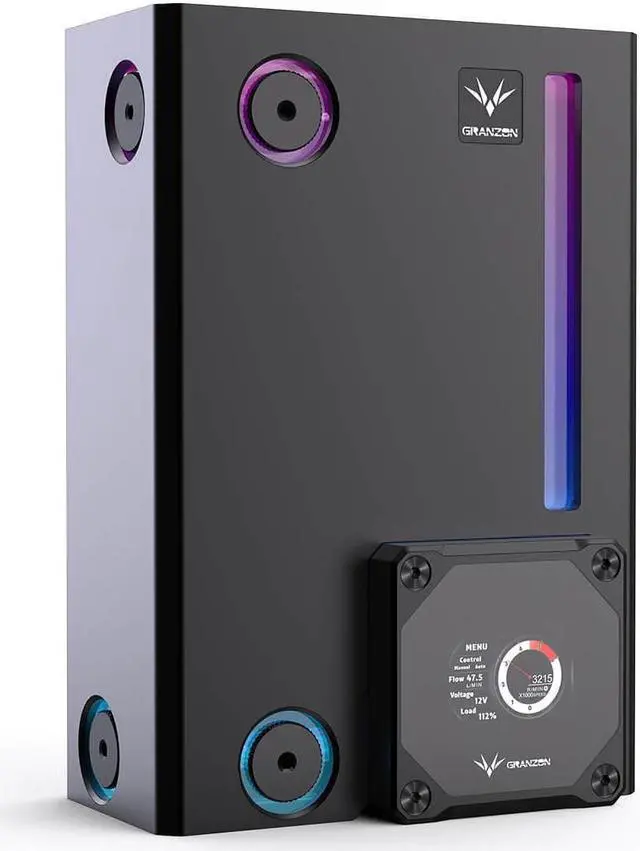

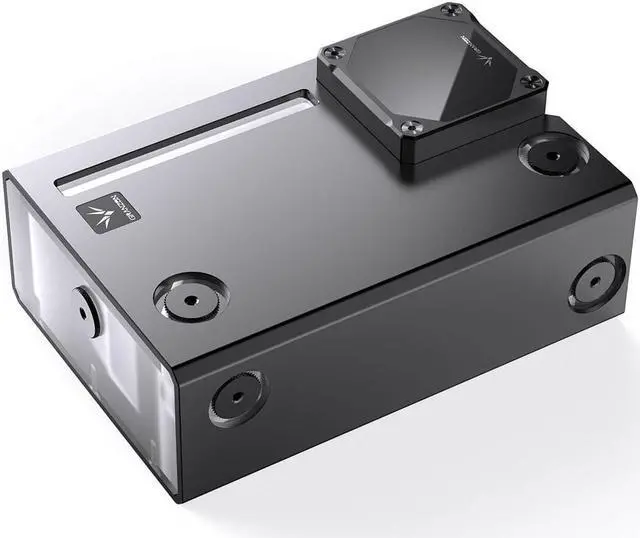

Granzon Digital Display Pump and Reservoir Combo w/ 5v Addressable RGB (RBW)(GE-A180)

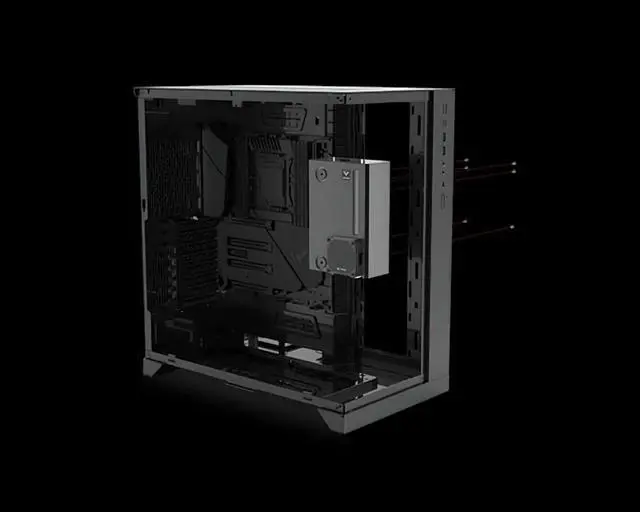

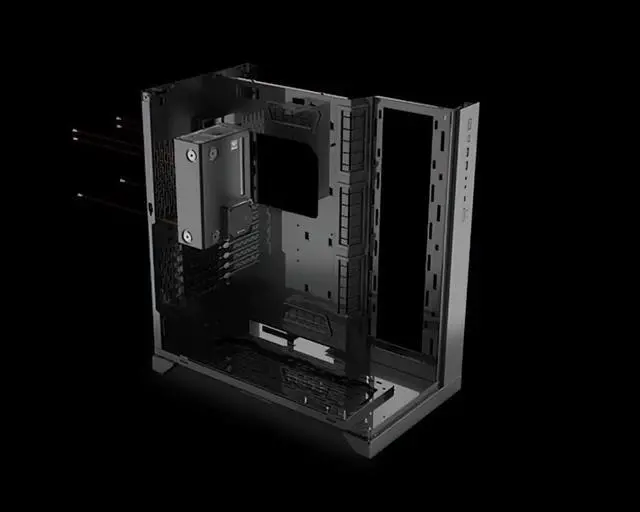

The Granzon PWM DDC style pump w/ digital display is installed on a reservoir with 5v addressable RGB (RBW) leds on the GE-A180. The reservoir has a built in splash proof structure that enables this central pump station to operate quietly. The reservoir station has mounting holes for 120mm fan mounts making it a flexible choice. The reservoir has 3 inlets and 2 outlets making loop option endless.

The DDC style pump has multiple digital display read outs. Highlighting the display readouts is a tachometer design, real time display of pump speed. Speed control can be set manually in increments of 100. Automatic mode is also available when using your motherboards PWM header. Flow rates, voltage and load are displayed as well for a complete overview of your pumps performance. Keep in mind the flow rate is based on the pumps speed. This means the lower your loop resistance the more accurate the reading will be. For most applications it will be a very accurate simulation.

Features

• A Combination of Art and Technology


• Low Vibration / Quiet Operation


• Ultra Bright 5v A-RGB Integrated LEDs


• Digital Data Read Out

Specifications

• Volume: 480mL


• Inlets: 3


• Outlets: 2

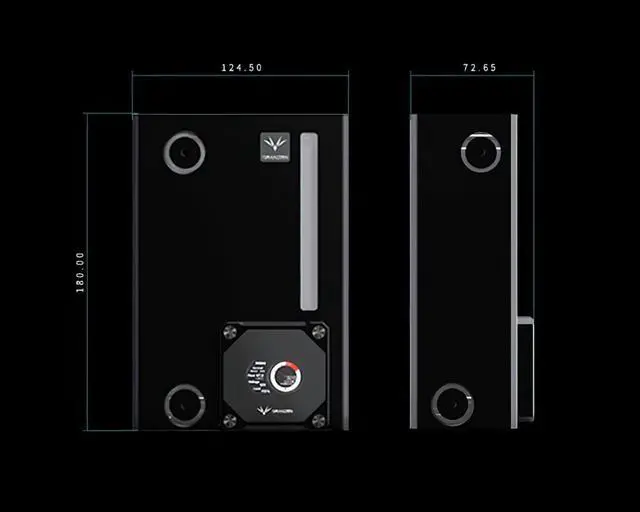

• Dimensions: 180mm x 124.5 x 76.65mm


• Pump Material: Aluminum (not in contact with coolant)


• Pump Core: CP-D3PB-X


• RPM: 1800-4800
• Temperature: 45°C @ 4000RPM



• Power: DC12v


• Flow Rate: 700L/h


• Head: 6M


• Connector: 4-Pin Molex and PWM+ data feedback

Compatibility

• Thread: G 1/4


• Mount: 120mm fan mount

Included Parts

• 1x Granzon Digital Display Pump and Reservoir Combo w/ 5v Addressable RGB (RBW)

Warnings

Not responsible for any hardware damage. Use at your own risk.
