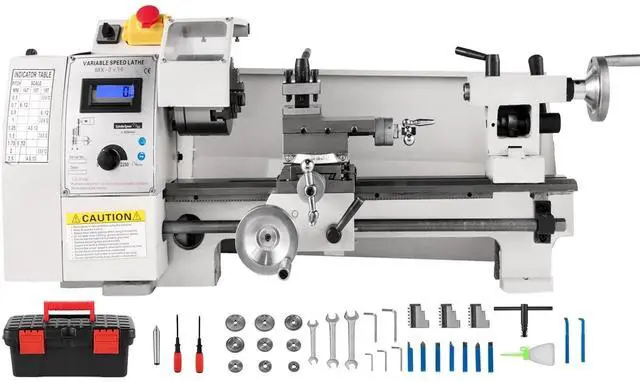

SIHAO 8"x14" Mini Metal Lathe, 2250 PRM Variable Speed Change, Precision Mini Lathe 650W Metal Working Lathe

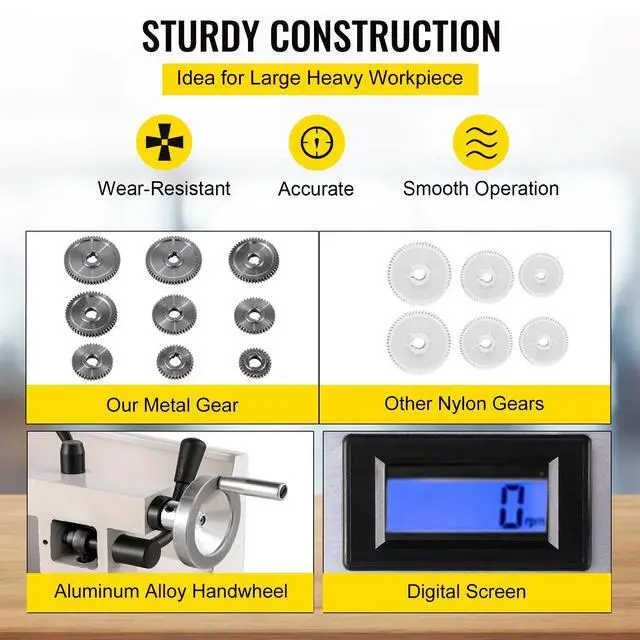

- [Sturdy & Durable Construction]: The mini lathe is made of high-quality cast iron which stands up to tear and wear. It is equipped with a 600W motor that delivers a great deal of energy. If you are into making models, it would be your professional assistant who has precise metric graduations and metal gears and therefore is punctilious.

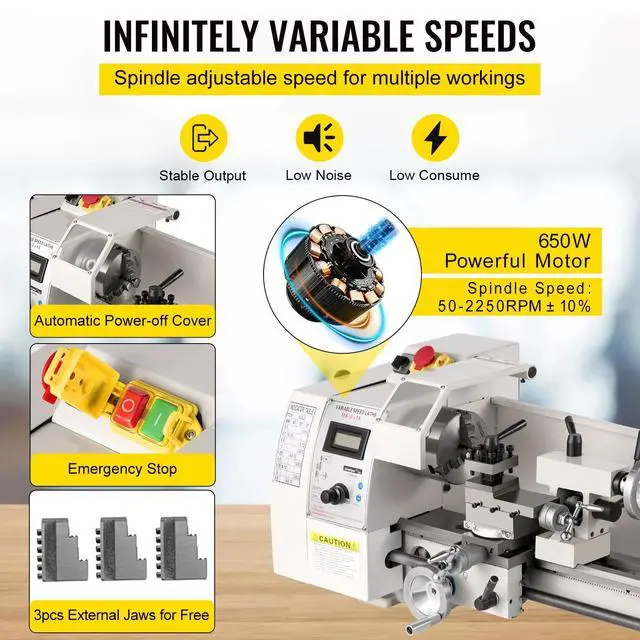

- [Infinitely Variable Speeds]: Revolving Speed Range: 50-2250±10% RPM. The mini lathe machine comes with variable speeds that give you the convenience to achieve the best work. This lathe allows you to work on both forward or reverse of any possible speed. The feeding rate can be adjusted manually or automatically. And an emergency button is accessible just in case.

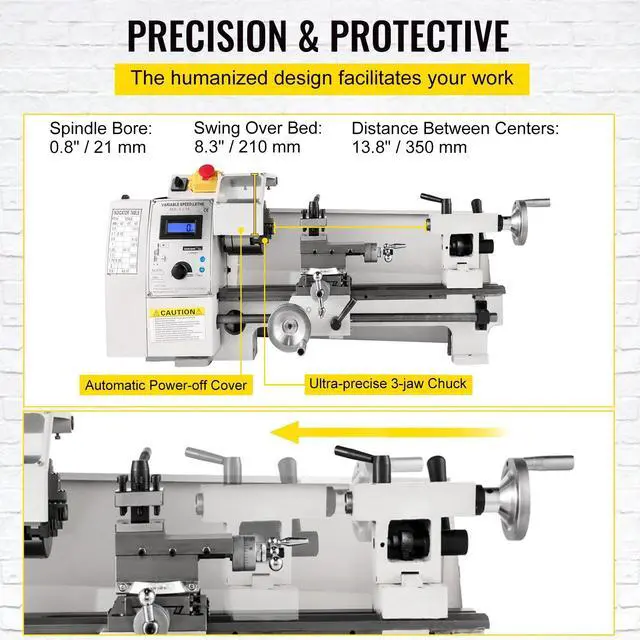

- [Works with Precision]: Spindle Bore: 0.8"/21 mm. The metal working lathe is pre-installed with a 3-jaw chuck, 3.9"/100 mm in diameter, which clamps raw materials tight, and a backsplash guard that ensures your security during operation.

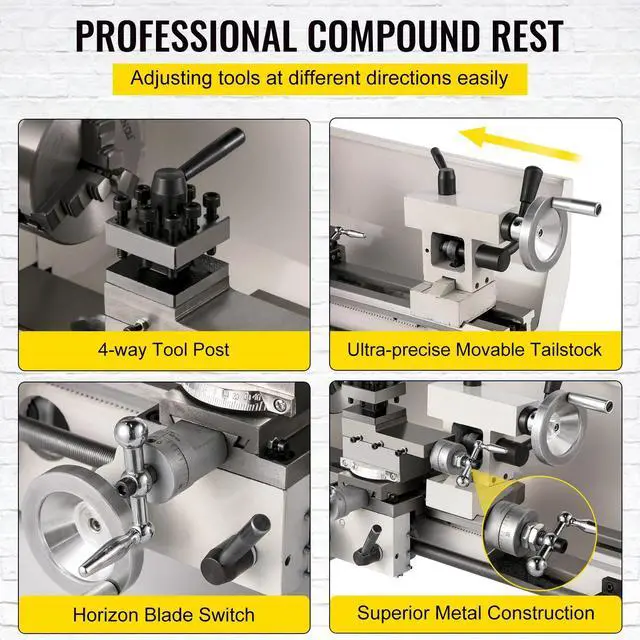

- [Faster & More Effective]: Swing Over Bed: 8.3"/210 mm. Swing Over Cross Slide: 13.8"/350 mm. The small metal lathe features a turret post for quick tool change and a cross slide for free blade moving, making internal cutting, face cutting and bevel cutting possible.
- [Adjustable Tailstock]: Taper in Tailstock Spindle: MT3. Rotate the lever clockwise to lock the spindle, and rotate clockwise to advance the handwheel. To off-set the tailstock for cutting tapers by adjusting the four set screws located on the tailstock base.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The mini lathe is custom for you who are into making models, a Do-it-yourself (DIY) machinist, or a gun hobbyist. You can use it to create threaded parts as well as small components made with precision. The small but powerful 210*350 mm lathe of a thread range of 10-44 T.P.I will be the exact machine to fill in the vacancy in your garage.
Specifications:
Power of Motor: 600W
Volt: 110V 60Hz
Material: Cast Iron
Spindle Speed: 50-2250 RPM ±10%
Swing Over Bed: 8.3" / 210 mm
Swing Over Cross Slide: 13.8" / 350 mm
Spindle Bore: 0.8" / 21 mm
Chuck Diameter: 3.9" / 100 mm
Spindle Taper: MT3
Tailstock Taper: MT2
Item Weight: 116.2 lbs / 52.27 kg
Item Dimensions: 32.6" × 12.2" × 13" / 82.9 × 31.2 × 33.2 cm

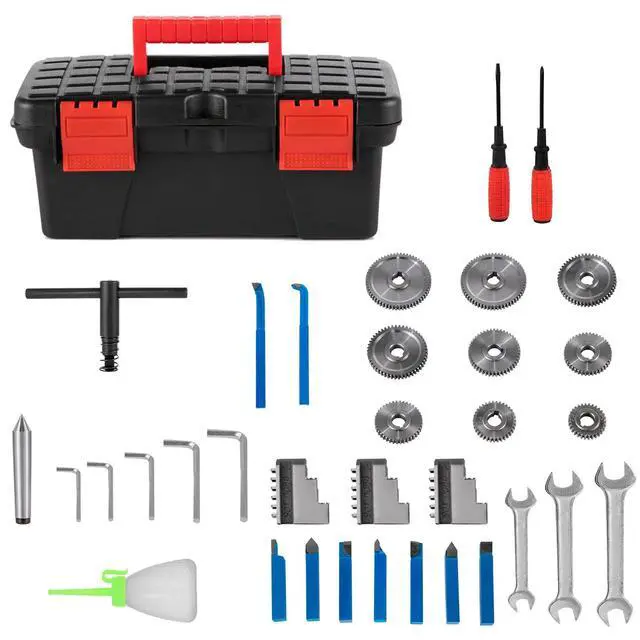

Package Content
1 x Mini Metal Lathe
9 x Metal Gears
3 x Jaws
1 x Oil Gun
9 x Cutters
5 x Allen Keys
1 x Accessory Kit
1 x Tool Kit
Product information
| Lathe type | Mini Lathes |
| Swing over bed | 8.3 in |
| Swing over cross slide | 13.8 in |
| Spindle speed | 2250 rpm |
| Chuck type | Three Jaw Universal Chucks |
| Chuck size | 3.9 in |
| Spindle taper | MT3 |
| Brand | SIHAO |
| Electrical phase | Single Phase |
| Volts | 110 V |
| Features | Accurate, Easy Installation, Easy To Operate |
| Manufacturer Part Number | 8JSMNCC |
