Steel Dragon Tools® Variable Speed Mini Milling Machine Benchtop Drilling

This heavy-duty variable speed mini milling and drilling bench top machine comes standard with a high-speed steel 6-piece 4 Flute with 3/8" Shank cutter set. The set includes 1/8", 3/16", 1/4", 5/16", 3/8", and 5/32" size cutters. This mill has a Drilling and End Mill Capacity of 3/8" along with a Face Mill Capacity of 5/8".

Specifications:

• Drilling Capacity: 3/8"


• End Mill Capacity: 3/8"


• Face Mill Capacity: 5/8"


• Max X-Axis Table Travel: 8.5"


• Max Y-Axis Table Travel: 6.5"


• Max Z-Axis without collet: 10"


• Spindle Taper: MT #2


• Spindle Stroke: 1 3/16"


• Throat: 5 1/2"


• Table Size: 9.45" x 5.70"


• Spindle Speed: Low: 0~1000 RPM High: 0~2000 RPM


• Motor Output Power: 150W

Features:

• Designed for drilling, deep milling and face milling

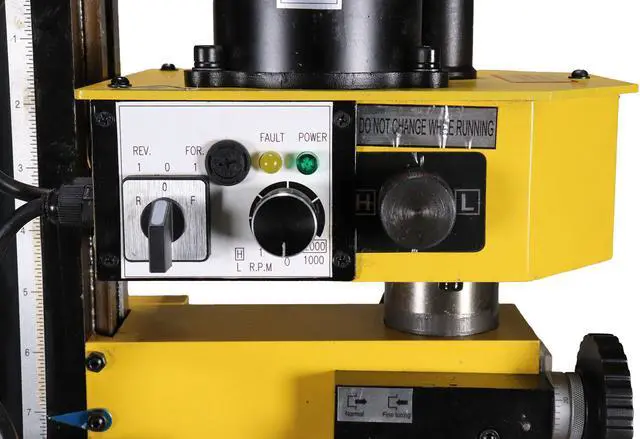

• Variable speed control


• FWD/REV switch


• Safety shut off switch


• Adjustable depth stop


• Fine feed hand wheel


• Crossfeed hand wheel


• Lifting hand wheel


• Longitudinal feed hand wheel


• Geared drive


• A clear guard on the spindle


• Rubber chip guards on ways


• Zero setting dials read in inches

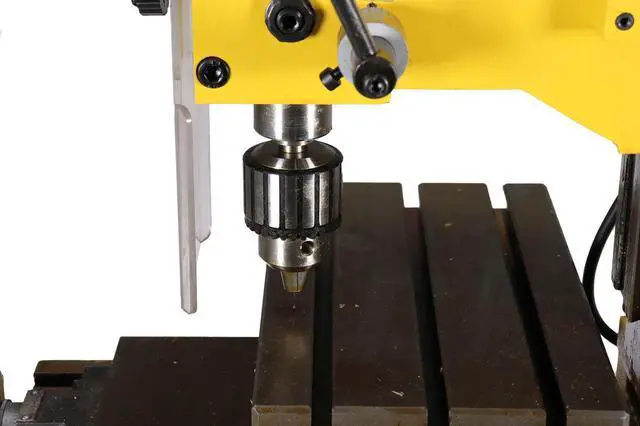

• Chuck Capacity: 1/16"-3/8"

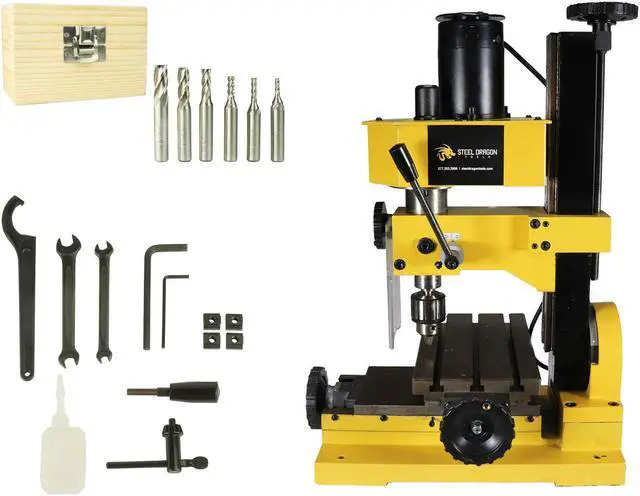

Includes

• High-Speed Steel 6-piece 4 Flute with 3/8" Shank set


• Includes 1/8", 3/16", 1/4", 5/16", 3/8" and 5/32" sizes


• Drawbar


• Spindle locking pin


• 4 T-slot nuts


• Oil can


• Spanner wrench for the spindle nut


• Hex wrenches


• Open-end wrenches
