9" Monitor Tube Inspection Camera 512Hz Tube Locator 7mm Diameter Endoscope

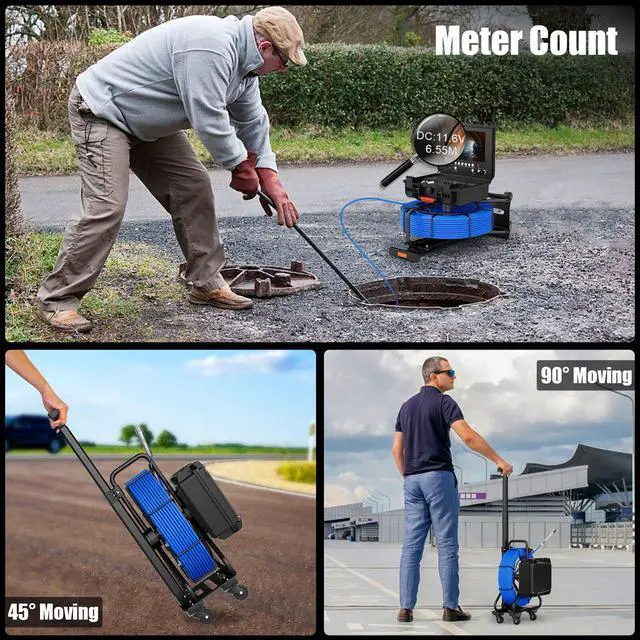

Portable Trolley Pull Rod and High-strength Cable: The sewer camera with trolley pull rod, easy to carry with. High-strength and flexible push rod cable plumbing camera has a fiberglass push rod cable ,which is industrial standard, rigged and flexible, ideal for any workspace. Simultaneous display/cleared Metric and Feet.

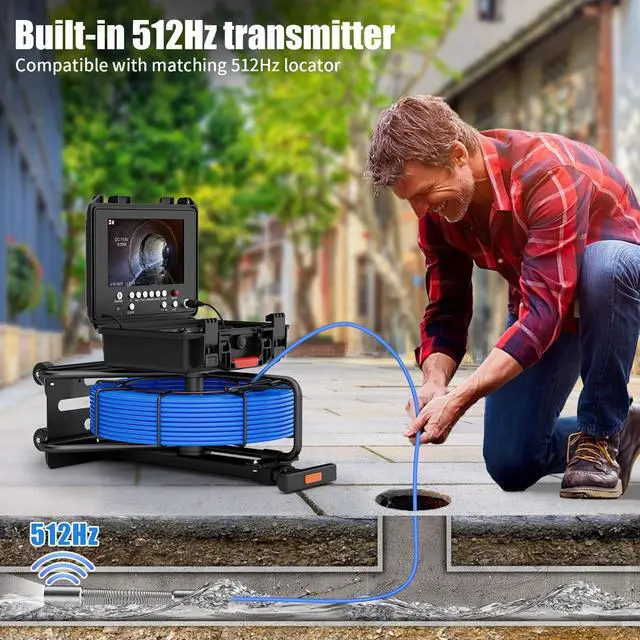

512HZ TRANSMITTER And Self-Leveling Camera:

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmittersposition underground.

512HZ Receiver Technical Parameters:

Receiver Frequency: 512HZ

Distance: about 5m

Battery: 3.7V 3000MAH built-in lithium battery

Charger: 5V1A

Battery Indicator:4 gear,it is flashing when battery is low

Battery working time:about 10 hours

Signal strength:6 gear

Speaker:Support

Detect Mode : Far/ Near

Video + Audio + 5X Image Enlarge:

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,32GB TF card included,it is avialiable to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. (DVR Edition Video Format :AVI Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times

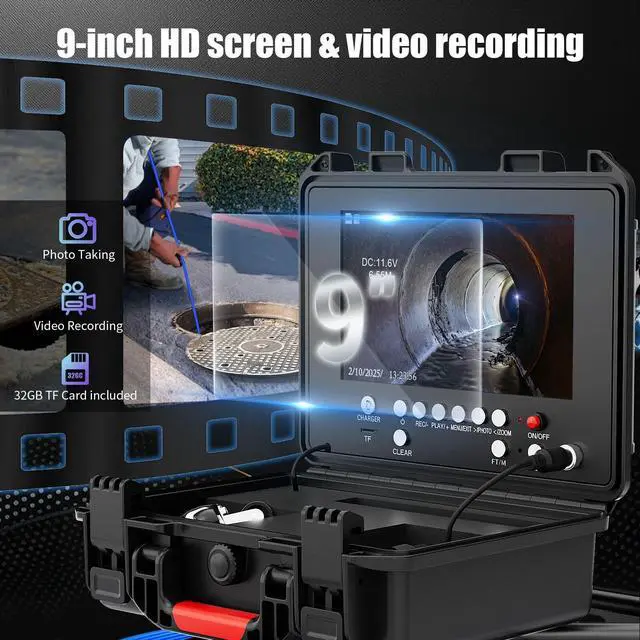

MONITOR&CABLE:

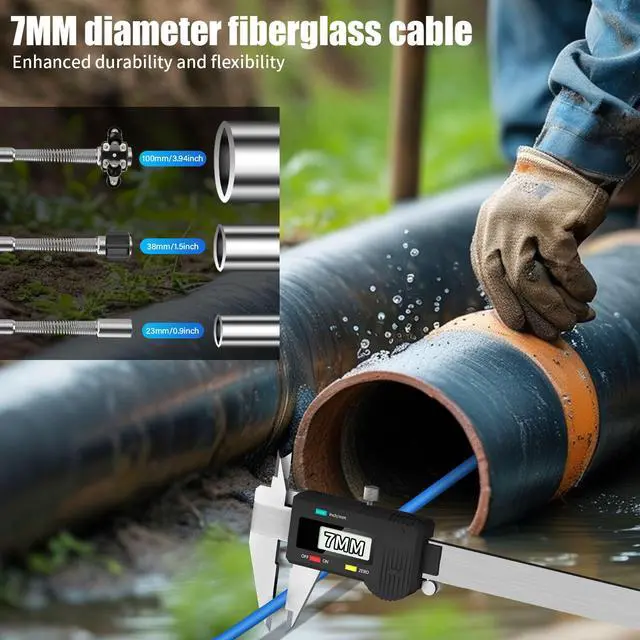

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 9 inch es color IPS LCD monitor with a sun-visor for outdoor inspections. The material of wire is fiberglass rod(diameter: 7MM),anti-corrosion/cold/tensile.

DVR Recording Function:

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,32GB card included,it is avialiable to view live video and save video recording and photos and audio record. You can record the inspections and playback via the pipe system. (DVR Edition Video Format :AVI Photo format :JPG)

Applications:

Blocked / slow draining plumbing.

Wall / wire inspection.

Home owners inspection.

Item: parameter

1. Monitor:9 inch IPS color record monitor with sun-visor for bright environment outside

2. TF Card: Memory Support maximum 128G TF card(32G TF card included)

3. 512hz:Built in 512hz transmitter

4. Receiver Frequency: 512Hz

5. Camera :Auto Self Leveling AHD 1080P

6. Charger: AC100-240V DC12.6V

7. Battery: Luminal-cell arrester 4.5AH

8. continuous use time for battery: approximate 8h

9. investigation depth:30M( selectable line length)

10. material: fiber tube with /high intensity

11. camera light source: 12 PCS LED with high while light(adjustable)

12. camera viewing angle: 145°

13. Lens Mirror Material : Sapphire

14. camera size/material: 23MM* 40MM /stainless steel

15. camera protective cover parts size/material:38MM* 28MM /plastic-steel

16. camera protective cover parts size/material:99MM* 45MM /plastic-steel with wheel

17. camera picture: color

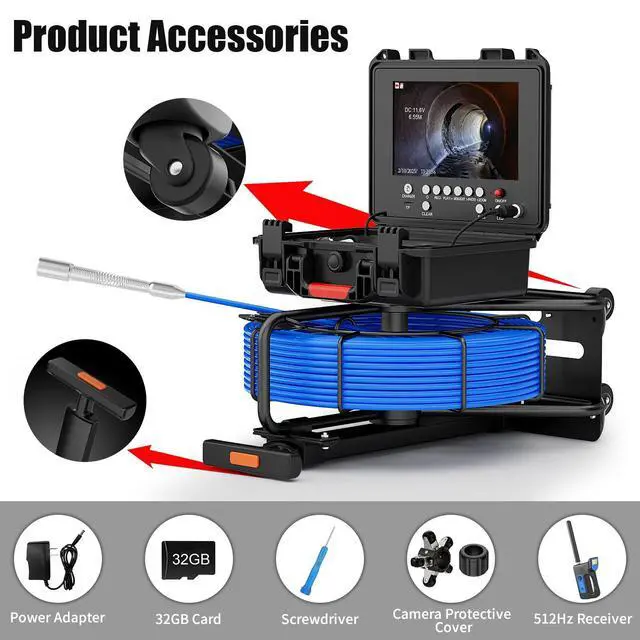

Package List:

1 * 9 inch IPS Monitor(DVR+Built in 4500mah)

1 * Camera (AHD 1080P Auto Self Leveling and 512hz )

1 * 512Hz PIPE Locator

1 * 32GB TF Card

1 * 30M Fiberglass Cable

2 * Camera Proof Cover

1 * Charger

1 * Connection Cable

1 * Screw Driver

1 * User Manual (English)
