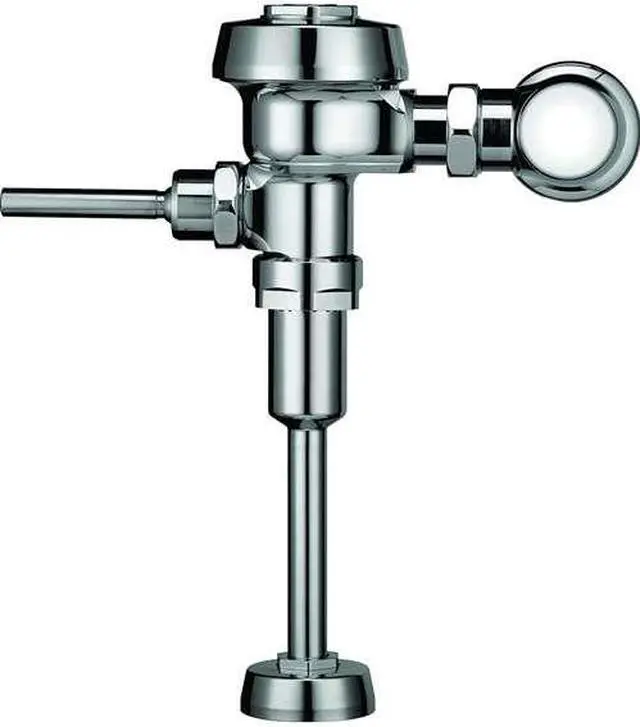

SLOAN ROYAL 186-1 Genuine OEM FLUSHOMETER 1.0 GPF FOR URINAL

Choose SLOAN the Worlds Leading Manufacturer of Commercial Plumbing Systems. SLOAN ROYAL 186-1 Wall Hung FLUSHVLV-URINAL Flushometer.

Exposed Urinal Flushometer, for 3/4" top spud urinals.

SLOAN 3012636 Flush Cycle:
1.0 gpf/ 3.8 lpf

Specifications:
This Sloan Flush Valve Quiet, Exposed, Diaphragm Type, Chrome Plated Wall Hung Urinal Flushometer with the following features:

• PERMEX+ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
• ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
• 3/4" I. P. S. Screwdriver Bak-Chek+ Angle Stop
• Free Spinning Vandal Resistant Stop Cap
• Adjustable Tailpiece
• High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
• Spud Coupling and Flange for 3/4” Top Spud
• Sweat Solder Adapter with Cover Tube & Cast Wall Flange with Set Screw
• High Copper, Low Zinc Brass Castings for Dezincification Resistance
• Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
• Flush Accuracy Controlled by CID+ Technology
• Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX+ Rubber Compound for Chloramine Resistance
• Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19. 2, and Military Specification V-29193
