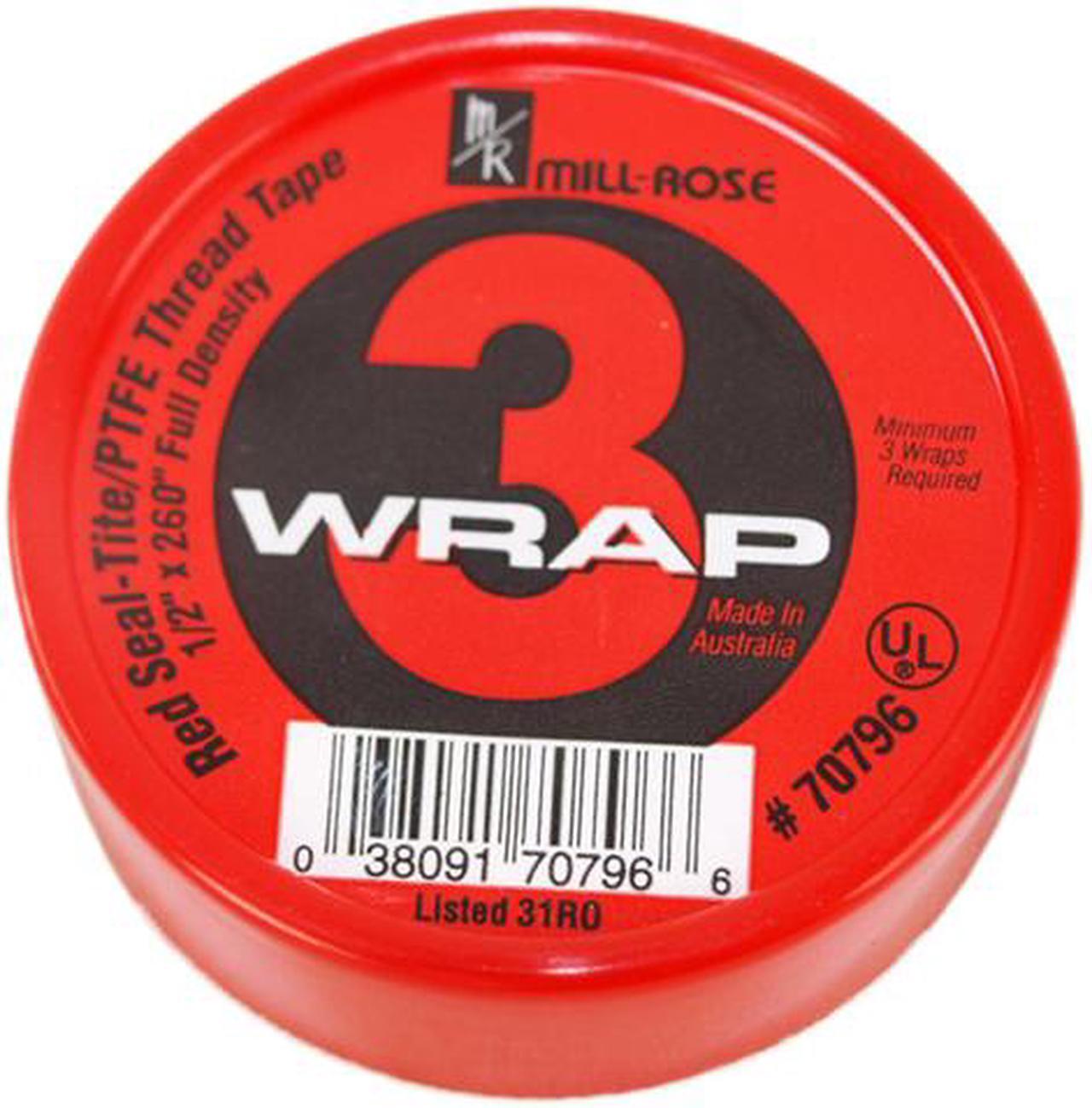

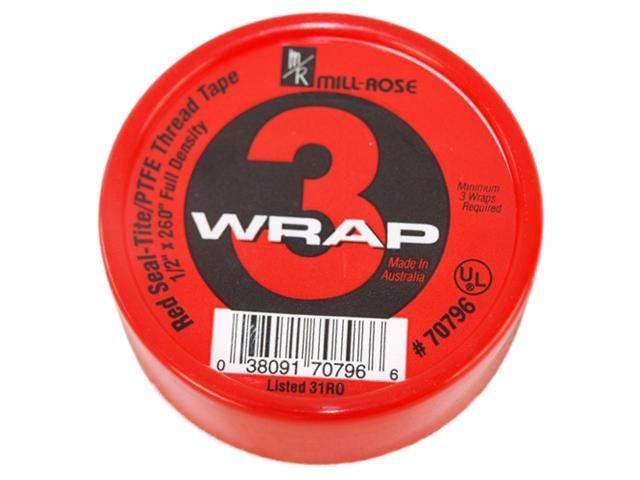

MILL-ROSE 70796 1/2" x 260" 3-WRAP Red Waterline Teflon PTFE Thread Seal Tape

MILL-ROSE 70796 1/2" x 260" 3-WRAP Red Waterline Teflon PTFE Thread Seal Tape.
Mill-Rose 3-Wrap Red Thread Sealing Tape is a PTFE tape designed specifically to seal lines carrying steam, water and other liquids. This is a full or maximum-density tape. Unlike most thread sealing tapes on the market, 3-Wrap tape has not been stretched during the manufacturing process. Stretching lowers the apparent density of tape by increasing its porosity. As stretched tape is more porous, more tape is required to obtain an effective seal.

Applications: Use 3-Wrap Red Waterline Tape on pipe made from galvanized steel, iron, brass, copper, aluminum, stainless steel, polyethylene, polypropylene, PVC, CPVC, ABS and fiberglass.

Specifications:

Composition: 99.0 % PTFE <1.0%

Pigment Color: Pink

Thickness: 0.004 +/-10% ( 0.102 mm +/-10%)

Density: 1.5 g/cm3 +/-10%

Elongation: >100%

Pressure rating: In tests conducted by an independent laboratory Mill-Rose 3-Wrap Red Waterline Seal Tape was found to seal fittings carrying water at pressures up to 4, 347 PSI or 30, 000kPa when applied as per instructions.
Note: Pressure ratings are relative to the quality and torque of the fittings and the amount of tape used.

Temperature range: -450 °F to +500 °F (-268 °C to + 260 °C) PTFE is completely stable up to +500 °F or +260 °C. Decomposition is slow up to 750 °F or 400 °C. Decomposition will occur on contact with naked flames.

Tensile strength: 10-17 N/mm2
