In Audio Out 4K USB 2.0 Capture Card HDMI Loop Out Game Graphics Video Recording Box for PS4 Game Live Streaming USB 3

In Audio Out 4K USB 2.0 Capture Card HDMI Loop Out Game Graphics Video Recording Box for PS4 Game Live Streaming USB 3

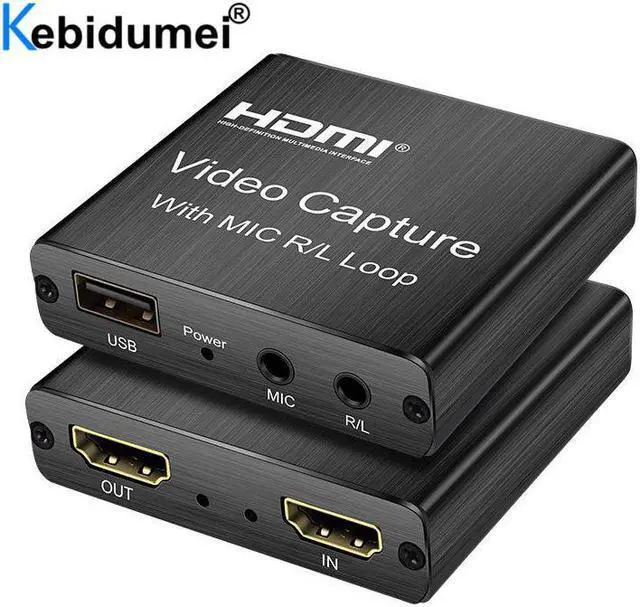

Description:

This USB2.0 capture card can collect HDMI audio

and video. HDMI audio and video signals can be

transmitted to the computer and smartphone for preview

and storage. Suitable for high-definition acquisition,

teaching recording, medical imaging, etc.

Features:

Support input resolution up to 4K

Support output resolution up to 1080P

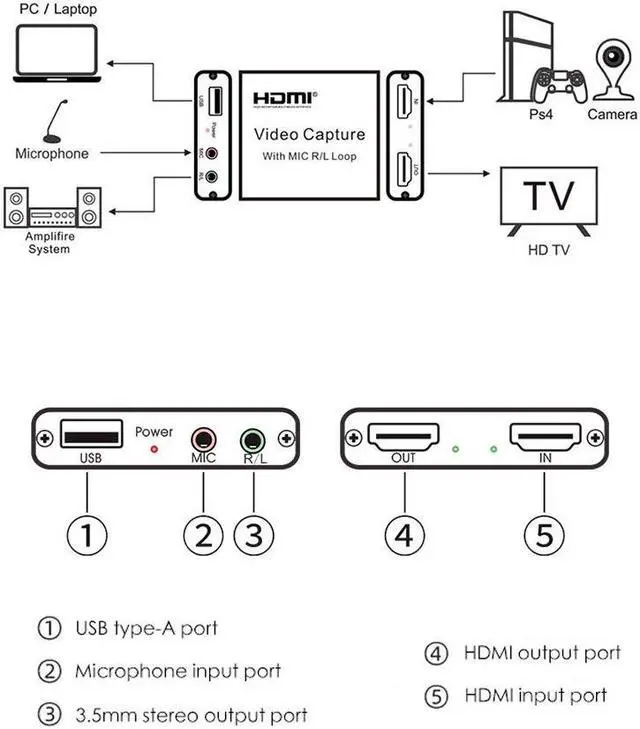

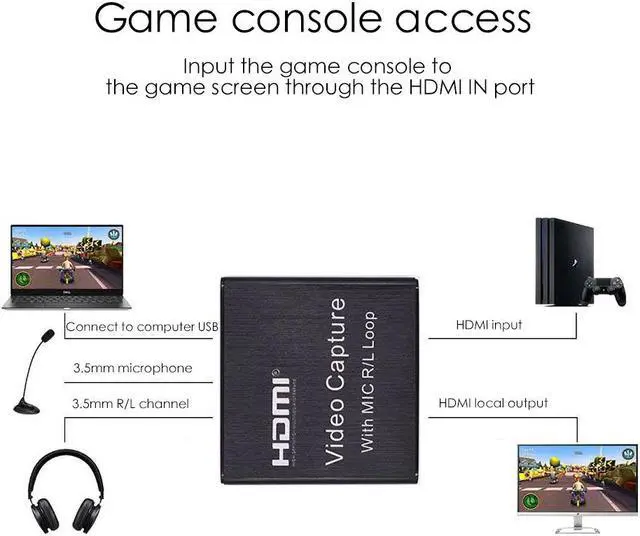

One HDMI input, One HDMI loop out, Watching and

Recording

One rophone input

One 3.5mm stereo output

Support 8/10/12 bit color depth

Support AWG26 HDMI standard cable, the

maximum input transmission distance is 15 meters

1080P and below resolution)

Support most acquisition software, such as VLC,

OBS, Amcap, etc.

Support Windows, Android and MacOS

Complies with USB video UVC specifications

Complies with USB audio UAC specifications

No external power supply, compact size, easy to carry.

Specification:

HDMI resolution.....................Maximum input support 4K

Video input format ...................... 8/10/12-bit color depth

Video output mode..............................................MJPEG

Video output resolution........ Maximum output resolution

1080P @ 30Hz

Support audio format ............................................ LPCM

Input cable length. 15m, AWG26 HDMI standard cable

Maximum working current...........................0.4A / 5V DC

Operating temperature range...................(-10 to + 55 )

Product size(LxWxH).................................68x27x9(mm)
