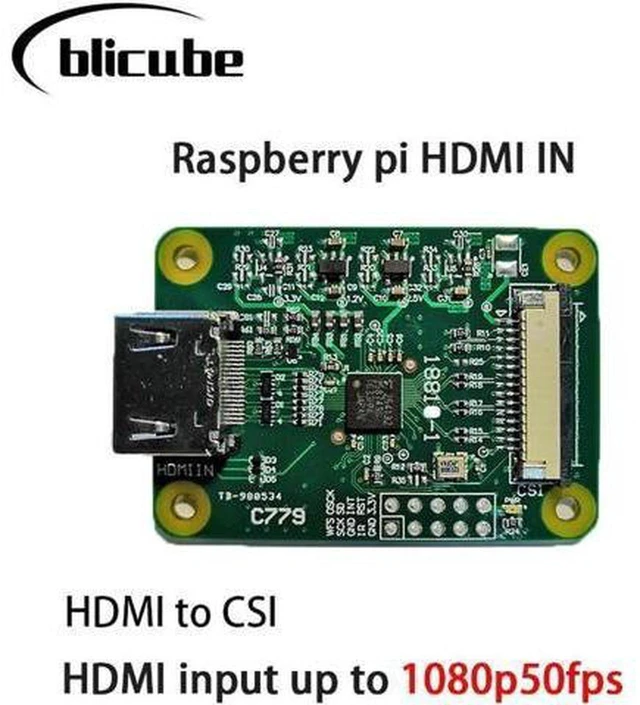

AJMRTC C779 HDMI to CSI-2 Adapter Board for Raspberry Pi, TC358743 Chip, Up to 1080P@50fps Low Latency Video Capture Module for PiKVM, IP-KVM, Live Streaming
- - Built with Toshiba TC358743XBG bridge chip, converts HDMI video signal to MIPI CSI-2 for Raspberry Pi CSI camera port
- - Max capture resolution 1080P@50fps, compatible with 720P and other standard video formats
- - Works natively with PiKVM for low-latency H.264 encoding, better performance than USB capture dongles
- - 2-lane CSI-2 transmission, supports I2S audio extraction from HDMI source for audio capture
- - Compact PCB with M2.5 mounting holes, plug and play after enabling CSI camera in Raspberry Pi config
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

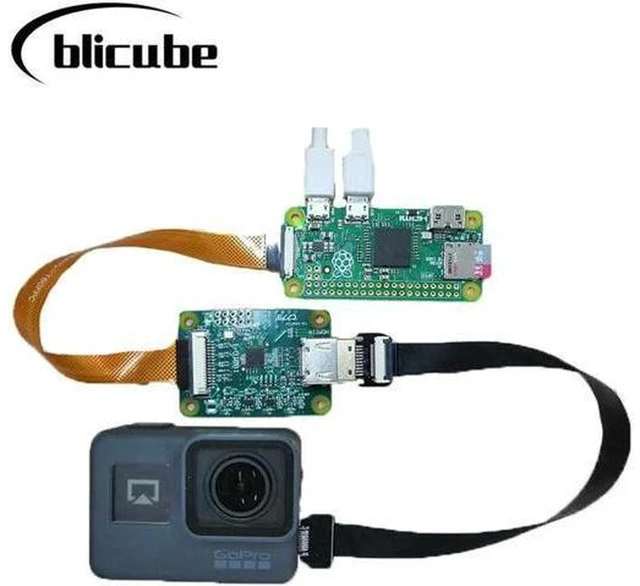

AJMRTC C779 HDMI to CSI-2 converter is a popular capture board for DIY PiKVM projects. It turns HDMI output from PC, server, NVR and game console into CSI-2 signal that Raspberry Pi can read directly via its native camera interface. Thanks to the TC358743 chip, it delivers much lower latency than common USB HDMI grabbers and works reliably in BIOS/UEFI screens. It supports embedded HDMI audio output via I2S, which completes your remote KVM audio-video workflow. It fits Raspberry Pi Zero, 3B, 4B and other models with CSI port.
Specifications
- Brand: AJMRTC
- Model: C779
- Chipset: Toshiba TC358743XBG
- Input: Standard HDMI Female

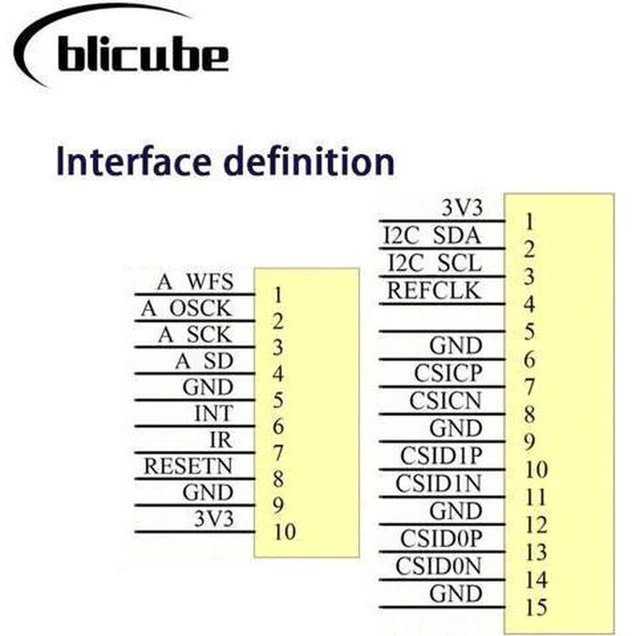

- Output: CSI-2 15Pin FPC (1.0mm pitch), I2S Audio
- Max Video: 1080P@50fps
- CSI-2 Lane: 2 Lanes
- Power: 3.3V supply

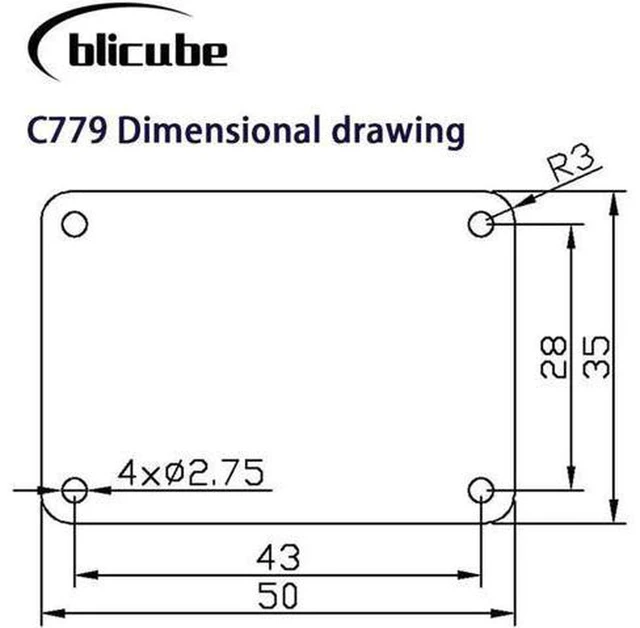

- PCB Size: 50mm × 35mm
- Mounting Hole: M2.5
- Compatible: Raspberry Pi Zero / 3B / 4B / CM series
- Application: PiKVM, BliKVM, IP-KVM, Live stream, Industrial video capture
- Supported OS: Raspberry Pi OS, PiKVM OS
- Working Temperature: 0 ~ 55
- Note: 1080P@50fps hardware limit, cannot reach 1080P@60fps on 2-lane CSI-2
