Ventilation. With easy access.
801EC8038 Enclosure Filter Fan
Choose the exact electrical variant for your cabinet. Plan the fit and leave access for service.

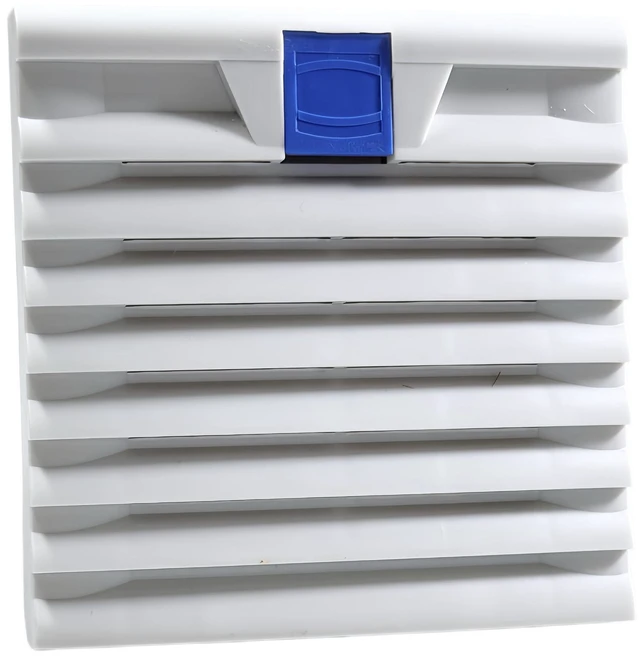

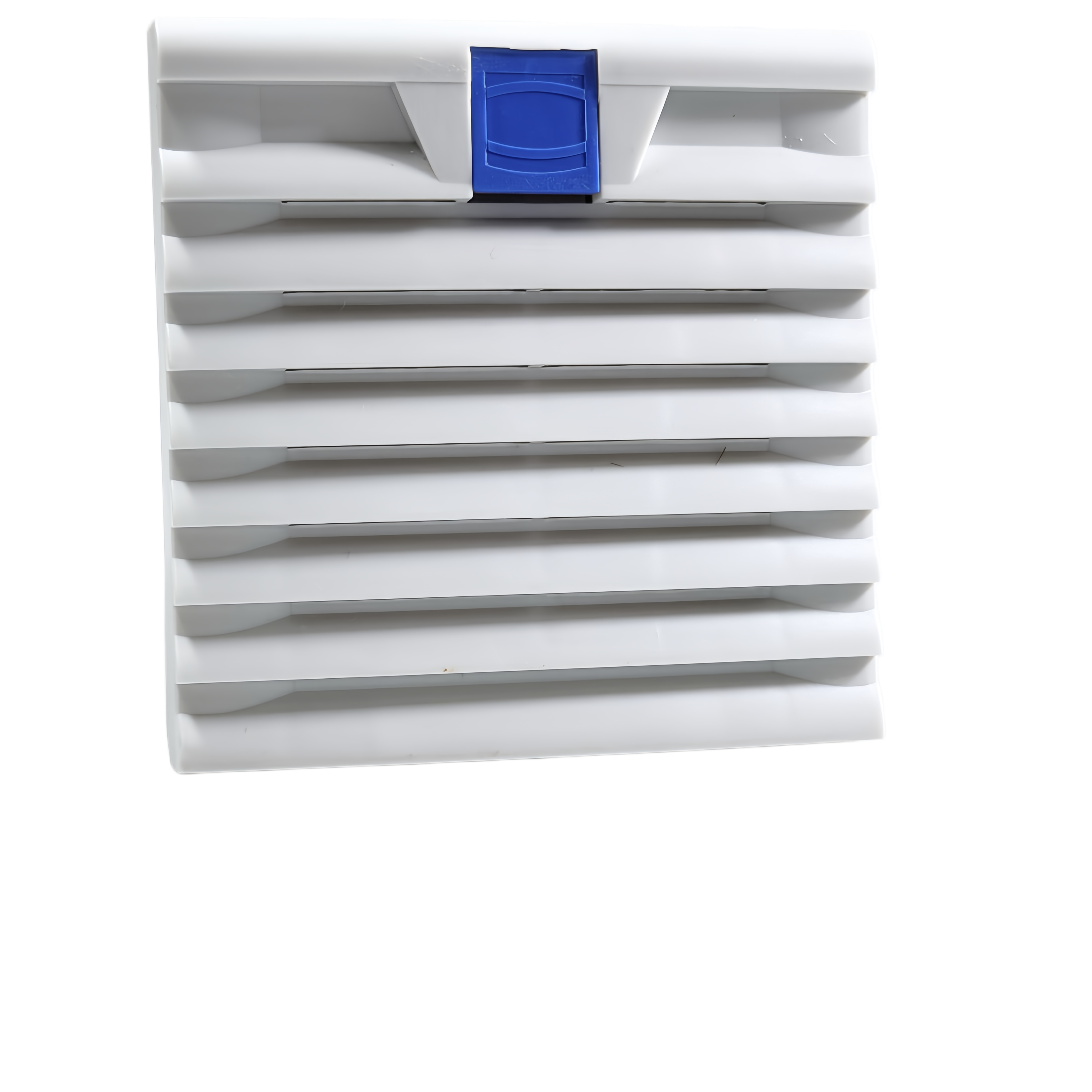

801EC8038 Louvered Front
See the Front of the Assembly
The white louvered face sits at the front of the assembly with a blue latch at the upper edge. Plan space for the complete assembly behind the panel and keep the front ventilation area clear.
See the details before you choose.
Louvered front
A finished enclosure face. Keep the ventilation opening clear.

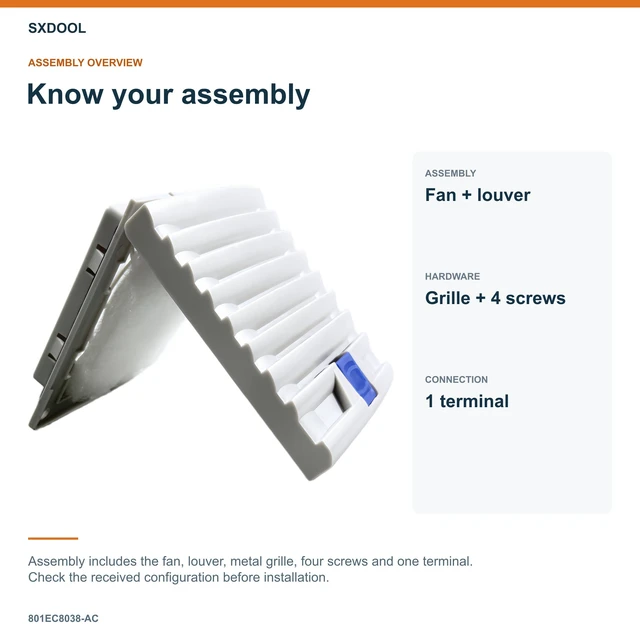

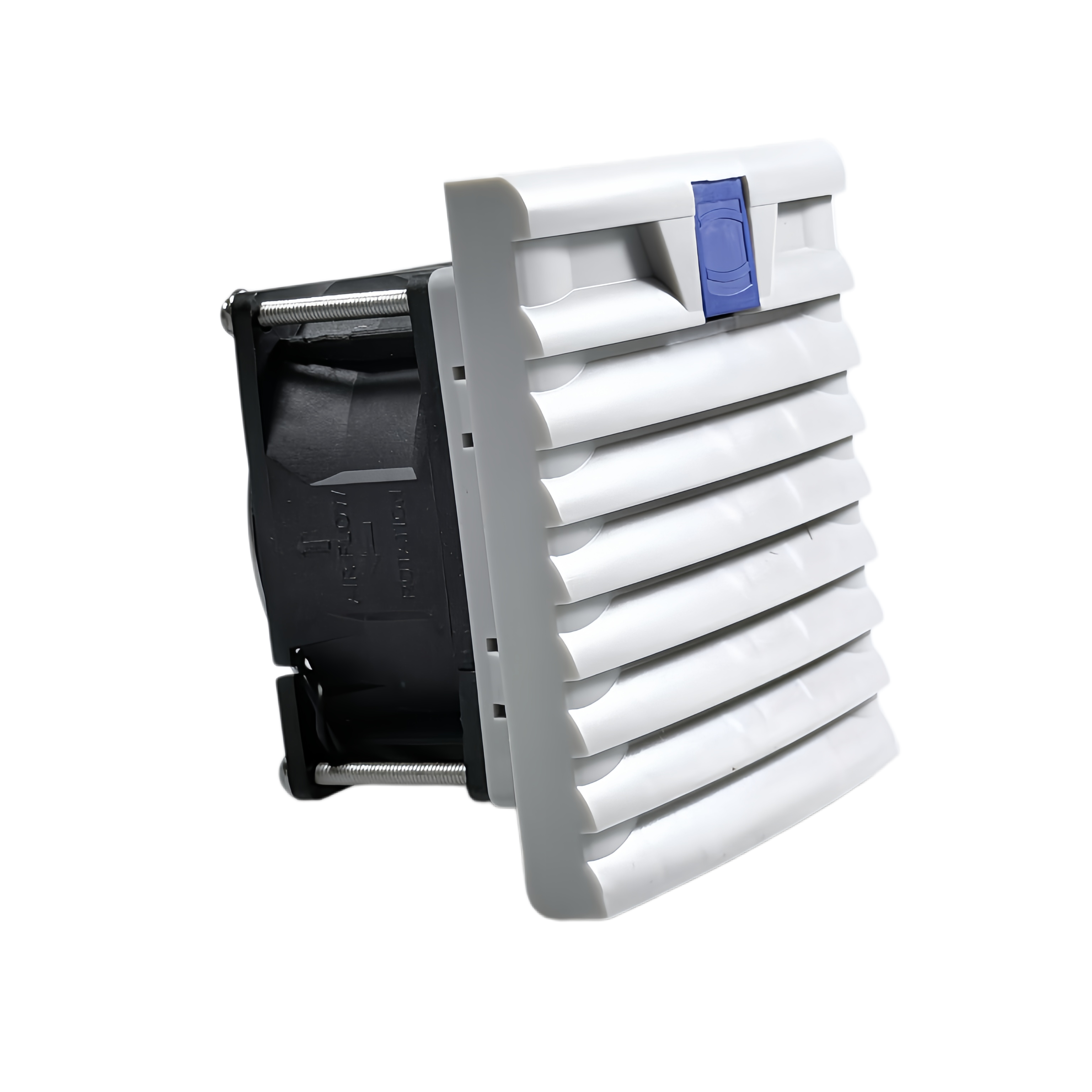

Assembly details
Review the photographed housing and allow space behind the panel.

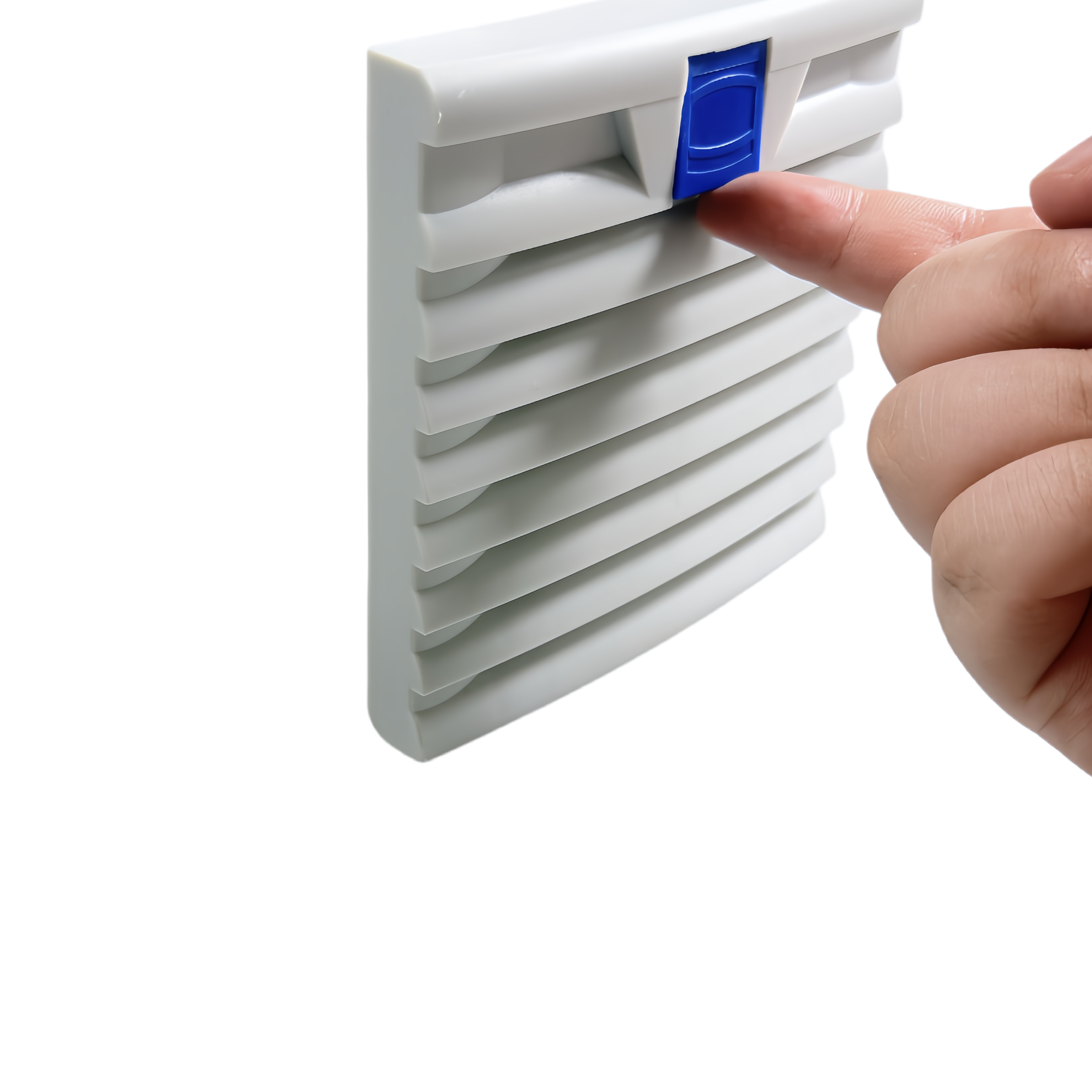

Front cover access
Leave room to reach the blue latch and open the cover for inspection.
Plan your cabinet ventilation.
Control panels / Automation / Electronics
Application concepts. Check ambient conditions and enclosure requirements for your installation.
Make room for routine service.

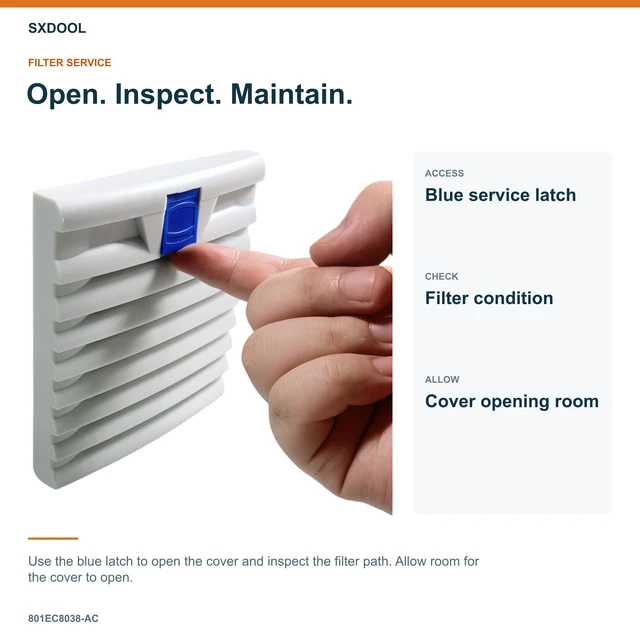

Front cover and latch access
Keep the latch reachable and leave space for the front cover to open. Disconnect power before opening or inspecting the assembly.
Measure. Match. Maintain.
Three checks before installation

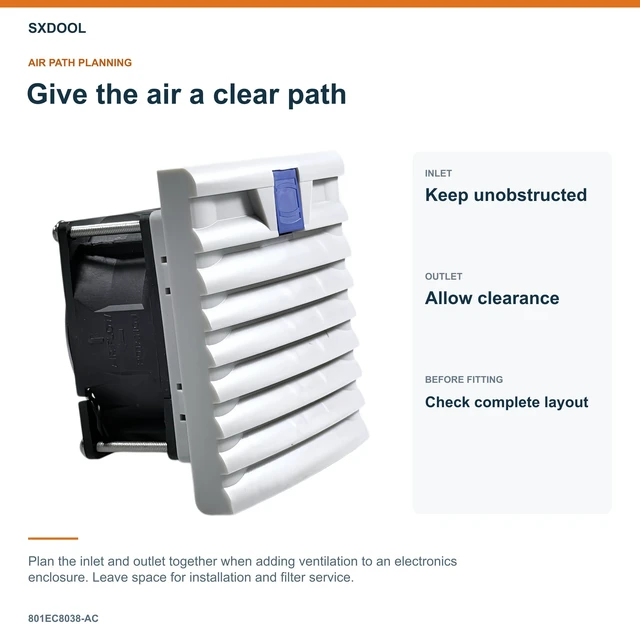

1. Measure the panel opening and complete assembly depth against the drawing. 2. Match the exact AC or DC variant to your power supply. 3. Keep the air path and front service space clear. Disconnect power before installation or maintenance.
Technical Specifications
Separate ratings for each electrical variant
| Model variants | 801EC8038-AC / 801EC8038-12V / 801EC8038-24V |
|---|---|
| Fan dimensions | 80 x 80 x 38 mm |
| Overall assembly | 106 x 106 x 71 mm |
| Panel cutout | 82 x 82 mm / 3.23 x 3.23 in |
| Bearing | Dual ball bearing |
| Rated voltage | AC: 115/230V AC | 12V: 12V DC | 24V: 24V DC |
| Rated current / power | AC: 5.0 W | 12V: 0.45 A | 24V: 0.45 A |
| Speed | AC: 3500 RPM | 12V: 4500 RPM | 24V: 6000 RPM |
| Fan-rated airflow | AC: 42.5 CFM | 12V: 61.5 CFM | 24V: 83.5 CFM |
| Noise level | AC: 34.0 dBA | 12V: 49.0 dBA | 24V: 57.0 dBA |

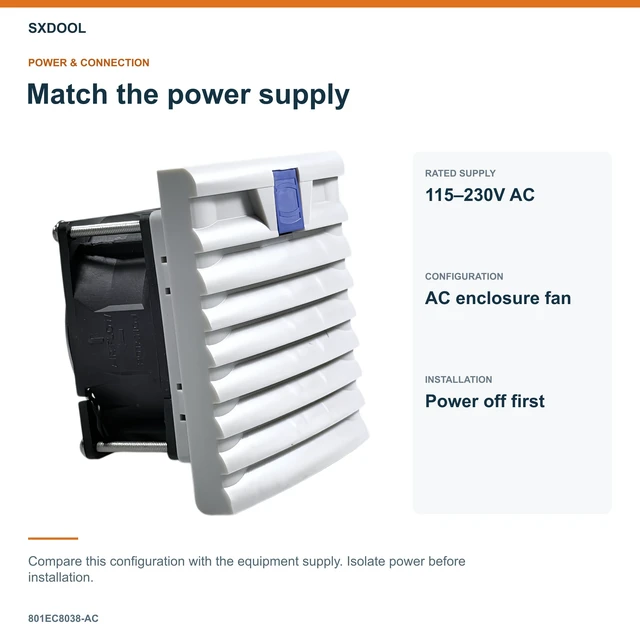

How do I choose the correct electrical version?
Match the complete model suffix and product label to your supply. AC and DC variants are separate products. A similar grille does not make the electrical versions interchangeable.

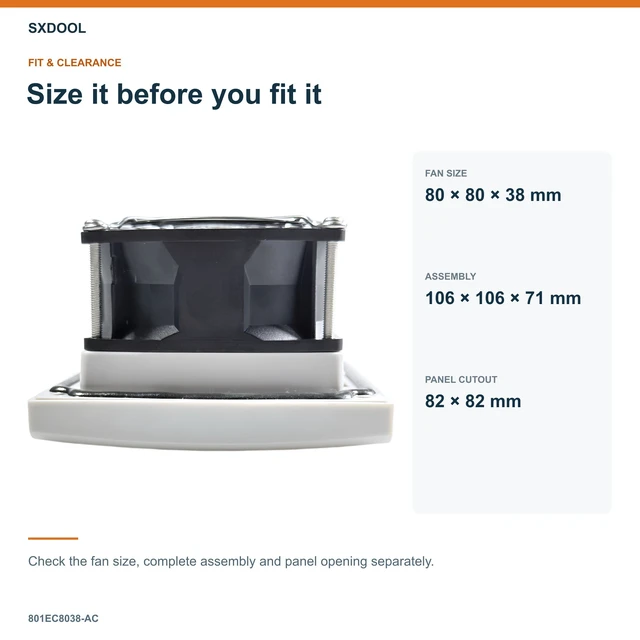

Is the fan size also the required panel opening?
No. Fan frame size and overall assembly size and panel cutout are separate dimensions. Check the model-specific drawing and available depth before cutting the panel.
Will the installed assembly deliver the listed airflow?
The table lists fan-rated airflow. Filters and grilles and enclosure restrictions affect installed airflow. Validate cooling in the completed equipment.
How do I access the front cover?
Disconnect power before maintenance. Keep the blue latch reachable and leave front clearance for the cover to open without forcing it.

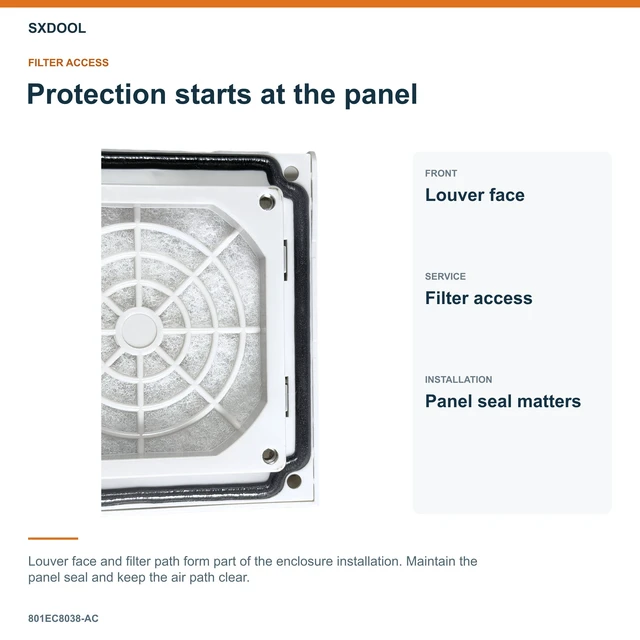

When should I inspect the air path?
Inspect at an interval suited to the dust load and operating environment. Check for blockage and follow the model-specific service instructions.
Can it replace a sealed cooling system?
Open ventilation exchanges air with the surroundings. Check the ambient temperature and contamination level before selecting this approach for your enclosure.
Which other SXDOOL models should I compare?
Compare the related models below by panel opening and assembly depth and exact supply. The linked items are separate choices and may require different mounting or wiring.
| Products | ||||
|---|---|---|---|---|
| Fan dimensions | 80 x 80 x 38 mm | 80 x 80 x 25 mm | 92 x 92 x 25 mm | 92 x 92 x 38 mm |
| Rated voltage | 115/230V AC | 115/230V AC | 115/230V AC | 115/230V AC |
