SXDOOL 802EC9238-AC Enclosure Filter Fan, 92 x 92 x 38 mm, 115-230V AC

802EC9238-AC

Enclosure Filter Fan | 92 x 92 x 38 mm | 115-230V AC

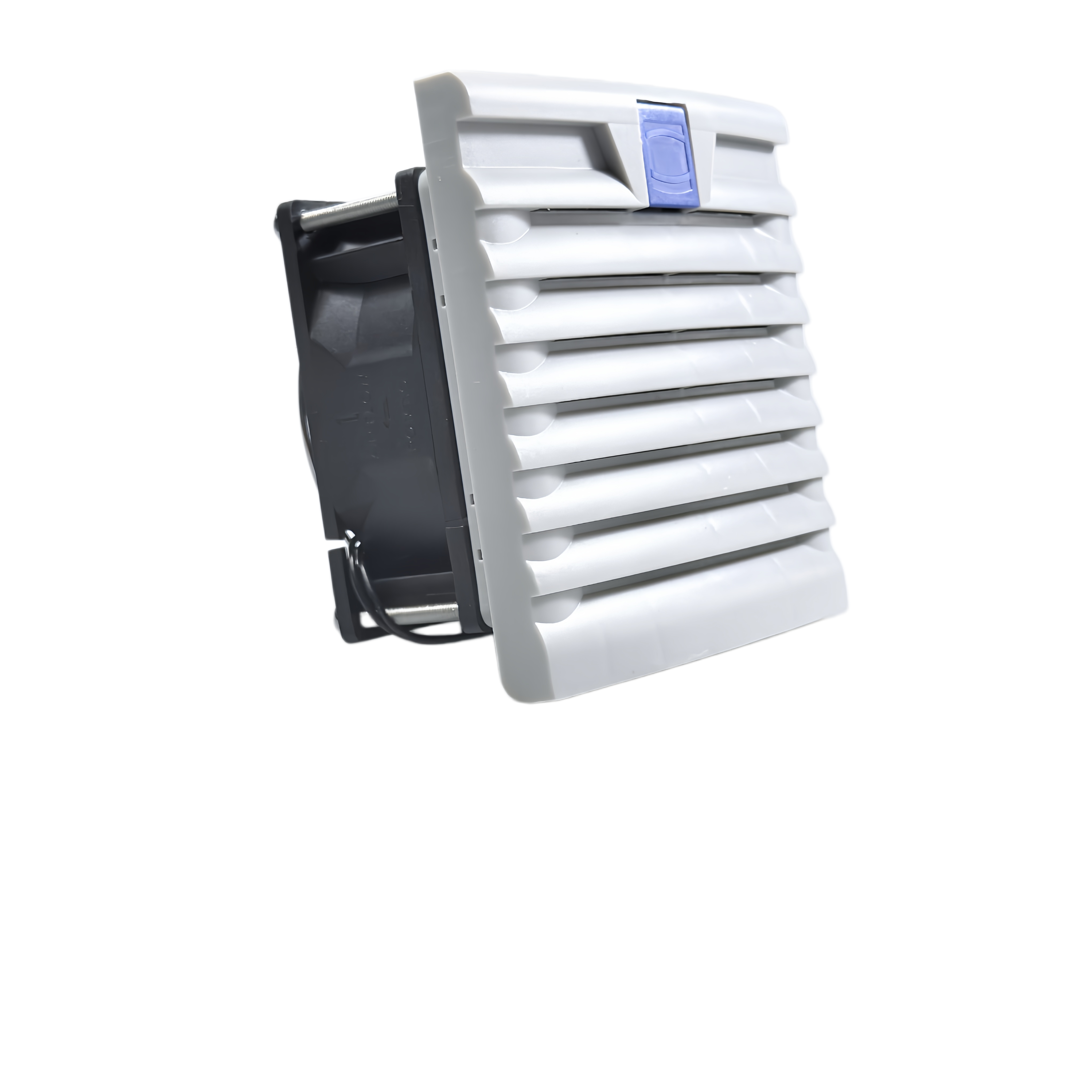

This enclosure filter fan combines a 92 x 92 x 38 mm fan with a louvered panel-mount assembly for control cabinet ventilation. Match the panel cutout and complete assembly depth before installation. The SXDOOL 802EC9238-AC is a 115-230V AC cabinet ventilation assembly for equipment builders and maintenance teams. Its 92 x 92 x 38 mm fan format and louvered panel interface support model-specific selection for industrial enclosures.

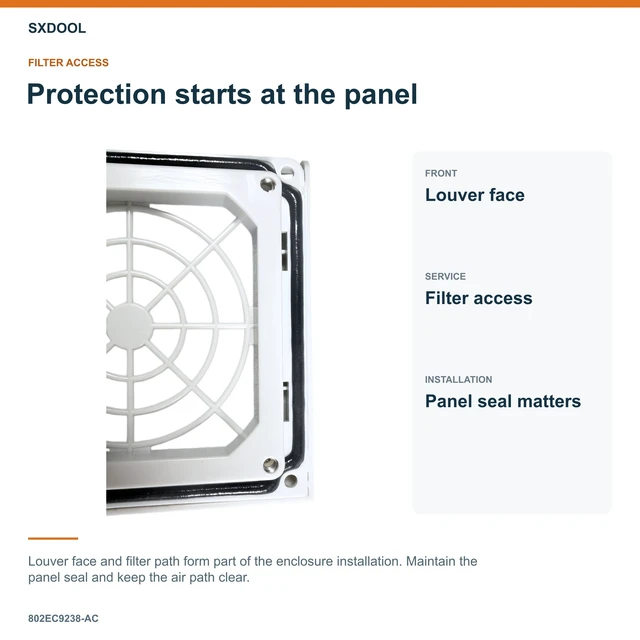

• ENCLOSURE FILTER FAN - This enclosure filter fan combines a 92 x 92 x 38 mm fan with a louvered panel-mount assembly for control cabinet ventilation. Match the panel cutout and complete assembly depth before installation.
• PANEL INTERFACE: Verify the 92 x 92 mm opening, 116.5 x 116.5 x 71 mm installed envelope and 92 x 92 x 38 mm fan format before ordering replacements.

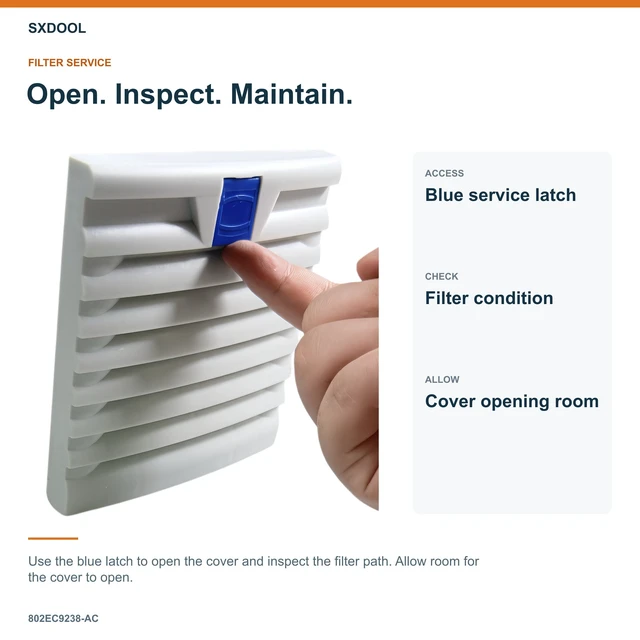

• SERVICE PLANNING: The front latch provides access to the filter path. Reserve front clearance for inspection and routine maintenance.

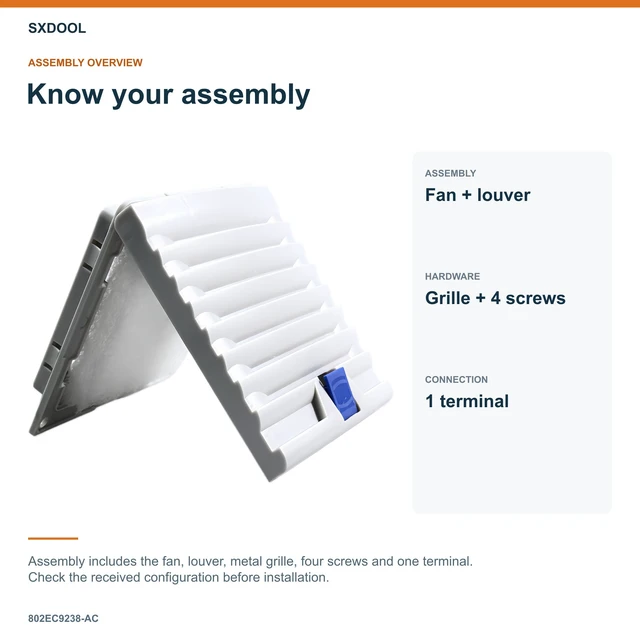

• ONE ASSEMBLY PER UNIT: Supplied with one louvered fan assembly with fan and metal grille, four mounting screws and one wiring terminal; the listed quantity is one kit.

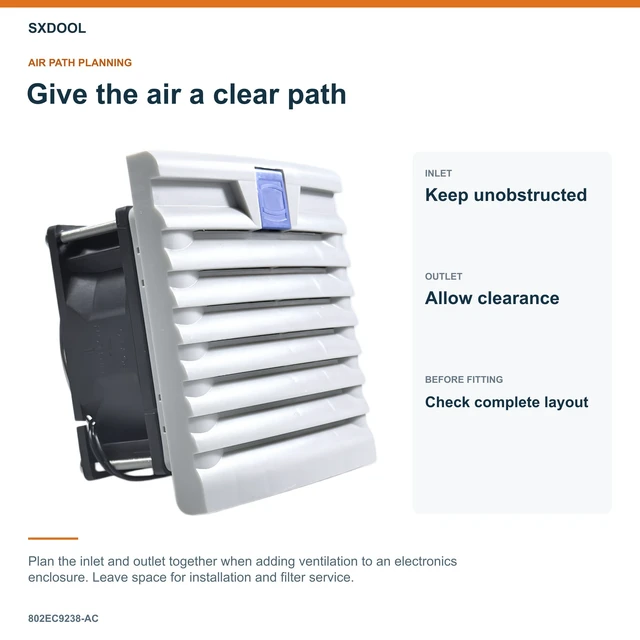

• INTEGRATION CHECK: Confirm mounting, wiring and enclosure airflow requirements against the equipment design before putting the fan into service.

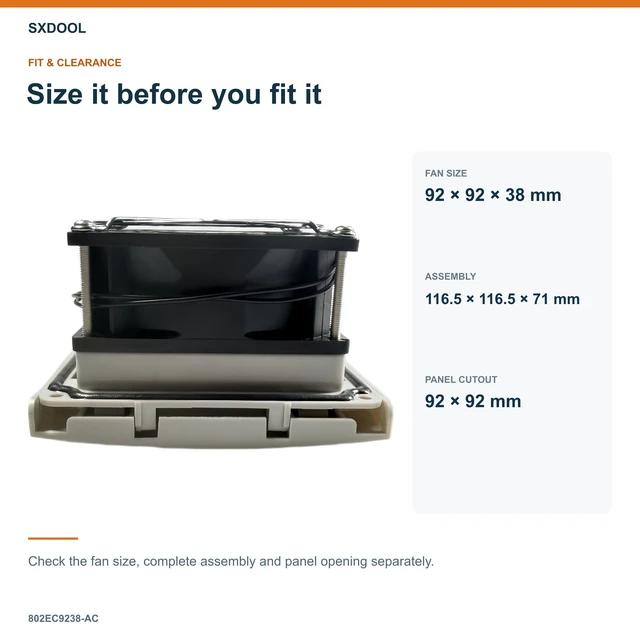

Enclosure fan dimensions and panel fit

Compare the exact model, mounting position and input supply with your equipment before installation.

• Model: 802EC9238-AC
• Fan frame: 92 x 92 x 38 mm
• Electrical input: 115-230V AC
• Panel cutout: 92 x 92 mm
• Complete assembly: 116.5 x 116.5 x 71 mm

Cabinet cooling fan filter access

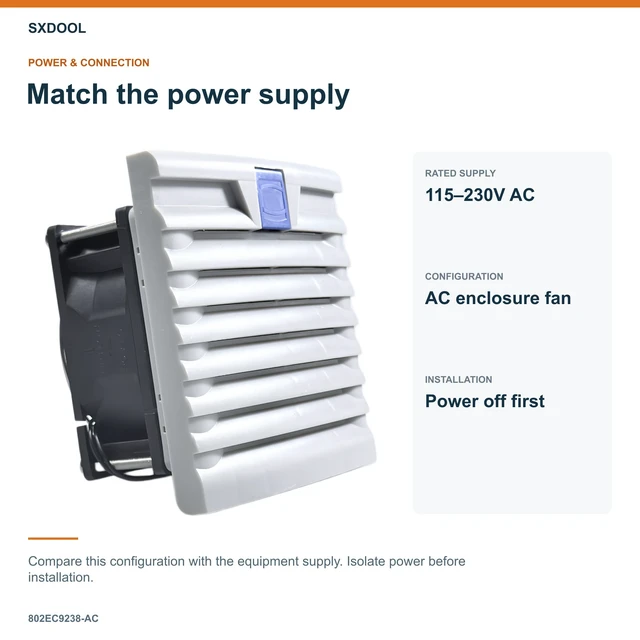

Supply for this exact model: 115-230V AC. Match the product label and equipment wiring.

Receiving checklist

One kit contains one louvered fan assembly with fan and metal grille, four mounting screws and one wiring terminal.

Before installation

What power supply should I use? Use 115-230V AC for 802EC9238-AC. Check the fan label and equipment wiring before connection.

What clearance should I allow? Use 802EC9238-AC as the procurement reference for the 115-230V AC configuration.

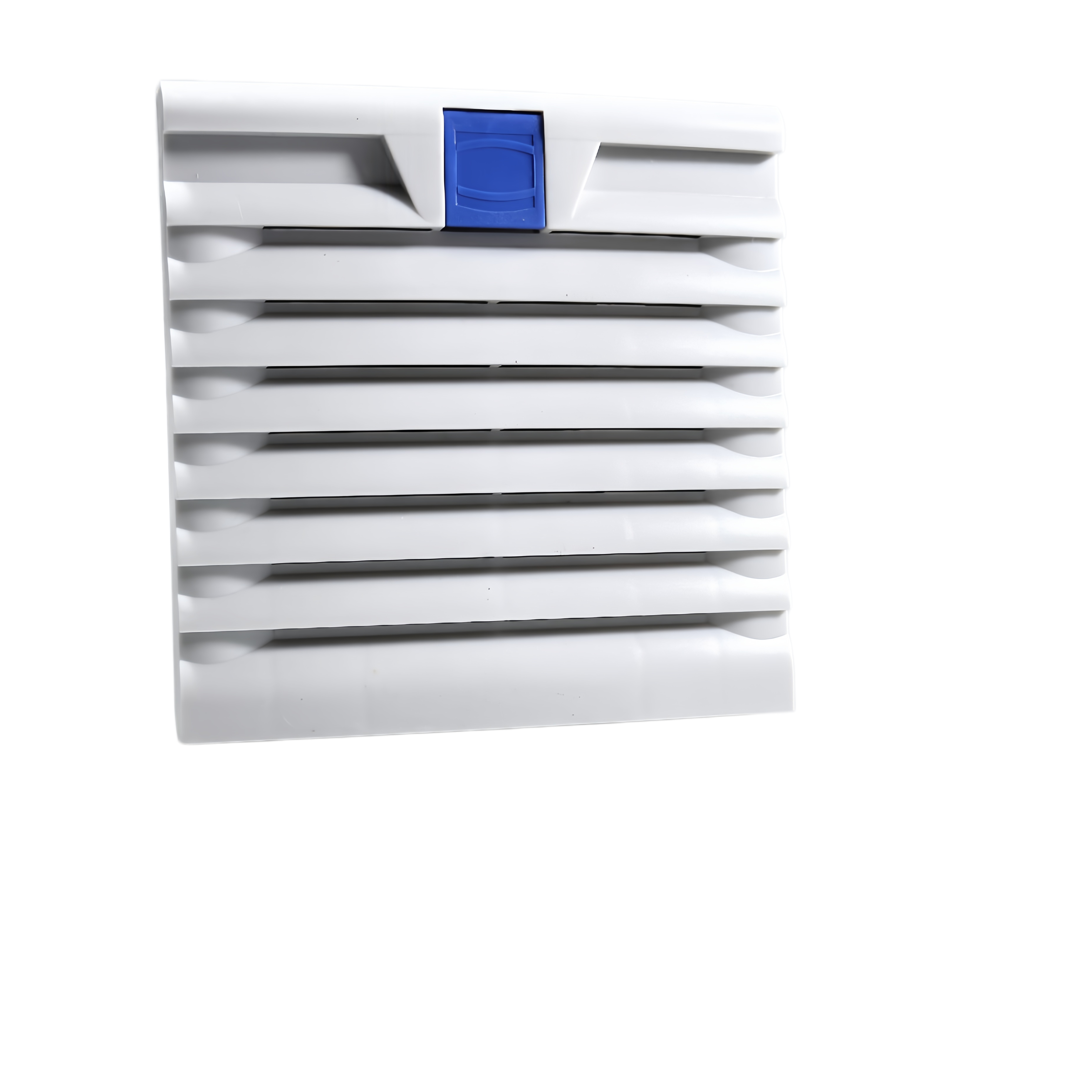

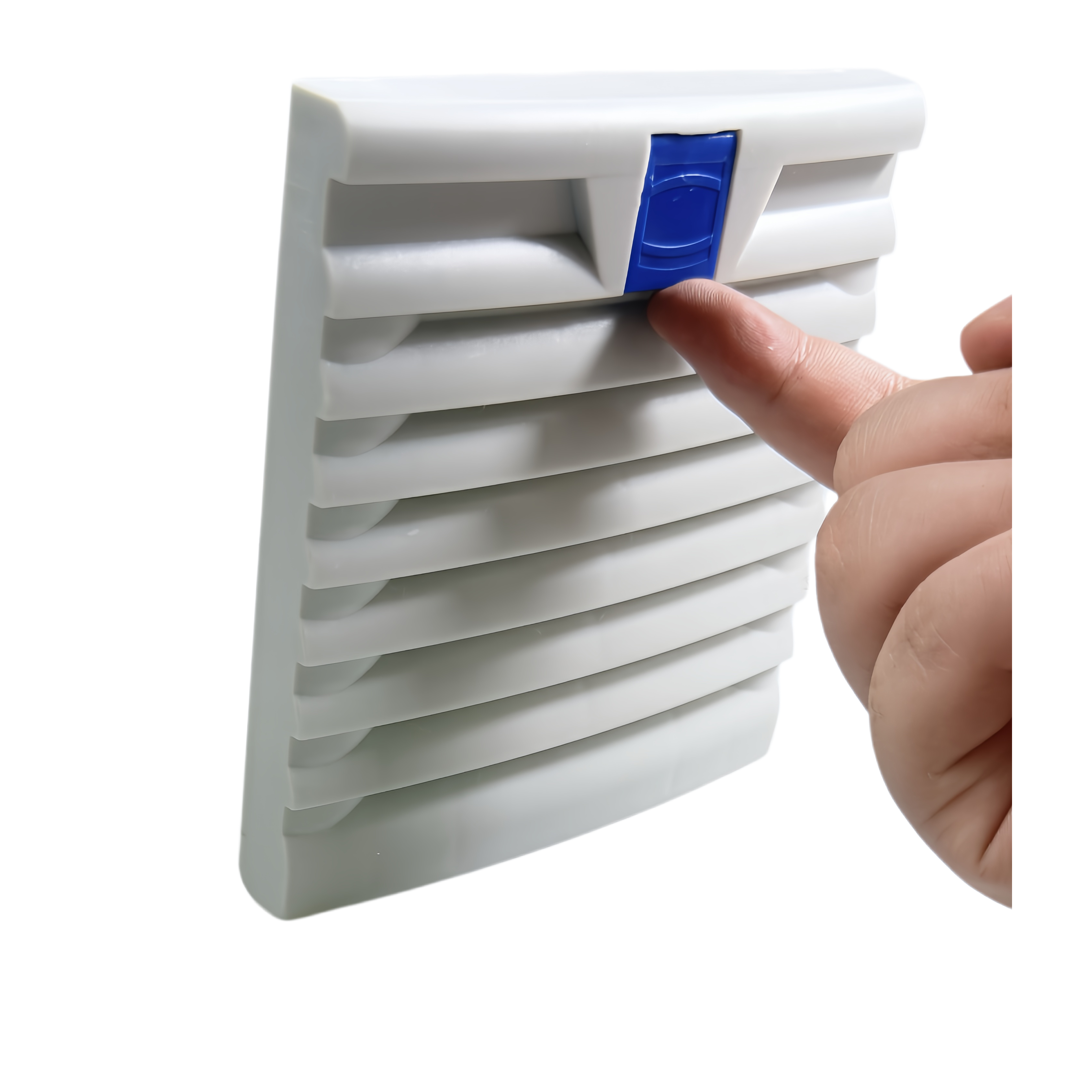

What should I check during installation? The louvered front and blue latch provide access to the filter path. Leave room for the cover to open. Check the cutout, assembled depth, mounting position and electrical supply. Disconnect power before fitting or servicing the assembly.
