SXDOOL 802EC9238-12V Enclosure Filter Fan, 92 x 92 x 38 mm, 12V DC

Be the first to review this product...

Enclosure filter fan
12V DC
92 x 92 x 38 mm
Panel-mount ventilation
Accessible filter path

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

SXDOOL Enclosure Filter Fans

802EC9238 | Louvered Front and Cover Access

Explore the 802EC9238 enclosure filter fan. See the louvered front and front-cover access before planning your cabinet ventilation.

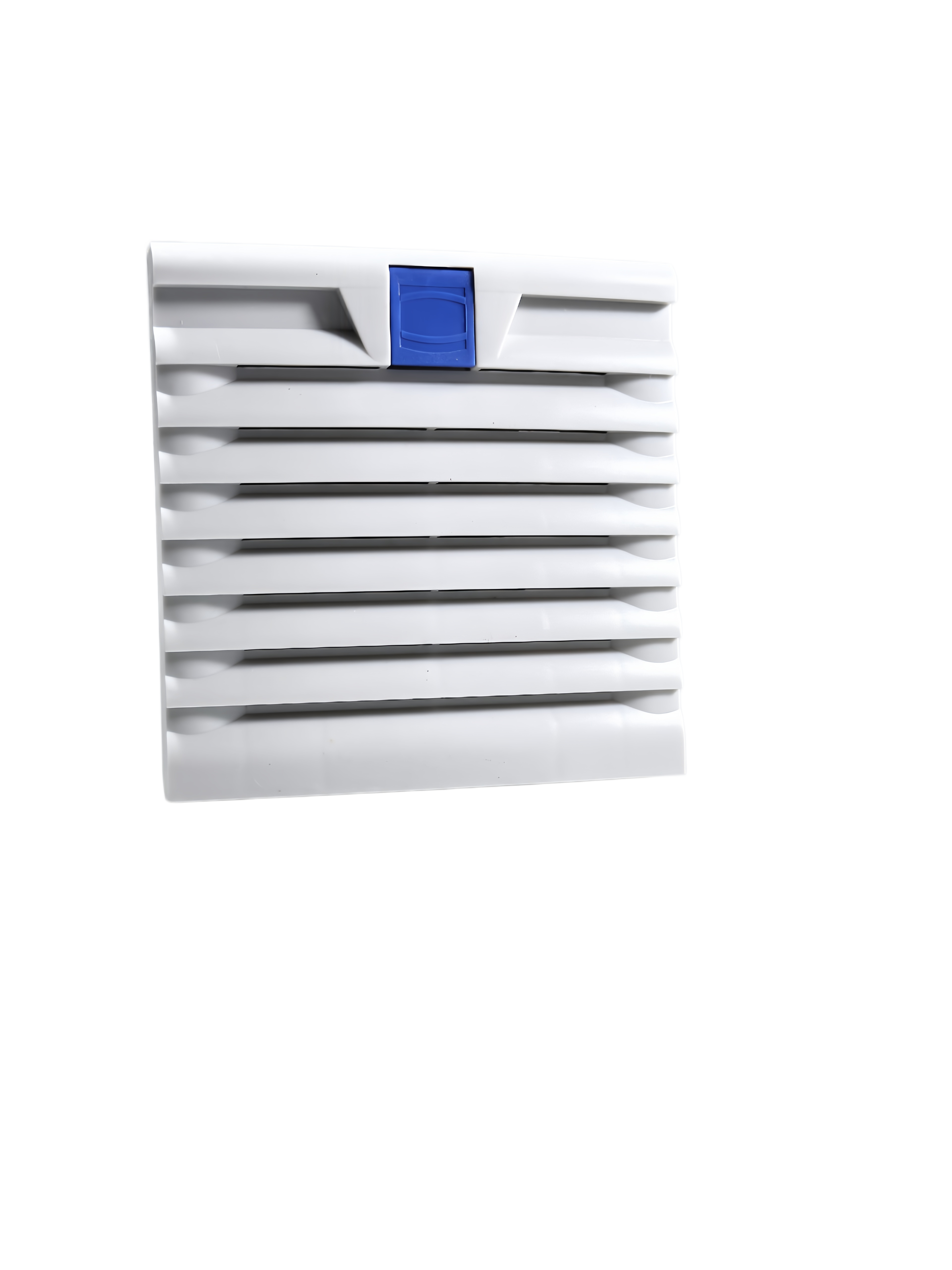

802EC9238 enclosure filter fan louvered front view

802EC9238 Louvered Front

See the Front of the Assembly

The white louvered face sits at the front of the assembly with a blue latch at the upper edge. Plan space for the complete assembly behind the panel and keep the front ventilation area clear.

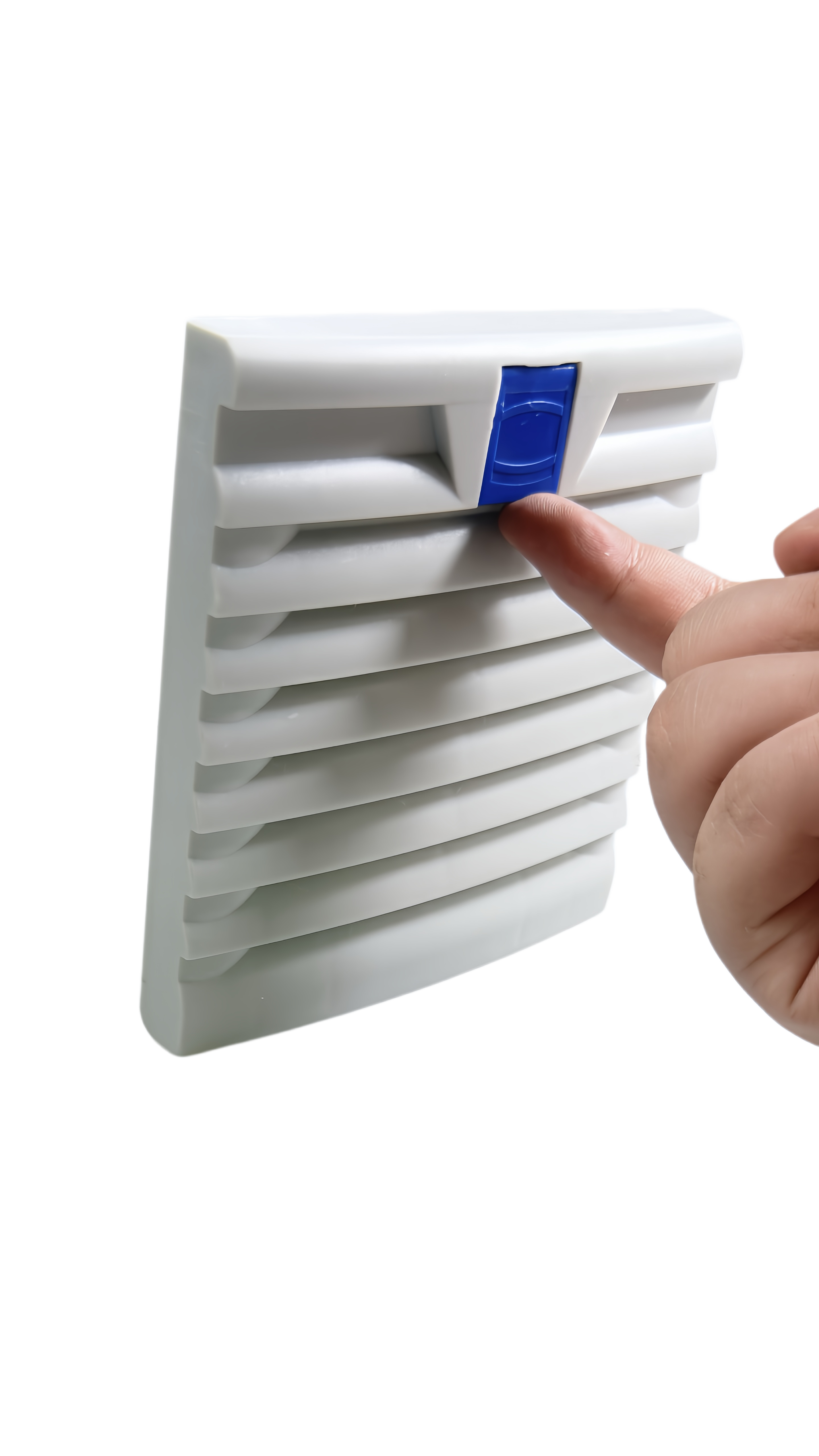

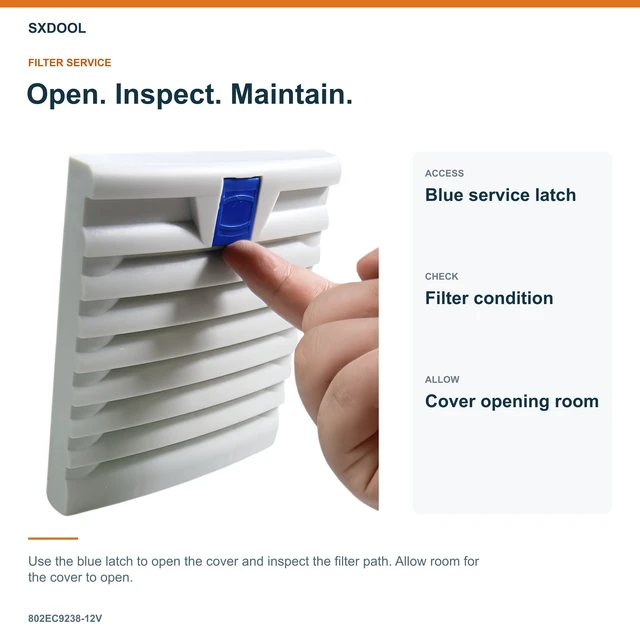

The Blue Front Latch

A Visible Front Access Point

The close view shows the blue latch being operated at the top of the louvered cover. Keep this area reachable and leave space in front of the panel for opening and routine inspection.

Check the Fit Before Installation

Plan the Opening, Wiring and Service Space

Compare the panel opening and complete assembly depth with your cabinet. Leave space for wiring and service access, and keep the intended ventilation path clear. Disconnect power before installation or maintenance.

Model Identification

Match the Complete Model Code

Model identifiers	802EC9238-AC / 802EC9238-12V / 802EC9238-24V

Which model should I select?

Use the full model code for the item you are purchasing. Match its electrical rating and wiring information to your equipment. These model codes are separate choices and are not interchangeable power options.

What should I measure before installation?

Check the panel cutout and complete assembly depth against the model-specific drawing. Verify the available space inside the enclosure. A fan frame measurement is not the panel-cutout measurement.

How should I plan access to the front cover?

Keep the blue latch reachable and leave room for the cover to open. Disconnect power before opening the assembly for inspection or maintenance.

802EC9238-12V

Enclosure Filter Fan | 92 x 92 x 38 mm | 12V DC

This enclosure filter fan combines a 92 x 92 x 38 mm fan with a louvered panel-mount assembly for control cabinet ventilation. Match the panel cutout and complete assembly depth before installation. The SXDOOL 802EC9238-12V is a 12V DC cabinet ventilation assembly for equipment builders and maintenance teams. Its 92 x 92 x 38 mm fan format and louvered panel interface support model-specific selection for industrial enclosures.

ENCLOSURE FILTER FAN - This enclosure filter fan combines a 92 x 92 x 38 mm fan with a louvered panel-mount assembly for control cabinet ventilation. Match the panel cutout and complete assembly depth before installation.

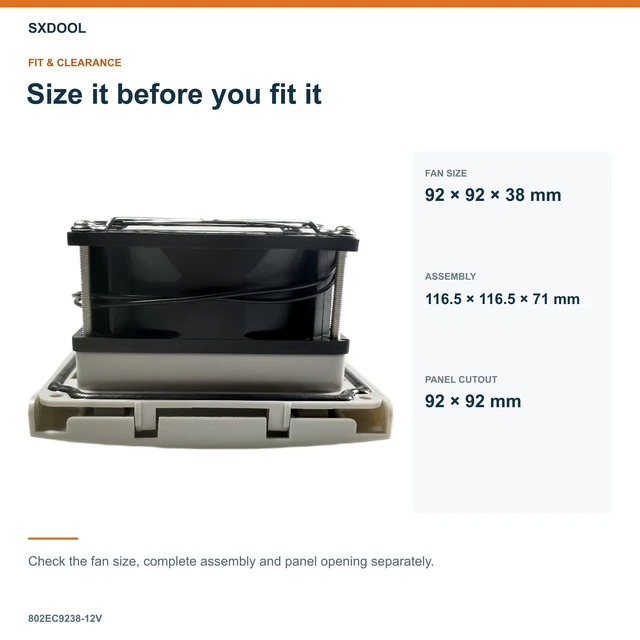

PANEL INTERFACE: Verify the 92 x 92 mm opening, 116.5 x 116.5 x 71 mm installed envelope and 92 x 92 x 38 mm fan format before ordering replacements.

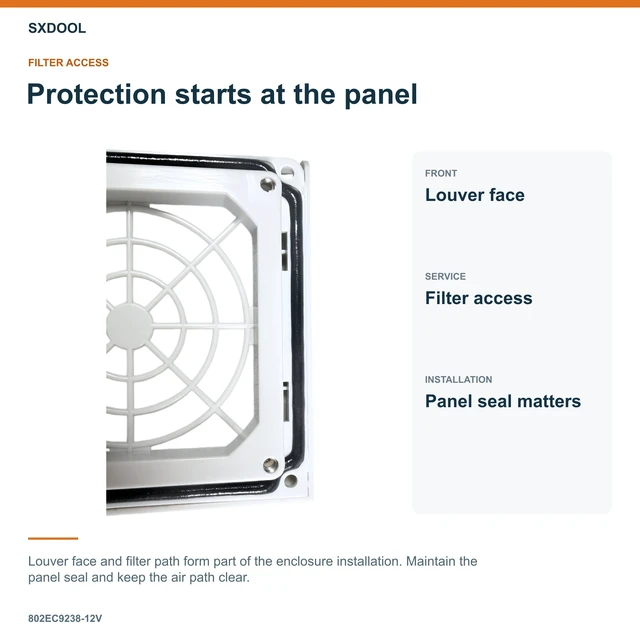

SERVICE PLANNING: The front latch provides access to the filter path. Reserve front clearance for inspection and routine maintenance.

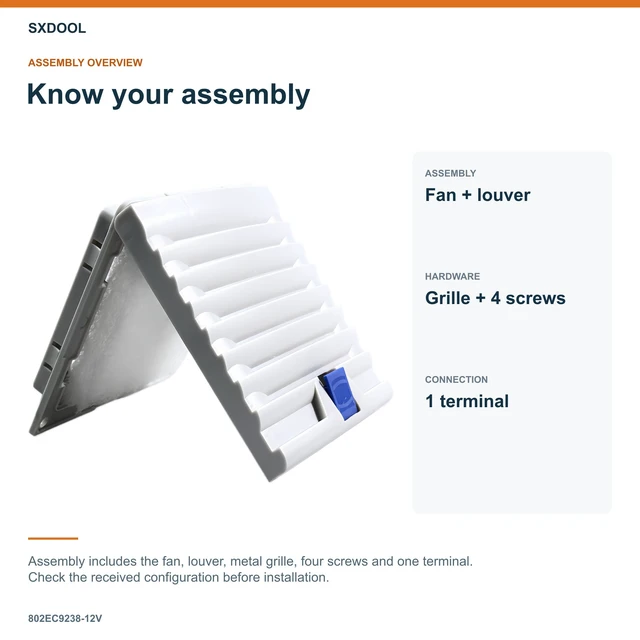

ONE ASSEMBLY PER UNIT: Supplied with one louvered fan assembly with fan and metal grille, four mounting screws and one wiring terminal; the listed quantity is one kit.

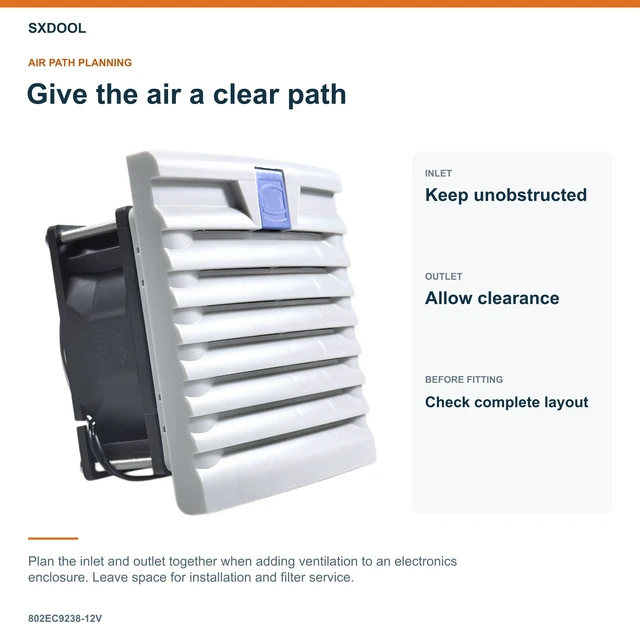

INTEGRATION CHECK: Confirm mounting, wiring and enclosure airflow requirements against the equipment design before putting the fan into service.

Enclosure fan dimensions and panel fit

Compare the exact model, mounting position and input supply with your equipment before installation.

Model: 802EC9238-12V
Fan frame: 92 x 92 x 38 mm
Electrical input: 12V DC
Panel cutout: 92 x 92 mm
Complete assembly: 116.5 x 116.5 x 71 mm

Cabinet cooling fan filter access

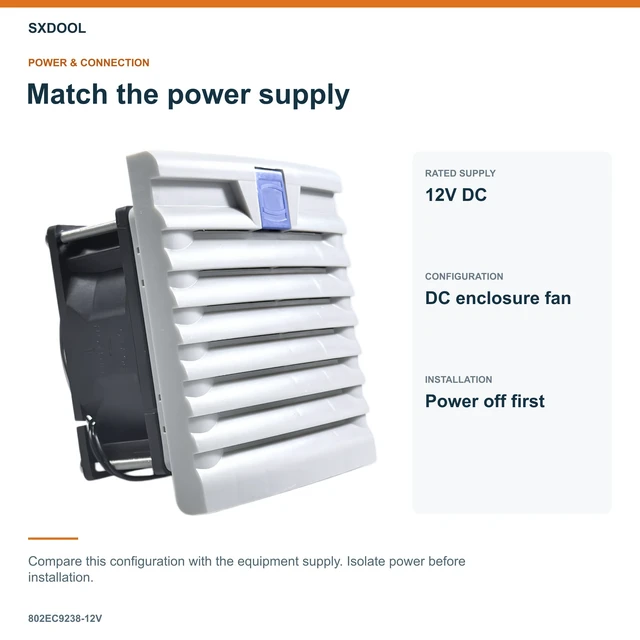

Supply for this exact model: 12V DC. Match the product label and equipment wiring.

Receiving checklist

One kit contains one louvered fan assembly with fan and metal grille, four mounting screws and one wiring terminal.

Before installation

What power supply should I use? Use 12V DC for 802EC9238-12V. Check the fan label and equipment wiring before connection.

What clearance should I allow? Use 802EC9238-12V as the procurement reference for the 12V DC configuration.

What should I check during installation? The louvered front and blue latch provide access to the filter path. Leave room for the cover to open. Check the cutout, assembled depth, mounting position and electrical supply. Disconnect power before fitting or servicing the assembly.
