SXDOOL Enclosure Filter Fans
801EC8038 | Louvered Front and Cover Access
Explore the 801EC8038 enclosure filter fan. See the louvered front and front-cover access before planning your cabinet ventilation.
801EC8038 Louvered Front
See the Front of the Assembly

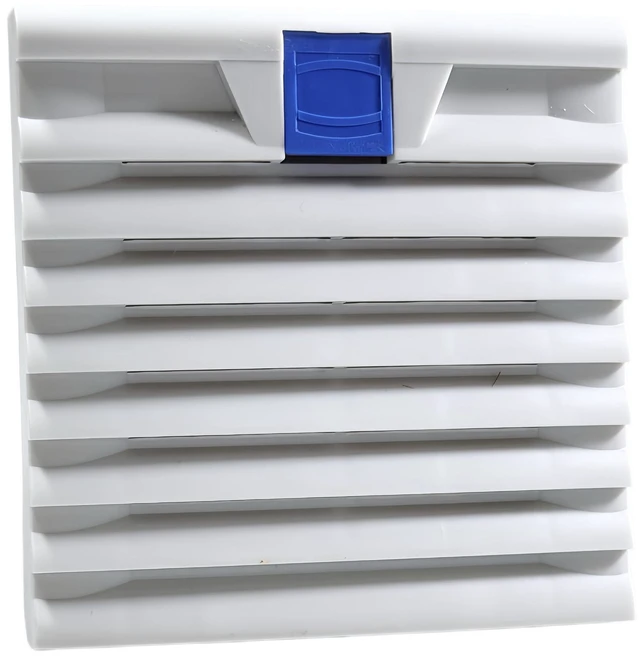

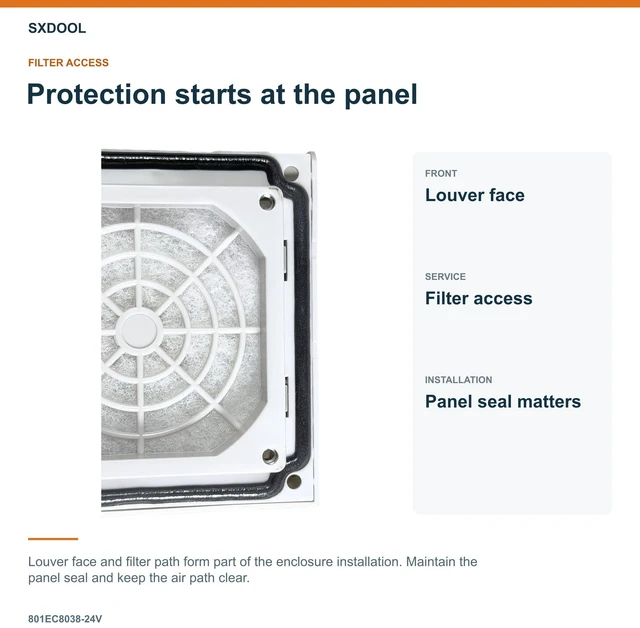

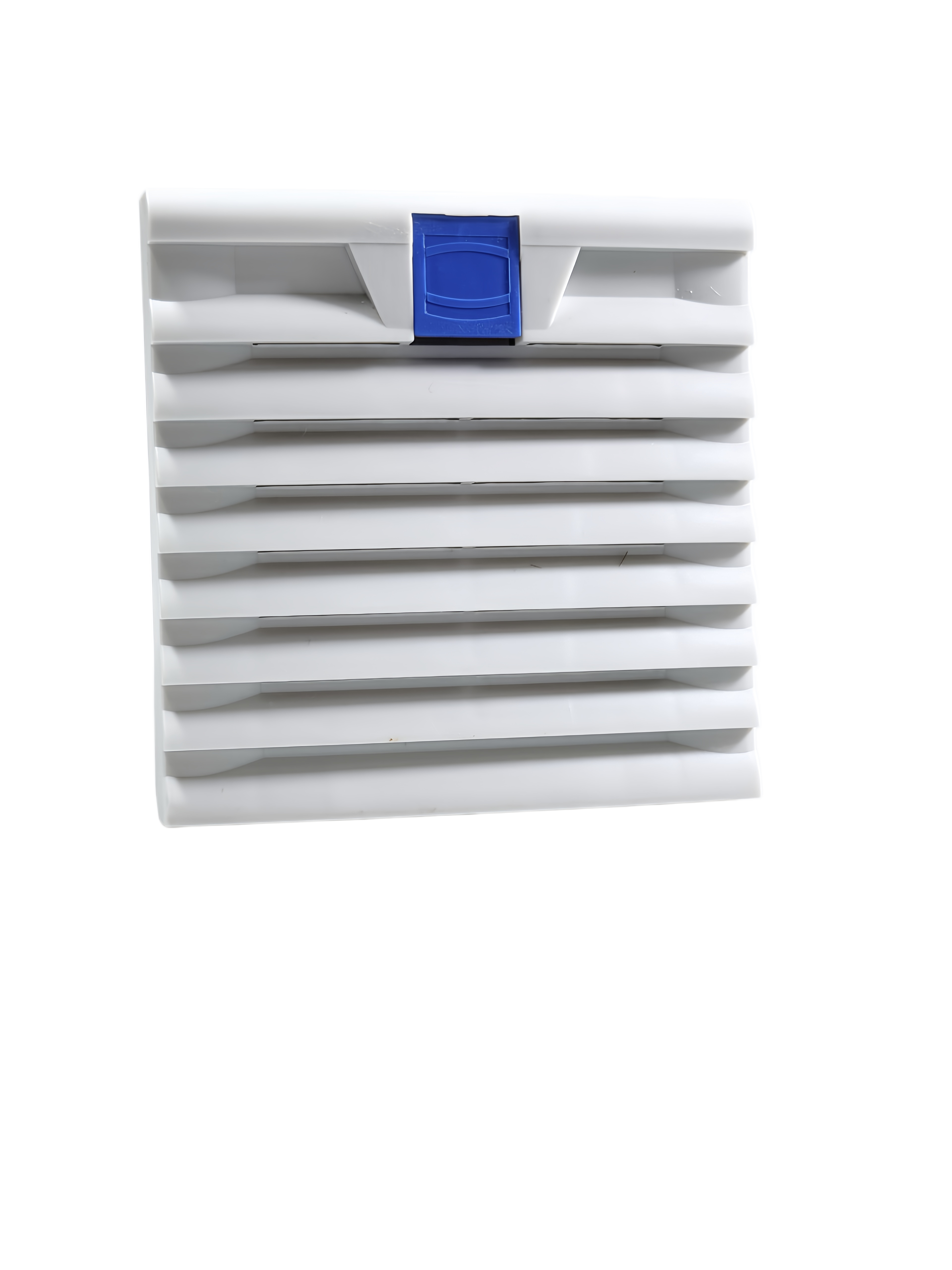

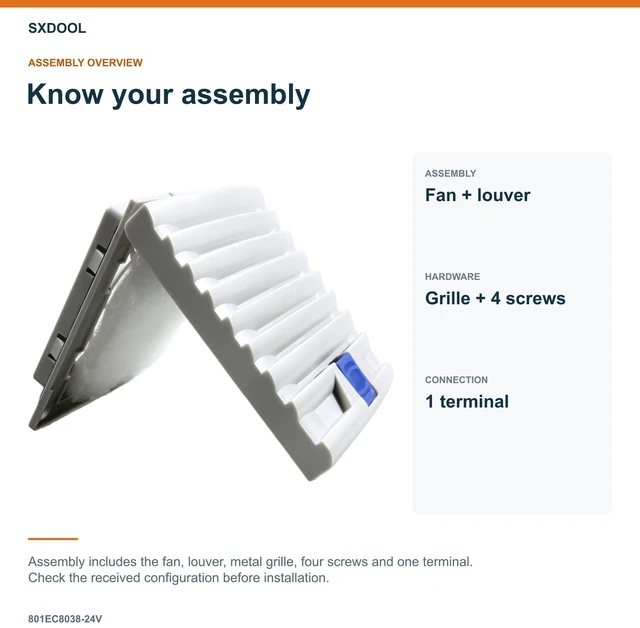

The white louvered face sits at the front of the assembly with a blue latch at the upper edge. Plan space for the complete assembly behind the panel and keep the front ventilation area clear.
The Blue Front Latch
A Visible Front Access Point

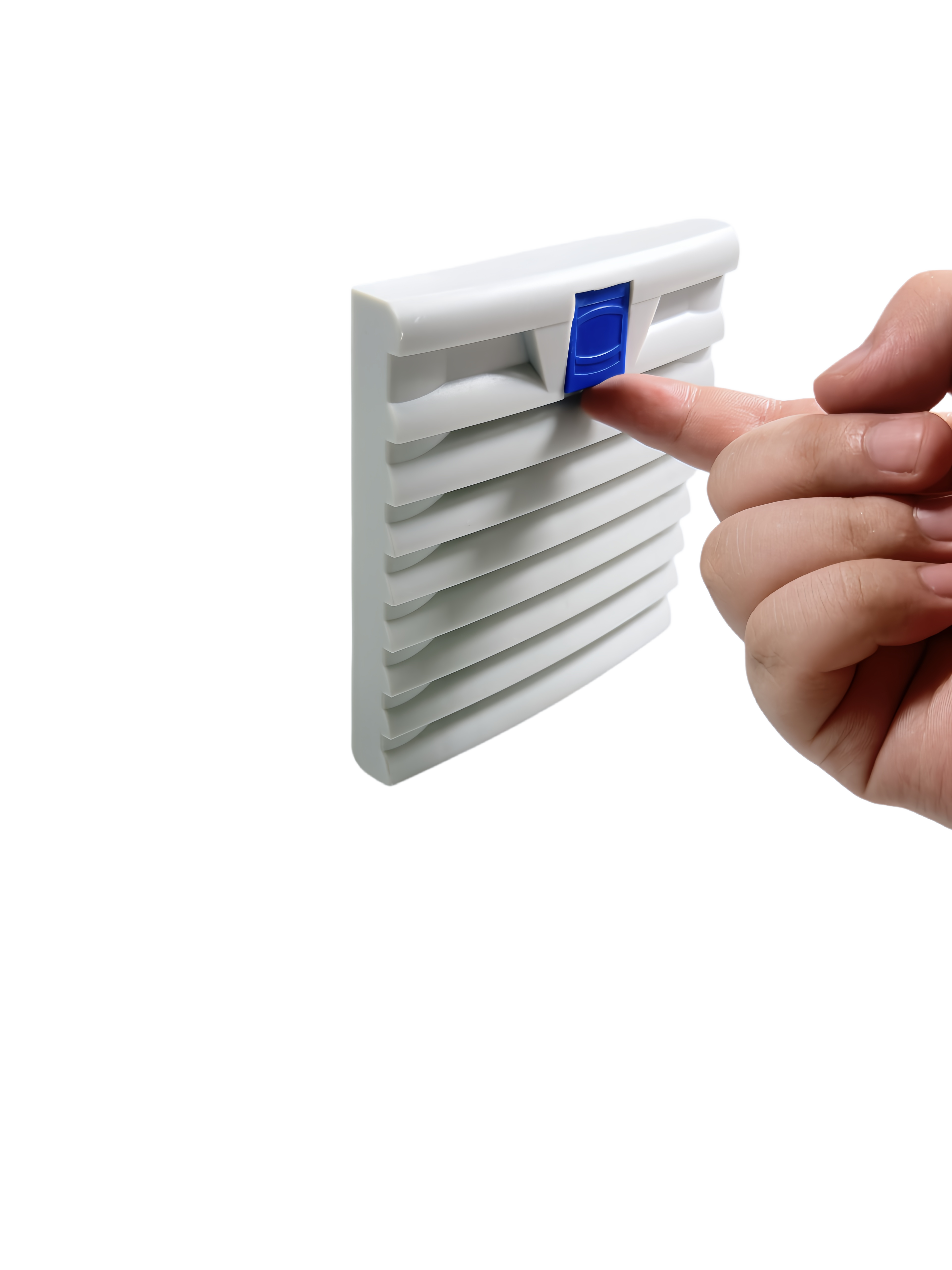

The close view shows the blue latch being operated at the top of the louvered cover. Keep this area reachable and leave space in front of the panel for opening and routine inspection.
Check the Fit Before Installation
Plan the Opening, Wiring and Service Space

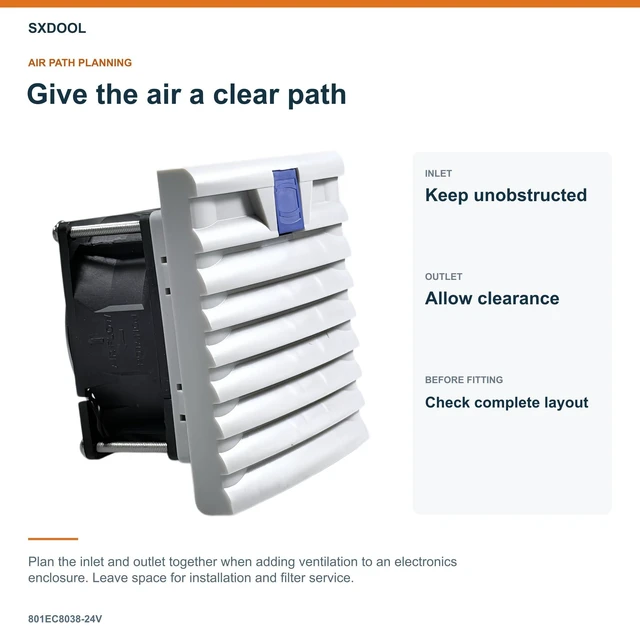

Compare the panel opening and complete assembly depth with your cabinet. Leave space for wiring and service access, and keep the intended ventilation path clear. Disconnect power before installation or maintenance.
Model Identification
Match the Complete Model Code
|
Model identifiers |
801EC8038-AC / 801EC8038-12V / 801EC8038-24V |
|---|
Which model should I select?

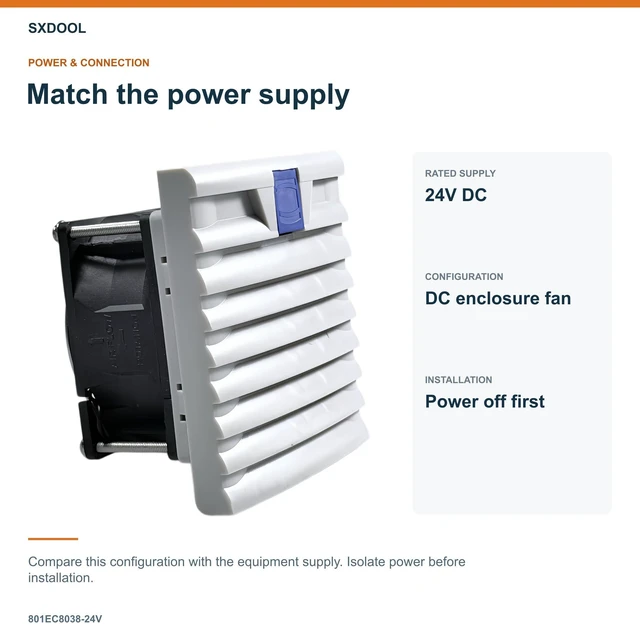

Use the full model code for the item you are purchasing. Match its electrical rating and wiring information to your equipment. These model codes are separate choices and are not interchangeable power options.
What should I measure before installation?

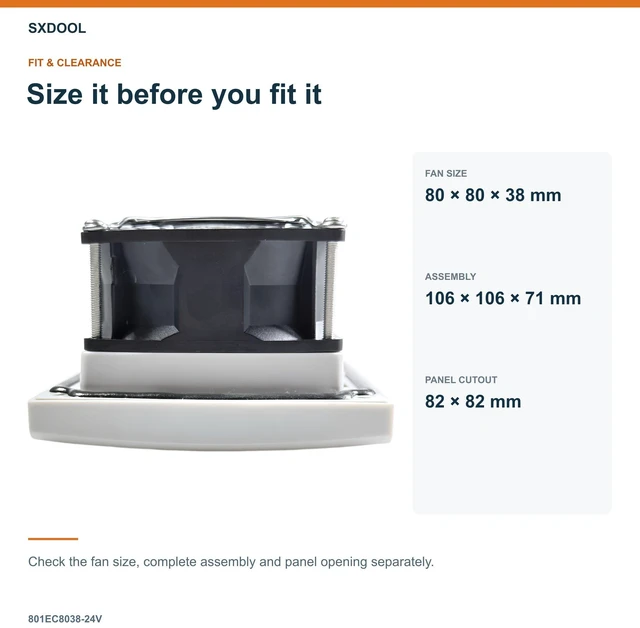

Check the panel cutout and complete assembly depth against the model-specific drawing. Verify the available space inside the enclosure. A fan frame measurement is not the panel-cutout measurement.
How should I plan access to the front cover?

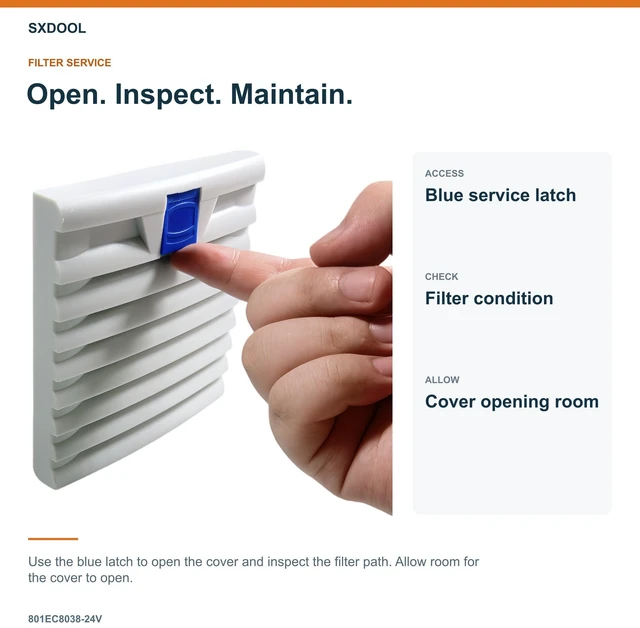

Keep the blue latch reachable and leave room for the cover to open. Disconnect power before opening the assembly for inspection or maintenance.
