SXDOOL Enclosure Filter Fans
804EC17251 | Louvered Front and Cover Access
Explore the 804EC17251 enclosure filter fan. See the louvered front and front-cover access before planning your cabinet ventilation.
804EC17251 Louvered Front
See the Front of the Assembly

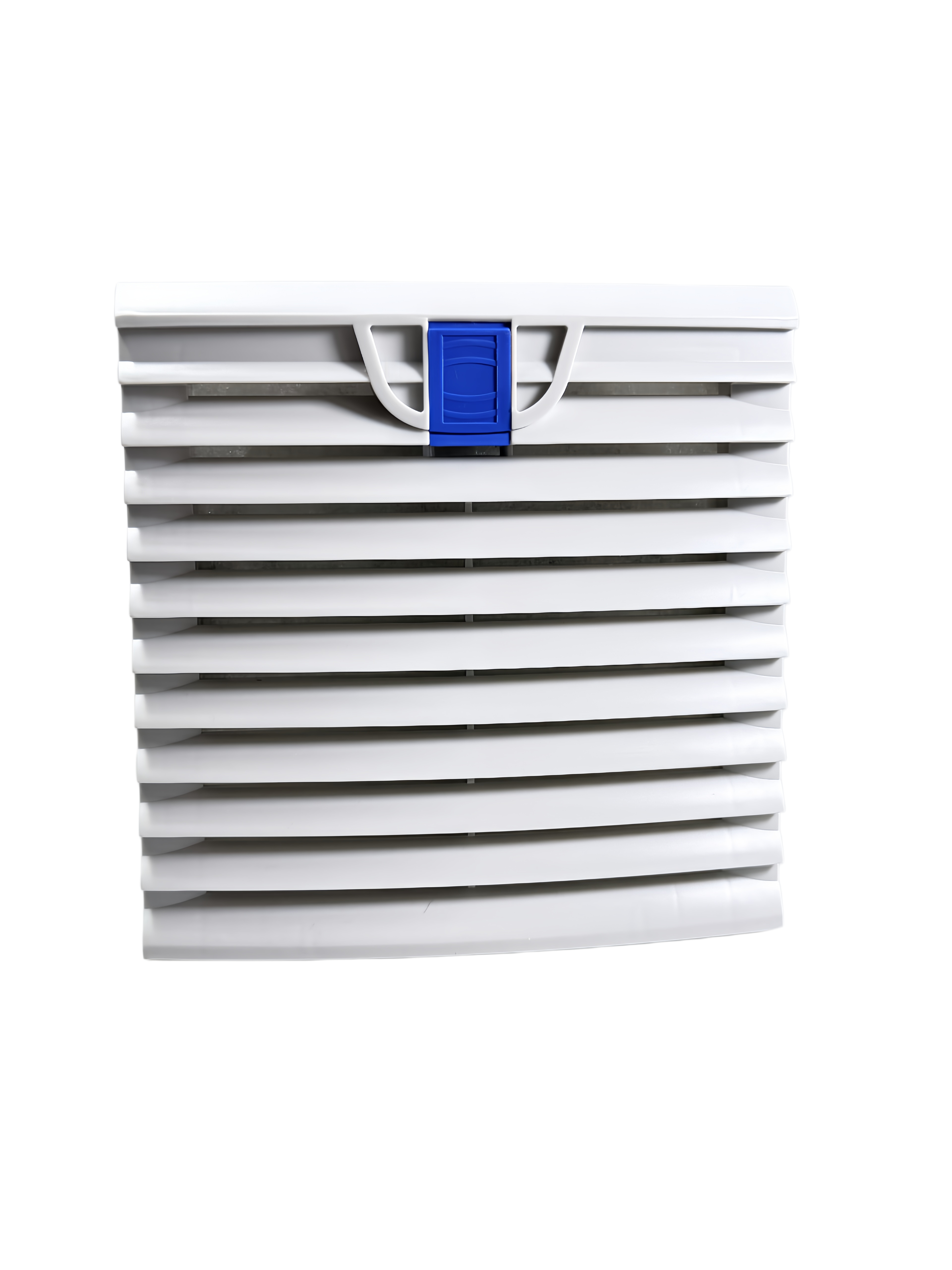

The white louvered face sits at the front of the assembly with a blue latch at the upper edge. Plan space for the complete assembly behind the panel and keep the front ventilation area clear.
The Blue Front Latch
A Visible Front Access Point

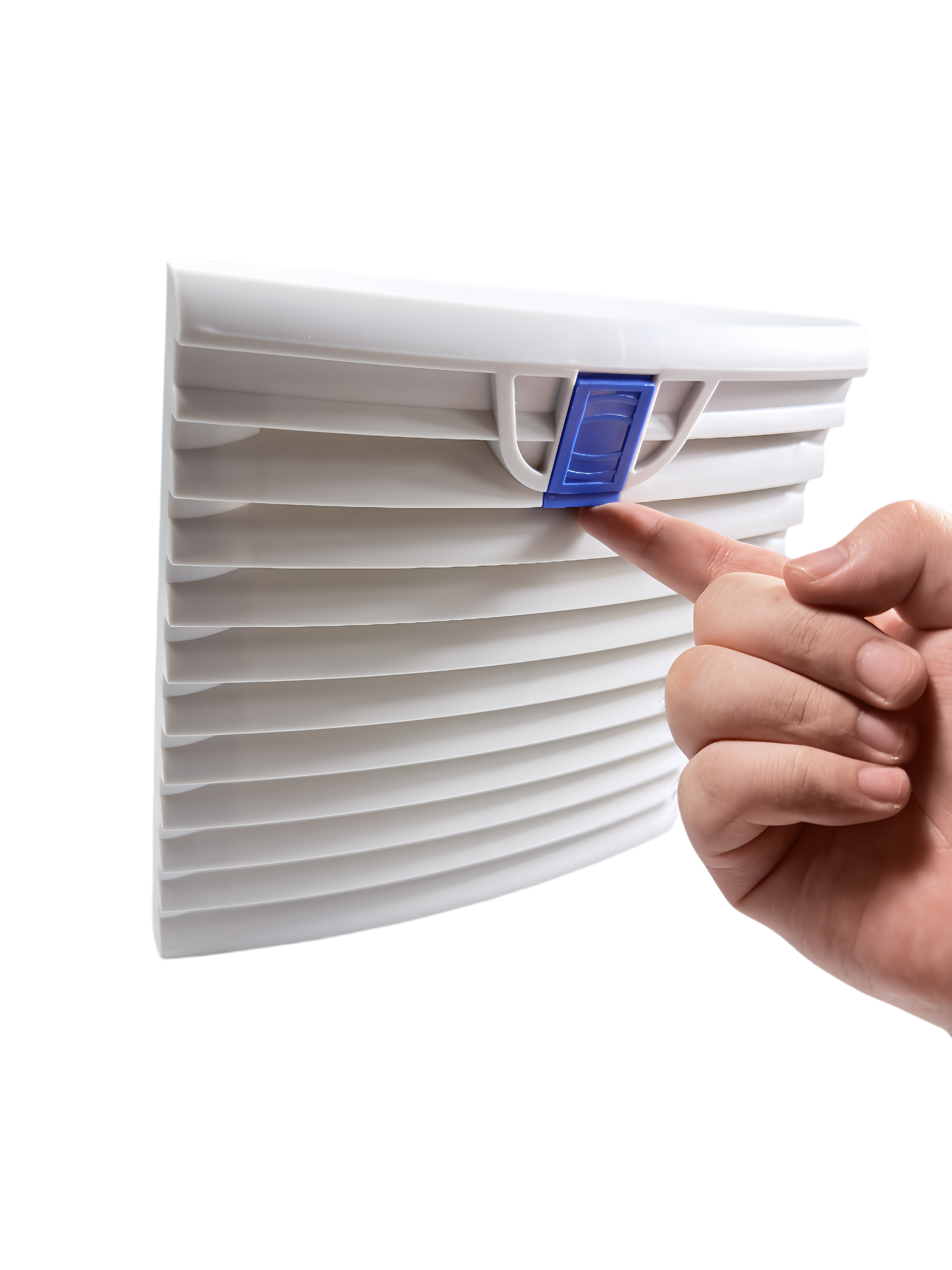

The close view shows the blue latch being operated at the top of the louvered cover. Keep this area reachable and leave space in front of the panel for opening and routine inspection.
Check the Fit Before Installation
Plan the Opening, Wiring and Service Space

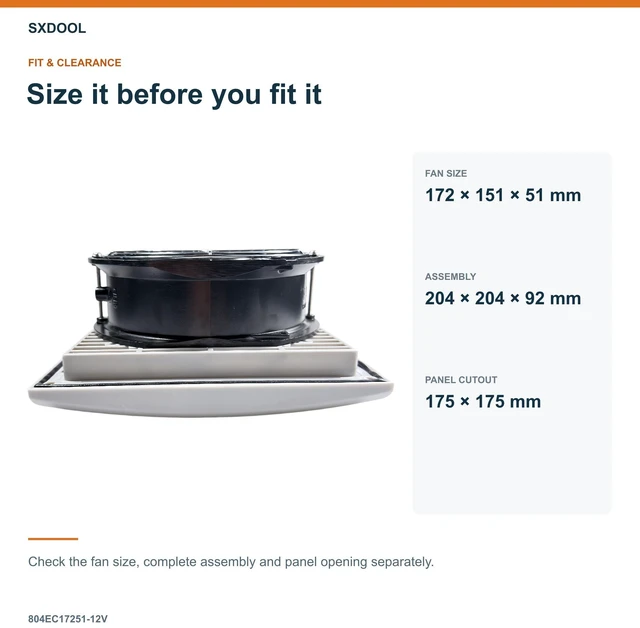

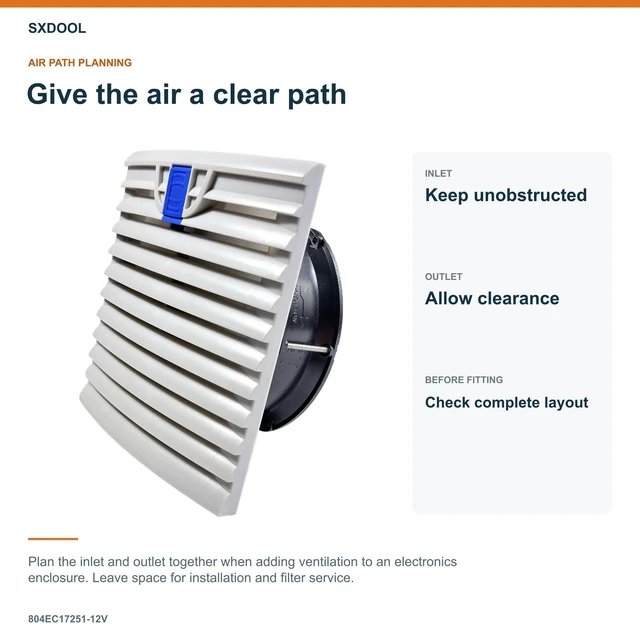

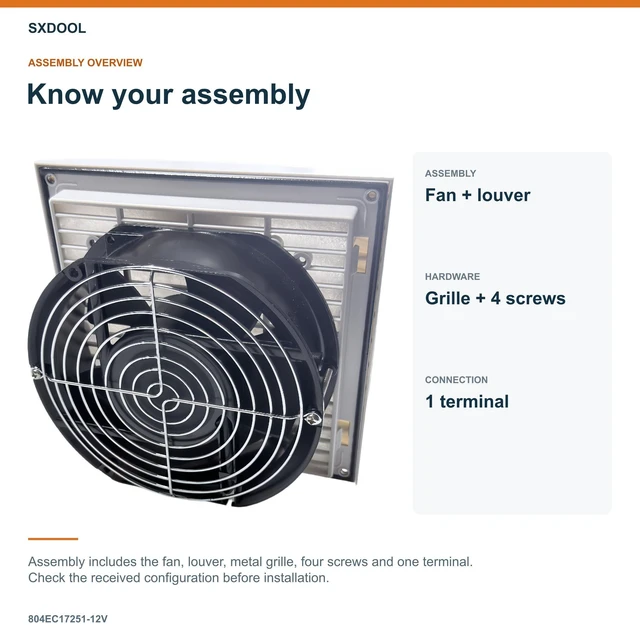

Compare the panel opening and complete assembly depth with your cabinet. Leave space for wiring and service access, and keep the intended ventilation path clear. Disconnect power before installation or maintenance.
Model Identification
Match the Complete Model Code
|
Model identifiers |
804EC17251-12V / 804EC17251-24V |
|---|
Which model should I select?

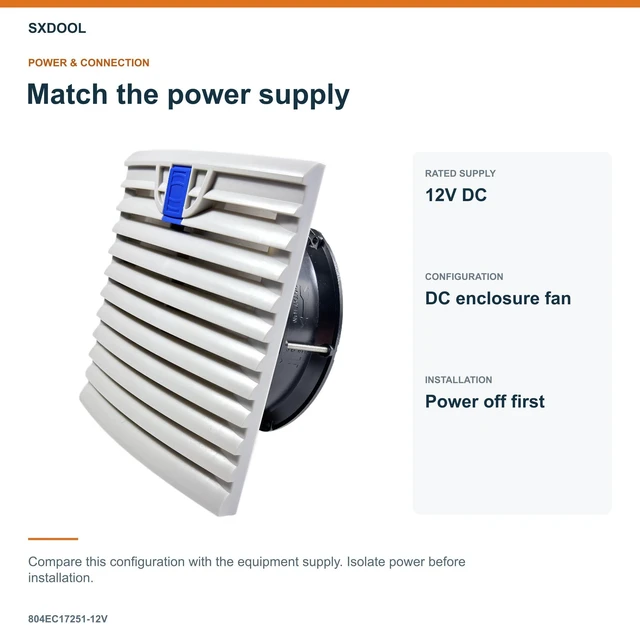

Use the full model code for the item you are purchasing. Match its electrical rating and wiring information to your equipment. These model codes are separate choices and are not interchangeable power options.
Is the fan frame size the same as the panel cutout?
Treat the fan frame, complete assembly and panel cutout as separate measurements. Verify the model-specific drawing before cutting or modifying a panel.
What should I consider for maintenance access?

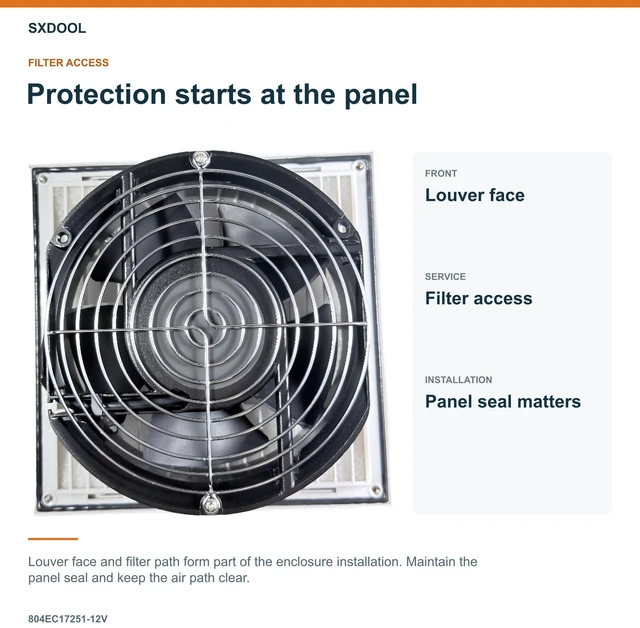

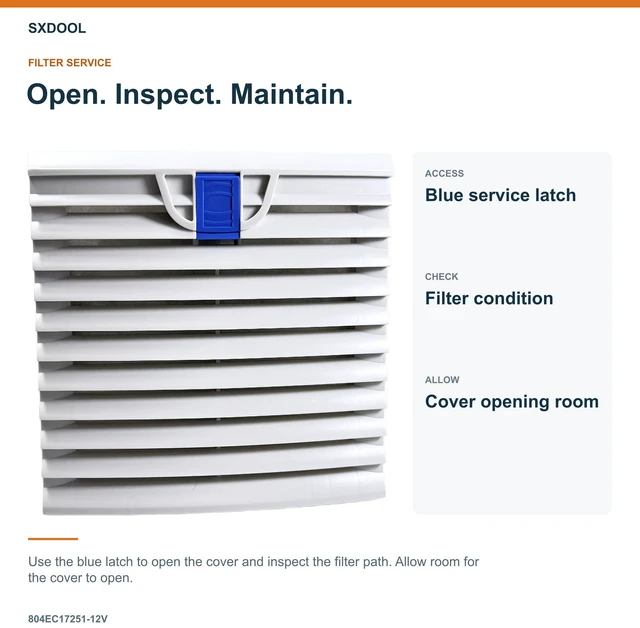

Keep the blue latch reachable and leave room for the cover to open. Leave access to the rear wiring. Follow the product maintenance instructions and disconnect power before servicing.
