SXDOOL 804EC17251-24V Enclosure Filter Fan, 172 x 151 x 51 mm, 24V DC

804EC17251-24V

Enclosure Filter Fan | 172 x 151 x 51 mm | 24V DC

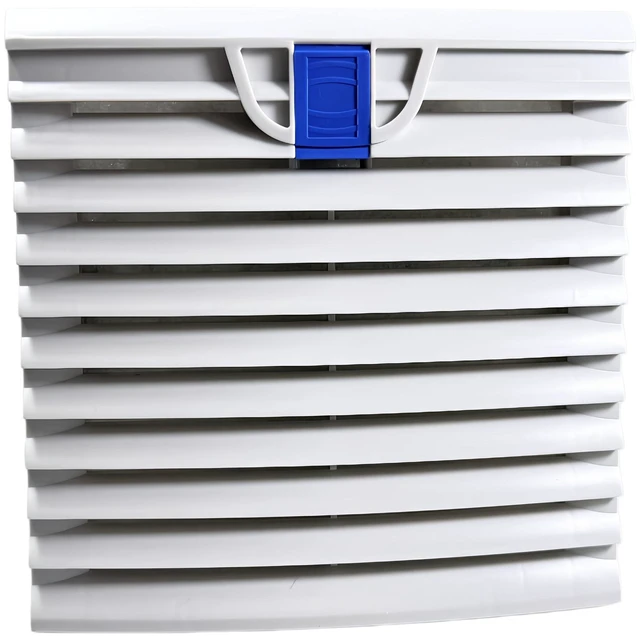

This enclosure filter fan combines a 172 x 151 x 51 mm fan with a louvered panel-mount assembly for control cabinet ventilation. Match the panel cutout and complete assembly depth before installation. The SXDOOL 804EC17251-24V is a 24V DC cabinet ventilation assembly for equipment builders and maintenance teams. Its 172 x 151 x 51 mm fan format and louvered panel interface support model-specific selection for industrial enclosures.

• ENCLOSURE FILTER FAN - This enclosure filter fan combines a 172 x 151 x 51 mm fan with a louvered panel-mount assembly for control cabinet ventilation. Match the panel cutout and complete assembly depth before installation.
• PANEL INTERFACE: Verify the 175 x 175 mm opening, 204 x 204 x 92 mm installed envelope and 172 x 151 x 51 mm fan format before ordering replacements.

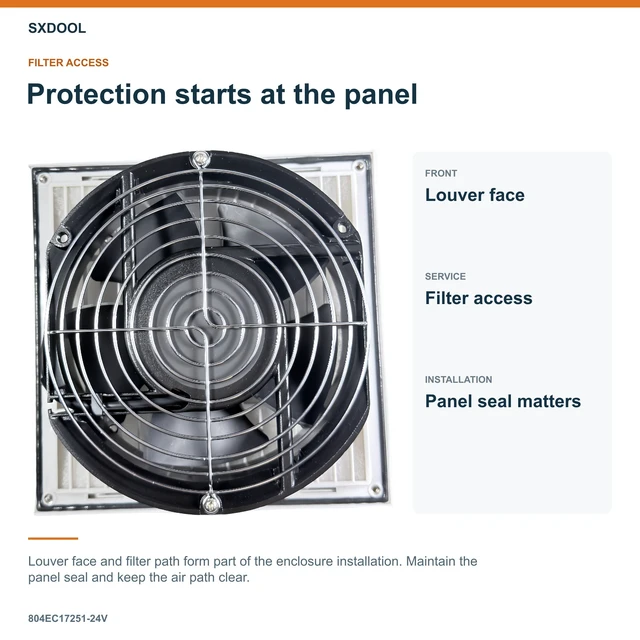

• SERVICE PLANNING: The front latch provides access to the filter path. Reserve front clearance for inspection and routine maintenance.
• ONE ASSEMBLY PER UNIT: Supplied with one louvered fan assembly with fan and metal grille, four mounting screws and one wiring terminal; the listed quantity is one kit.

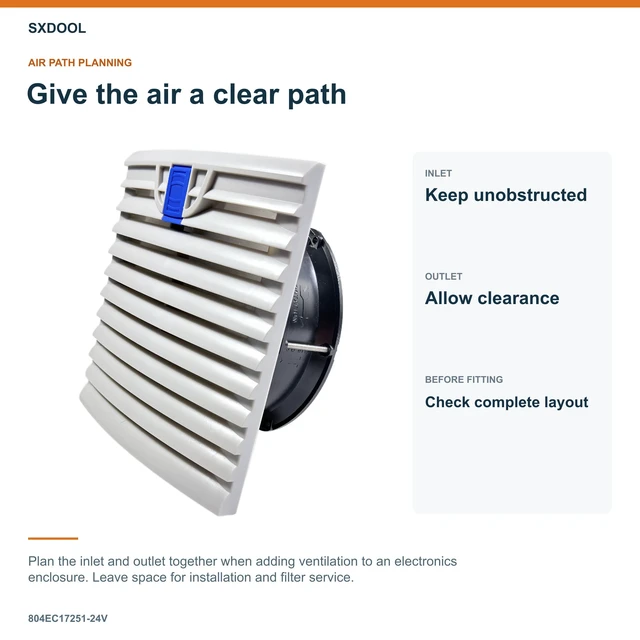

• INTEGRATION CHECK: Confirm mounting, wiring and enclosure airflow requirements against the equipment design before putting the fan into service.

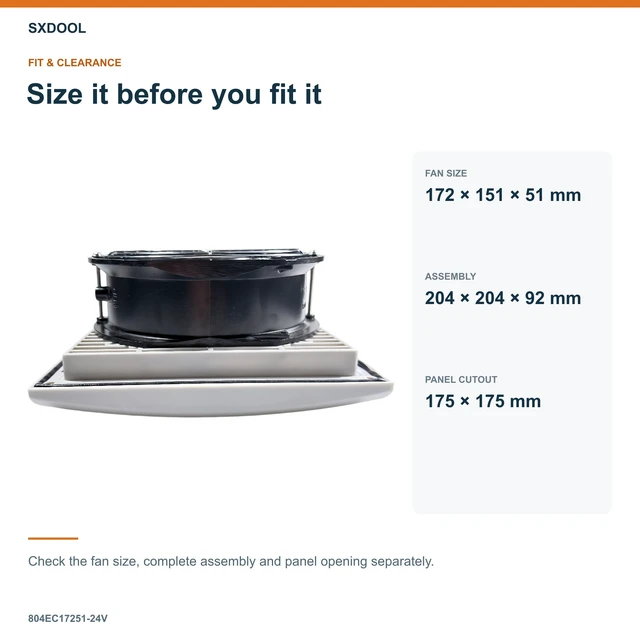

Enclosure fan dimensions and panel fit

Compare the exact model, mounting position and input supply with your equipment before installation.

• Model: 804EC17251-24V
• Fan frame: 172 x 151 x 51 mm
• Electrical input: 24V DC
• Panel cutout: 175 x 175 mm
• Complete assembly: 204 x 204 x 92 mm

Cabinet cooling fan filter access

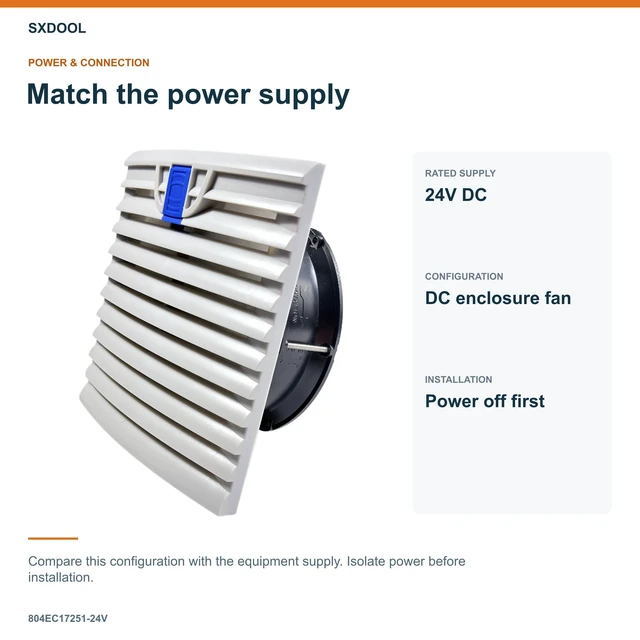

Supply for this exact model: 24V DC. Match the product label and equipment wiring.

Receiving checklist

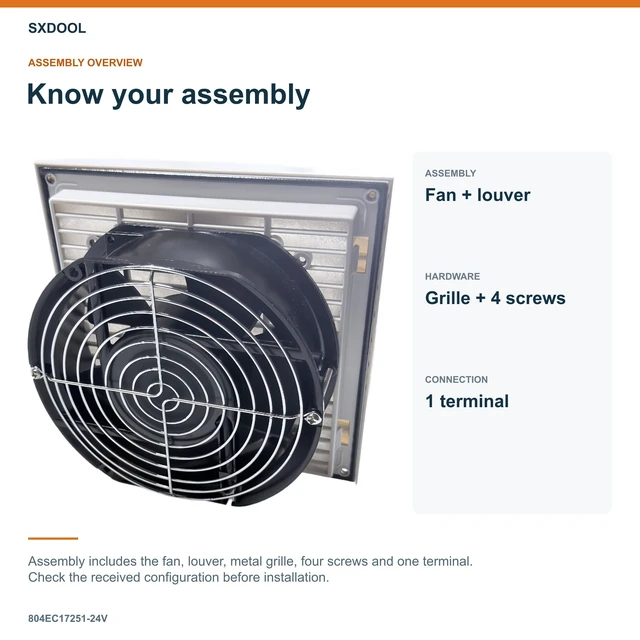

One kit contains one louvered fan assembly with fan and metal grille, four mounting screws and one wiring terminal.

Before installation

What power supply should I use? Use 24V DC for 804EC17251-24V. Check the fan label and equipment wiring before connection.

What clearance should I allow? Use 804EC17251-24V as the procurement reference for the 24V DC configuration.

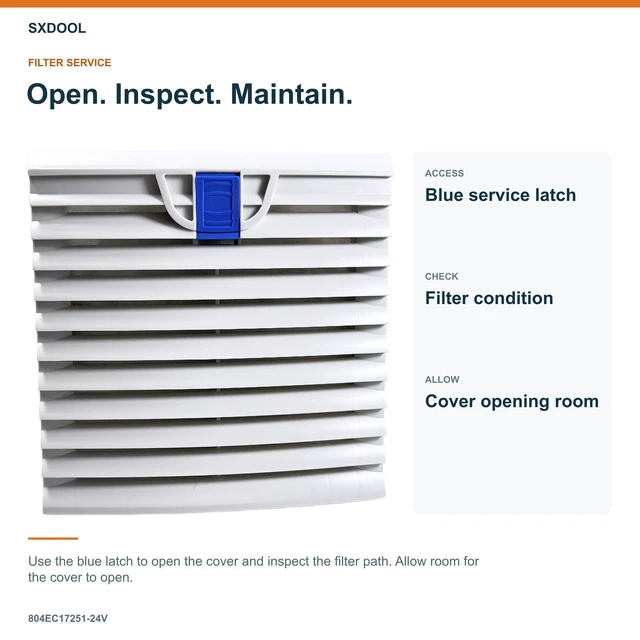

What should I check during installation? The louvered front and blue latch provide access to the filter path. Leave room for the cover to open. Check the cutout, assembled depth, mounting position and electrical supply. Disconnect power before fitting or servicing the assembly.
